Power Supply and Ground Circuit Inspection

COMBINATION METERS


Power Supply and Ground Circuit Inspection

1.CHECK FUSE

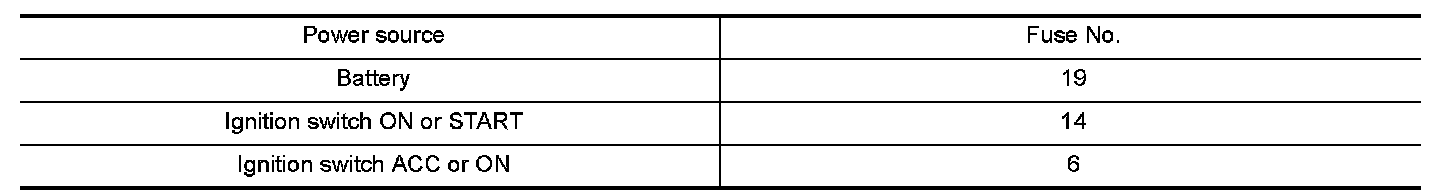

Check for blown combination meter fuses.






OK or NG
OK - GO TO 2.
NG - Be sure to eliminate cause of malfunction before installing new fuse. Description and Operation.
2.CHECK POWER SUPPLY CIRCUIT

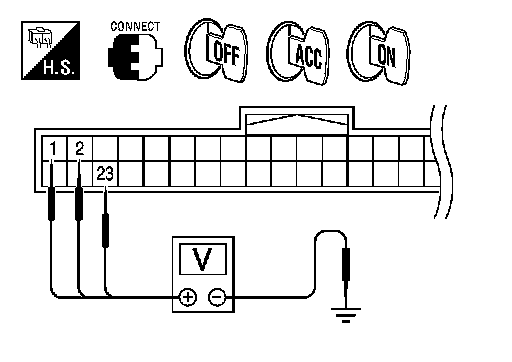

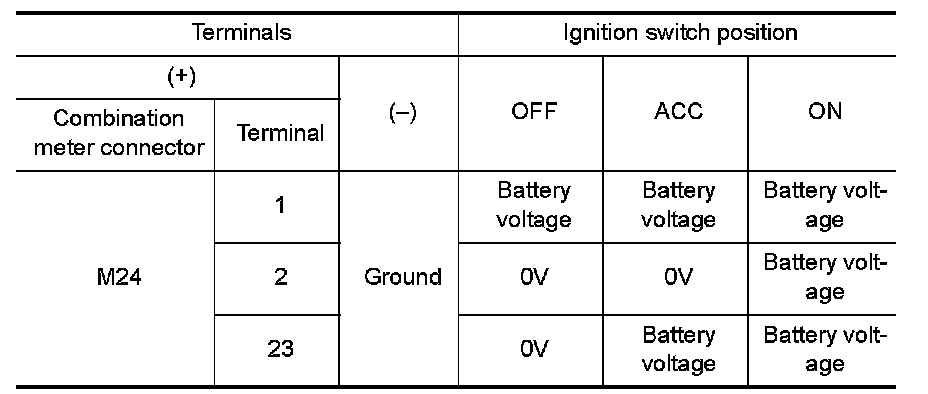

Check voltage between combination meter harness connector terminals and ground.






OK or NG
OK - GO TO 3.
NG - Repair harness or connector.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.

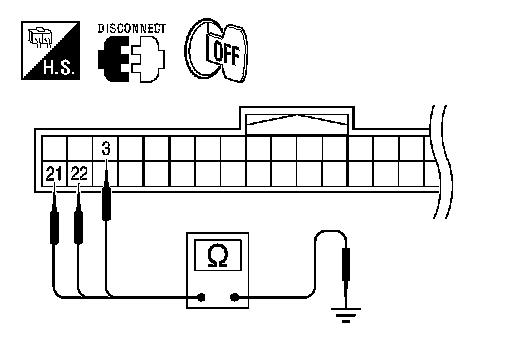

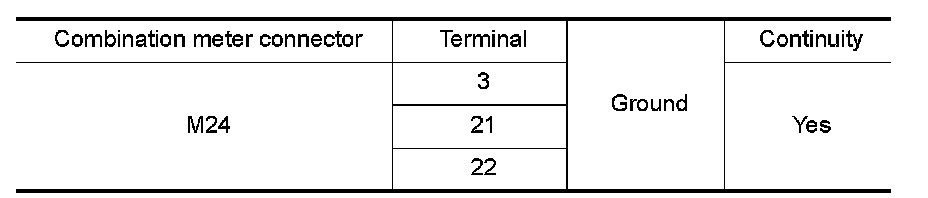

3. Check continuity between combination meter harness connector terminals and ground.






OK or NG
OK - Replace combination meter. Removal And Installation, "Removal
and Installation".
NG - Repair harness or connector.
