Transmission Range Switch System Inspection

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS


Transmission Range Switch System Inspection

INSPECTION PROCEDURE
1.SELF-DIAGNOSIS RESULT CHECK

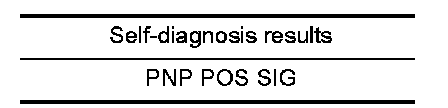

Check the self-diagnosis results.






Is the above displayed in the self-diagnosis display items?
YES - GO TO 2.
NO - Inspection End.
2.CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit (control unit) and brake fluid level switch connectors.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
OK - GO TO 3.
NG - Repair or replace as necessary.
3.CHECK TRANSMISSION RANGE SWITCH
Perform transmission range switch inspection. P0705.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Removal And Installation VDC/TCS/ABS.
NO - Repair or replace malfunctioning components.
