Initial Inspection and Diagnostic Overview

AUDIO


Trouble Diagnosis

The majority of the audio troubles are the result of outside causes (bad CD, electromagnetic interference, etc.). Check the inspection items below to diagnose the malfunction.

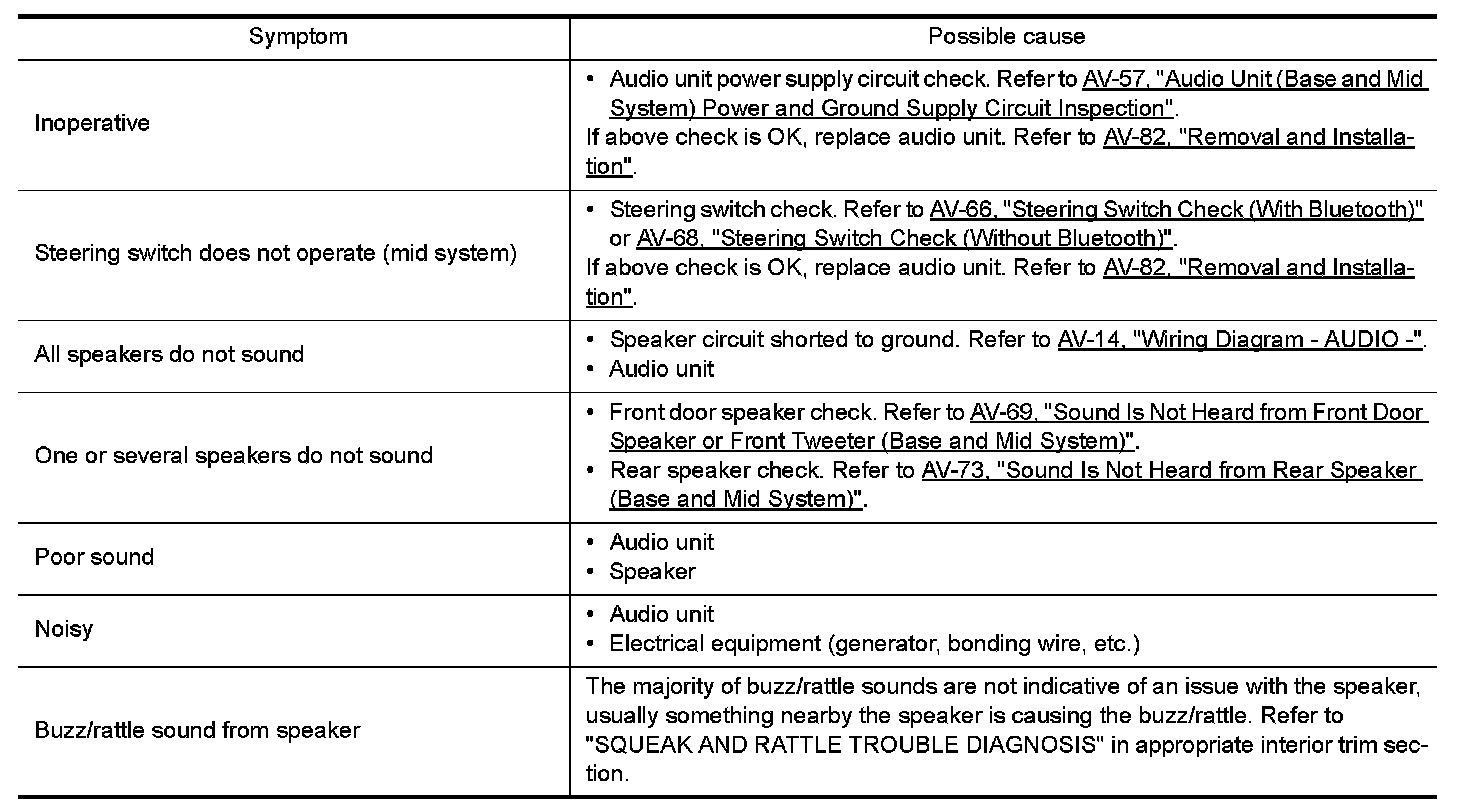

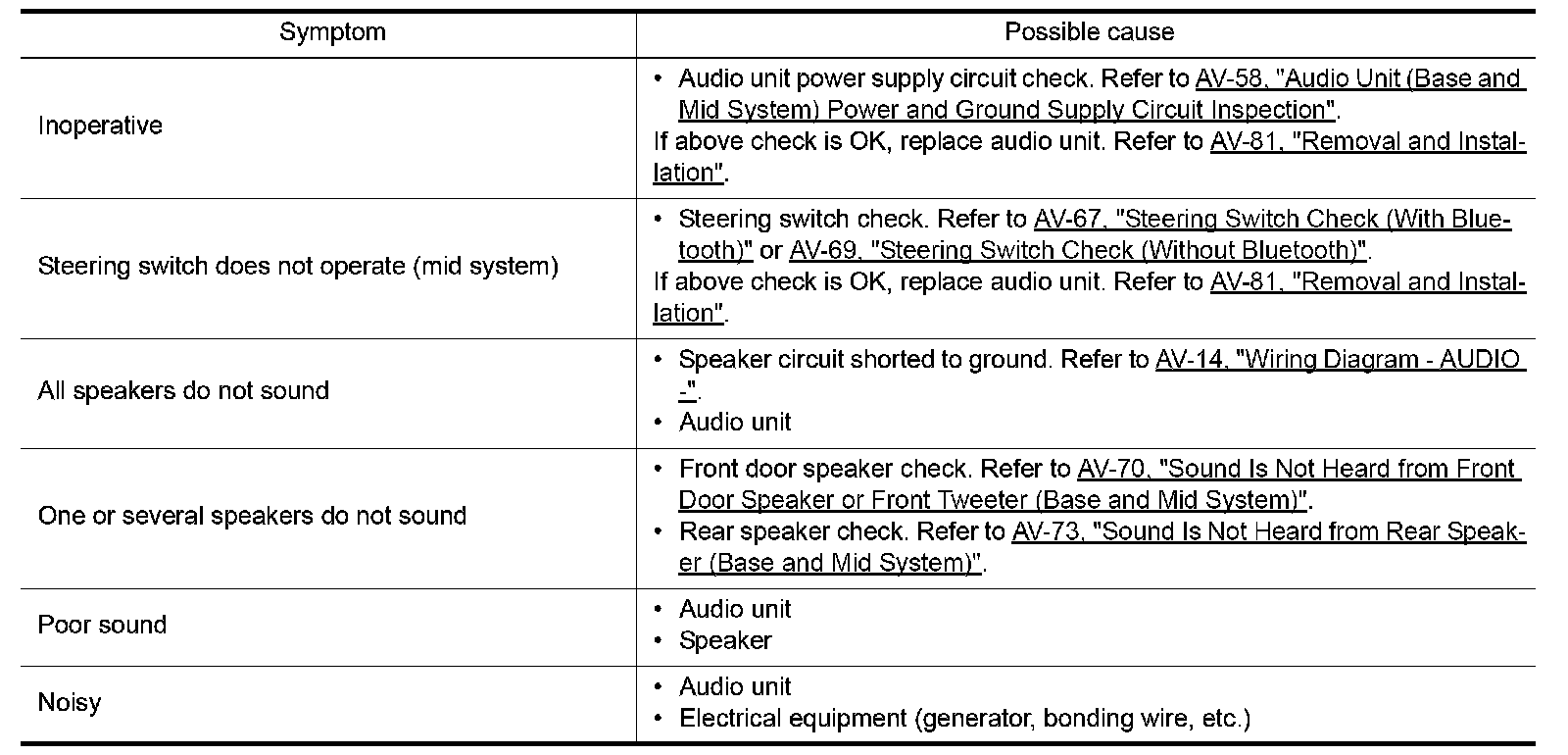

MALFUNCTION WITH RADIO AND CD (BASE AND MID SYSTEM)

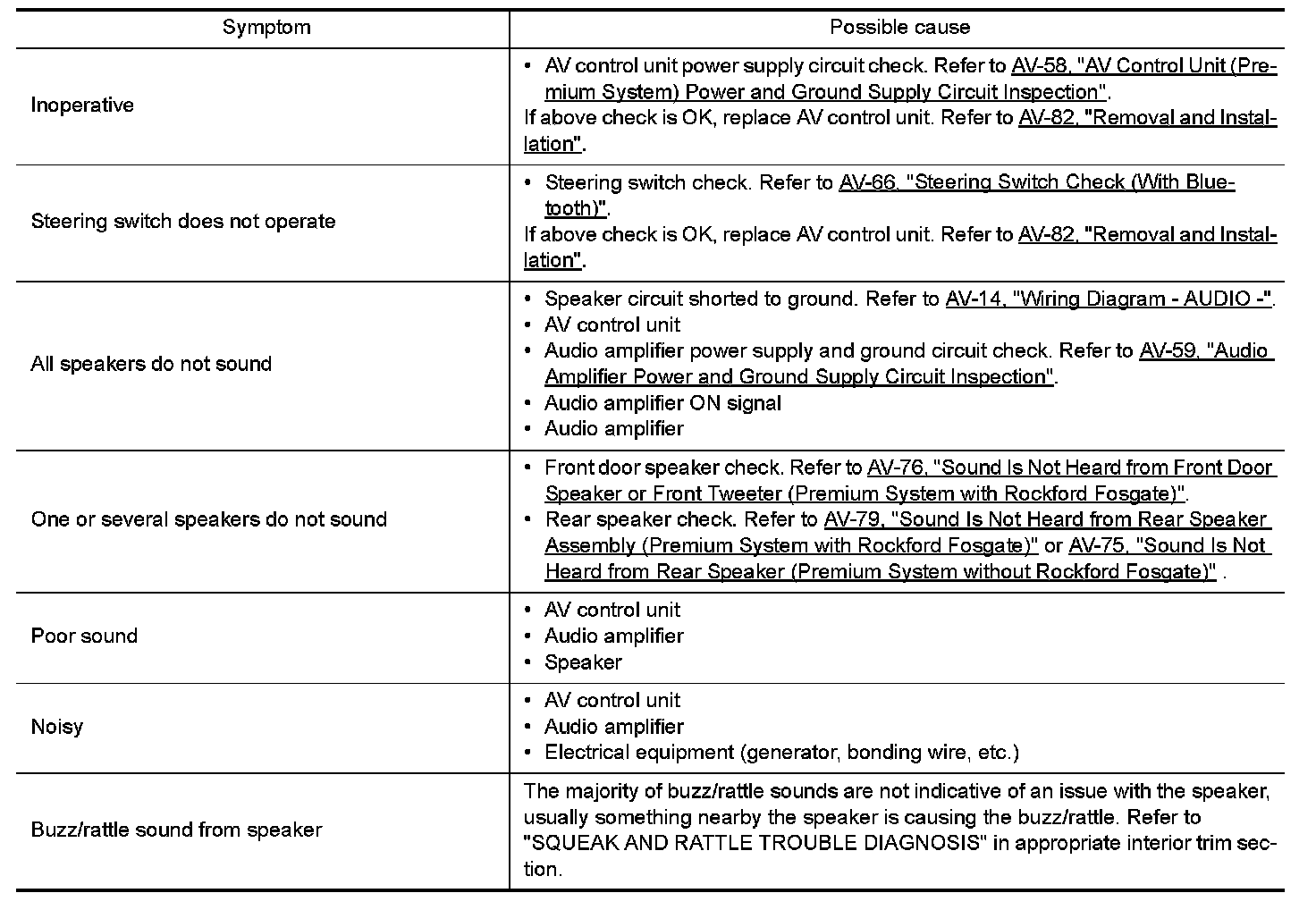

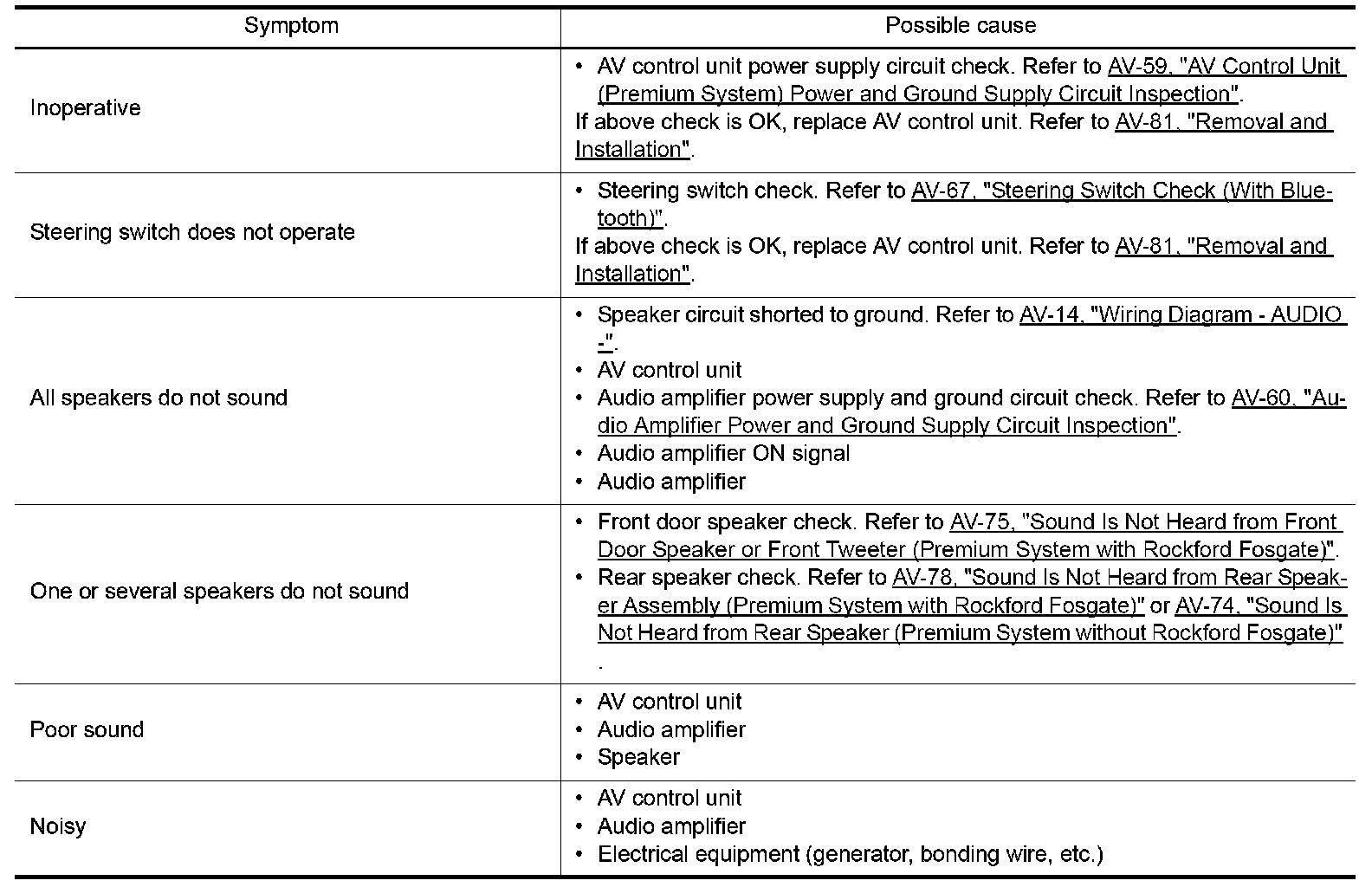

MALFUNCTION WITH RADIO AND CD (PREMIUM SYSTEM)

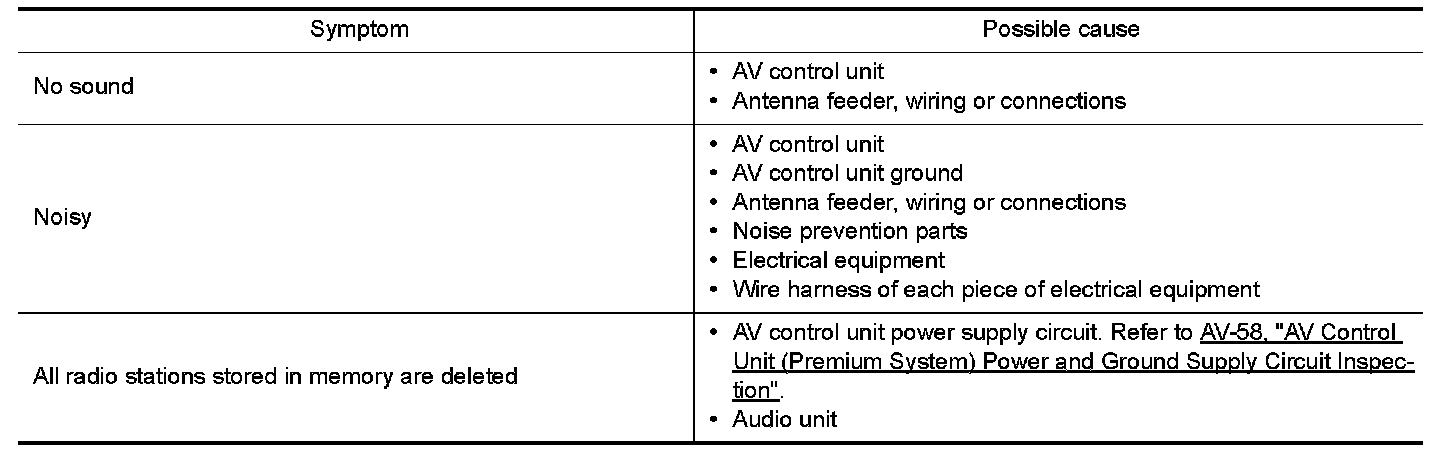

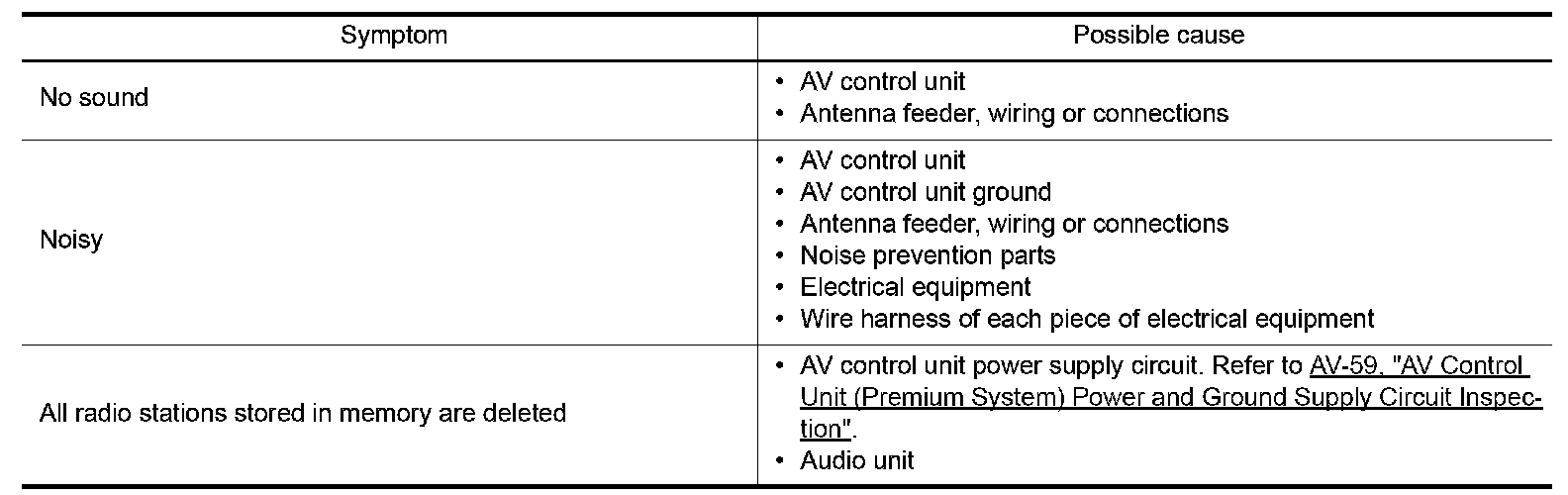

FOR RADIO ONLY (PREMIUM SYSTEM)






NOTE:
The following noise results from variations in field strength, such as fading noise and multi-path noise, or external noise from trains and other sources. It is not a malfunction.
- Fading noise: This noise occurs because of variations in the field strength in a narrow range due to mountains or buildings blocking the signal.
- Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the antenna at a different time from the waves which reflect off mountains or buildings.

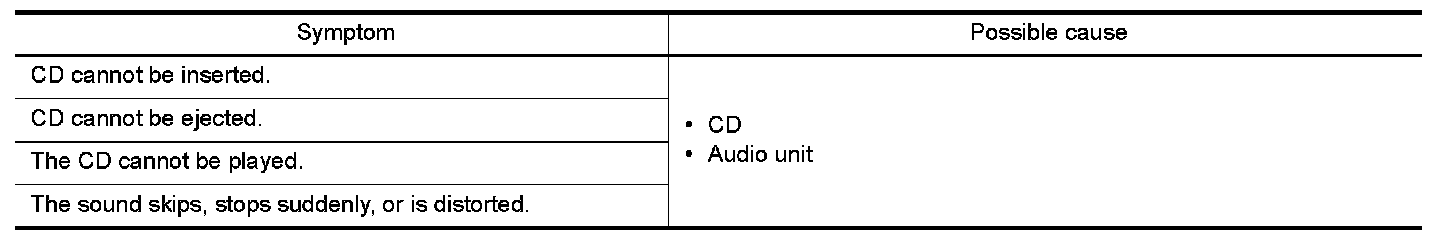

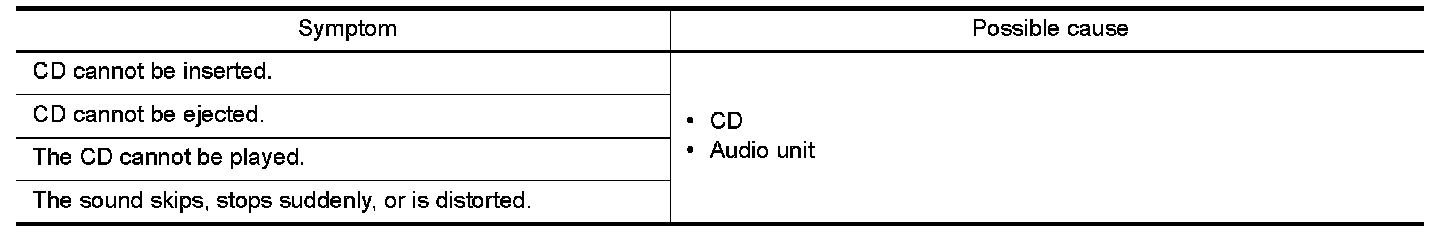

FOR CD ONLY

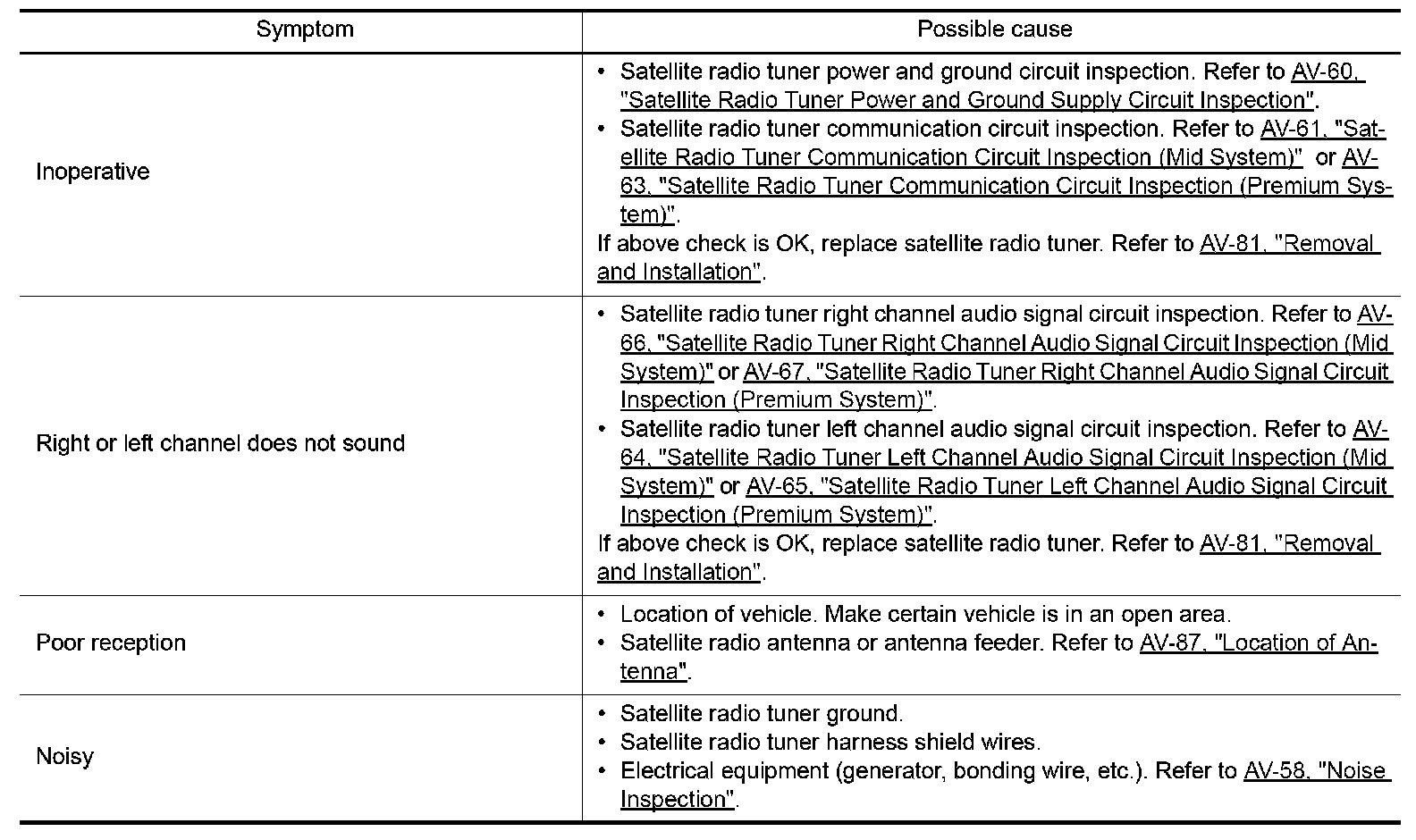

FOR SATELLITE RADIO TUNER ONLY
