BCM (Body Control Module)





BCM (BODY CONTROL MODULE)


Reference Value

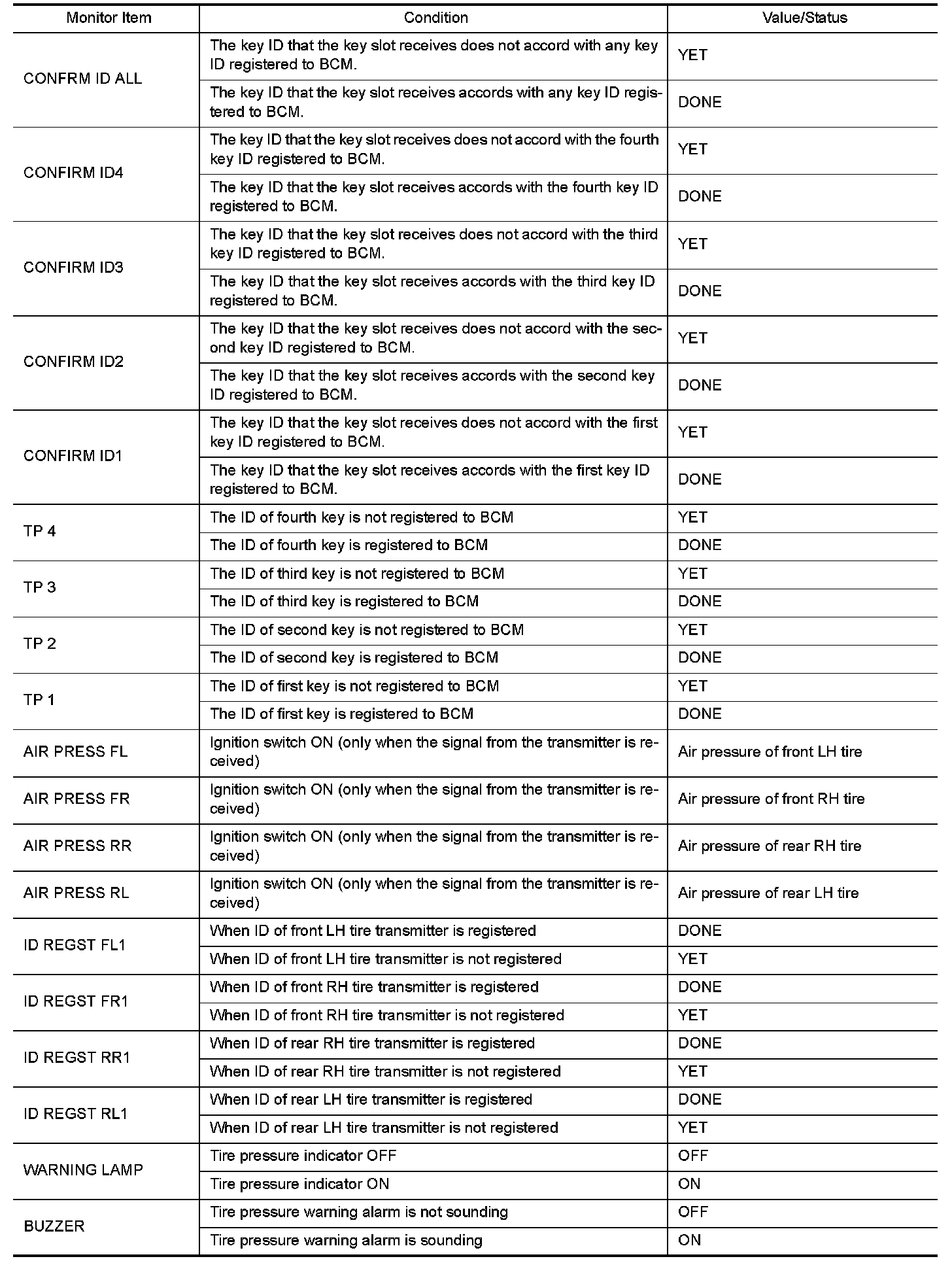

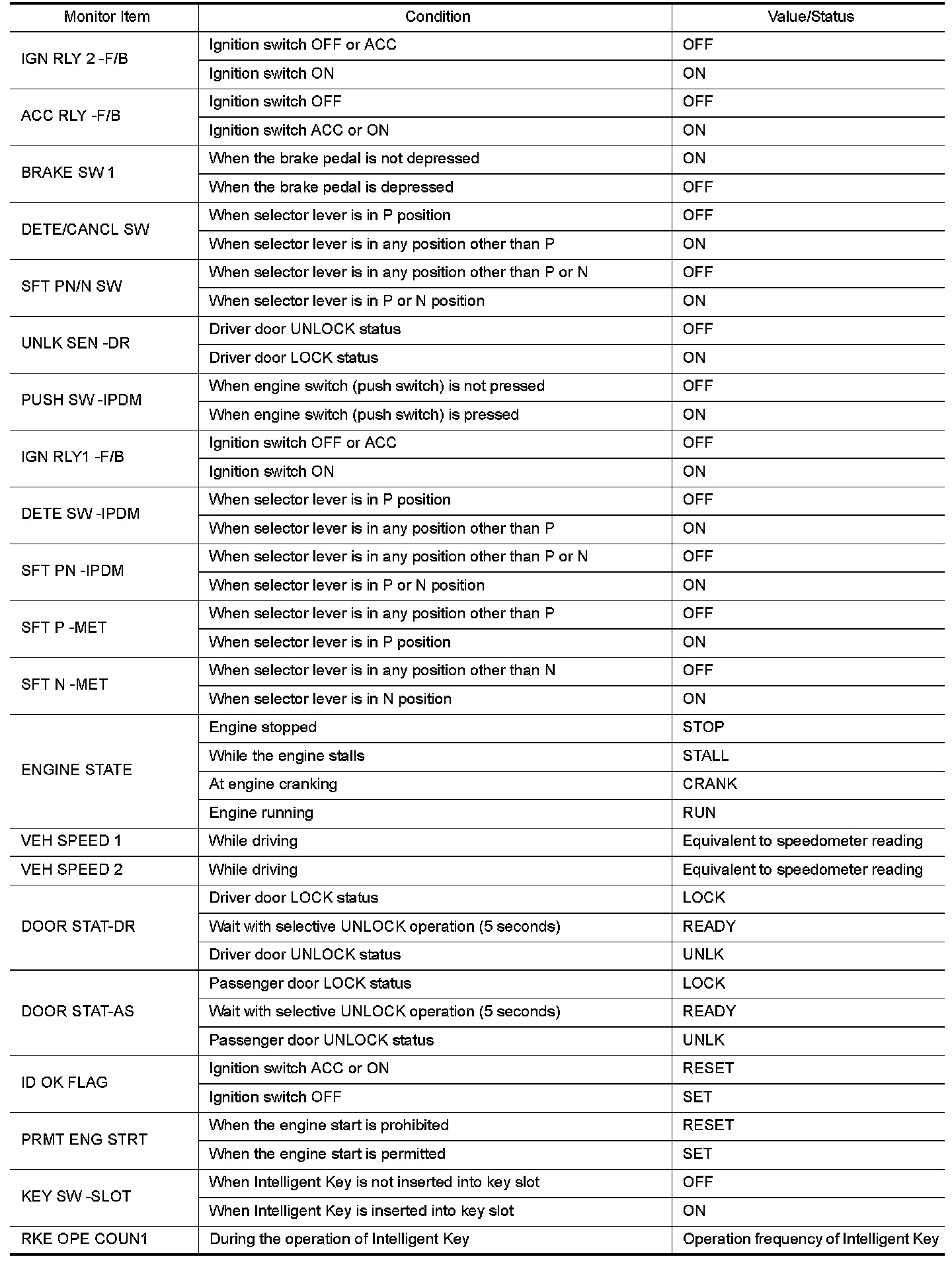

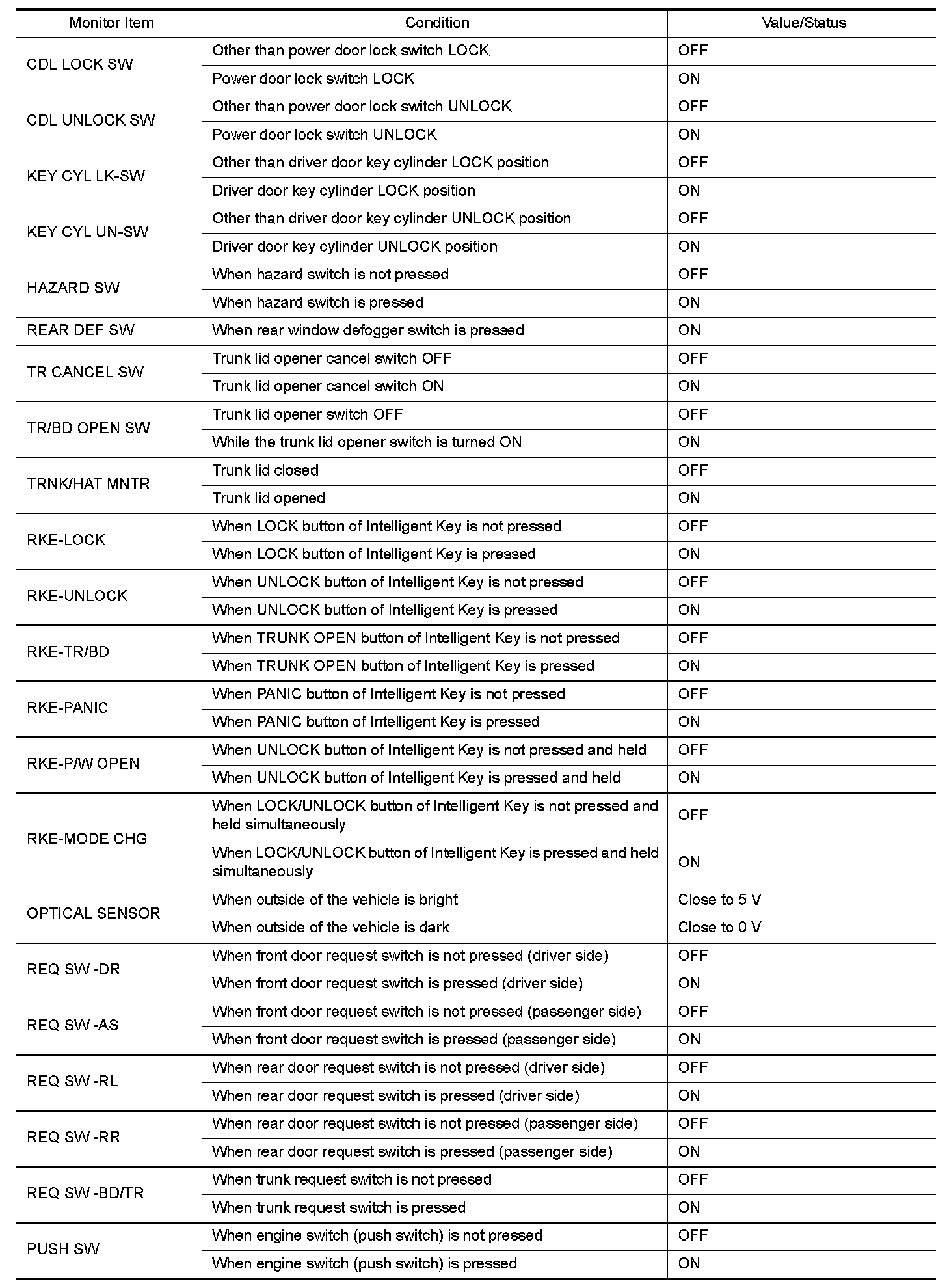

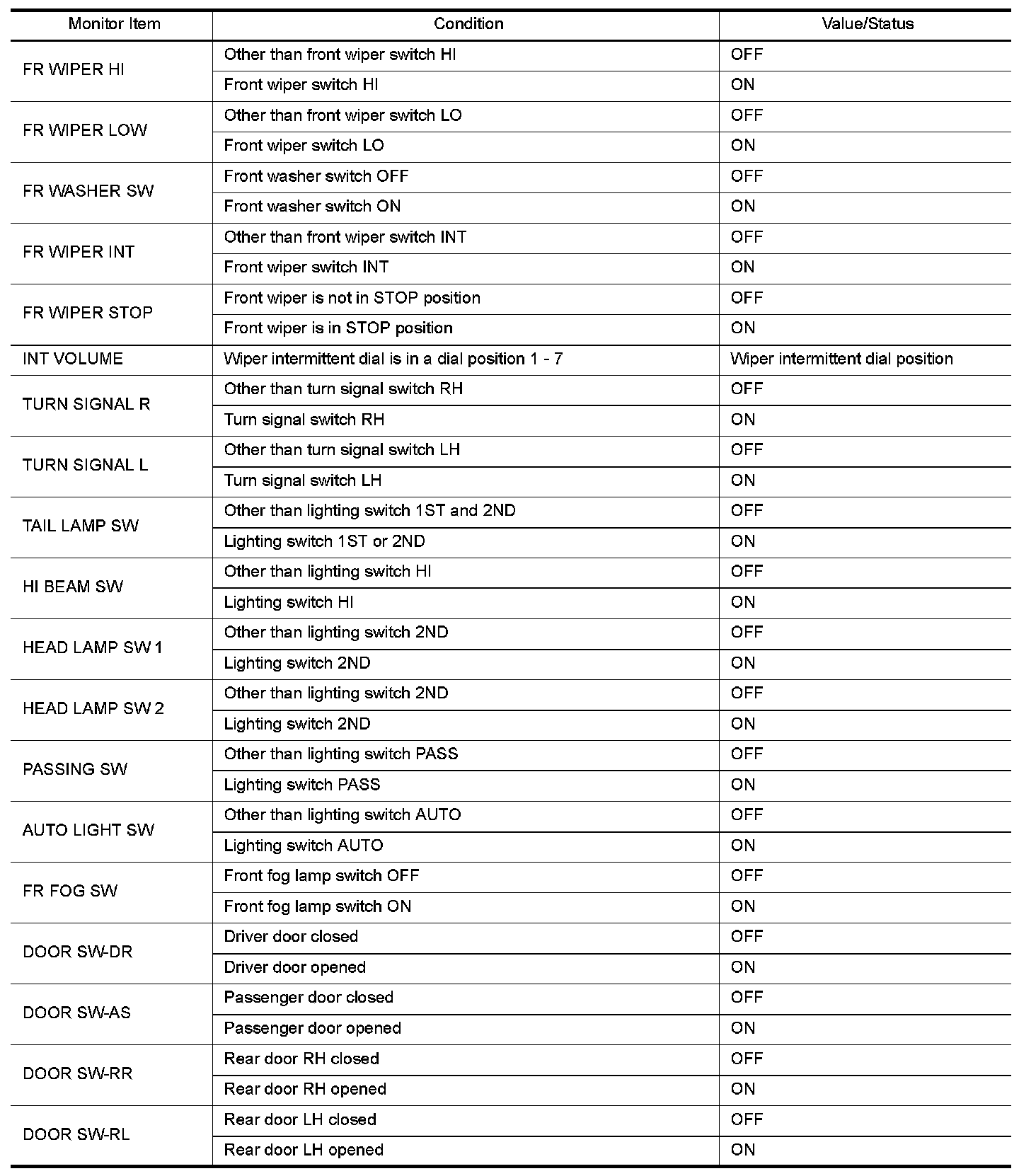

VALUES ON THE DIAGNOSIS TOOL
