Home
>>
Nissan-Datsun
>>
2011
>>
Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Locations
>>
Trunk Open Function
>>
Trunk Request Switch
Trunk Request Switch
TRUNK OPEN FUNCTION

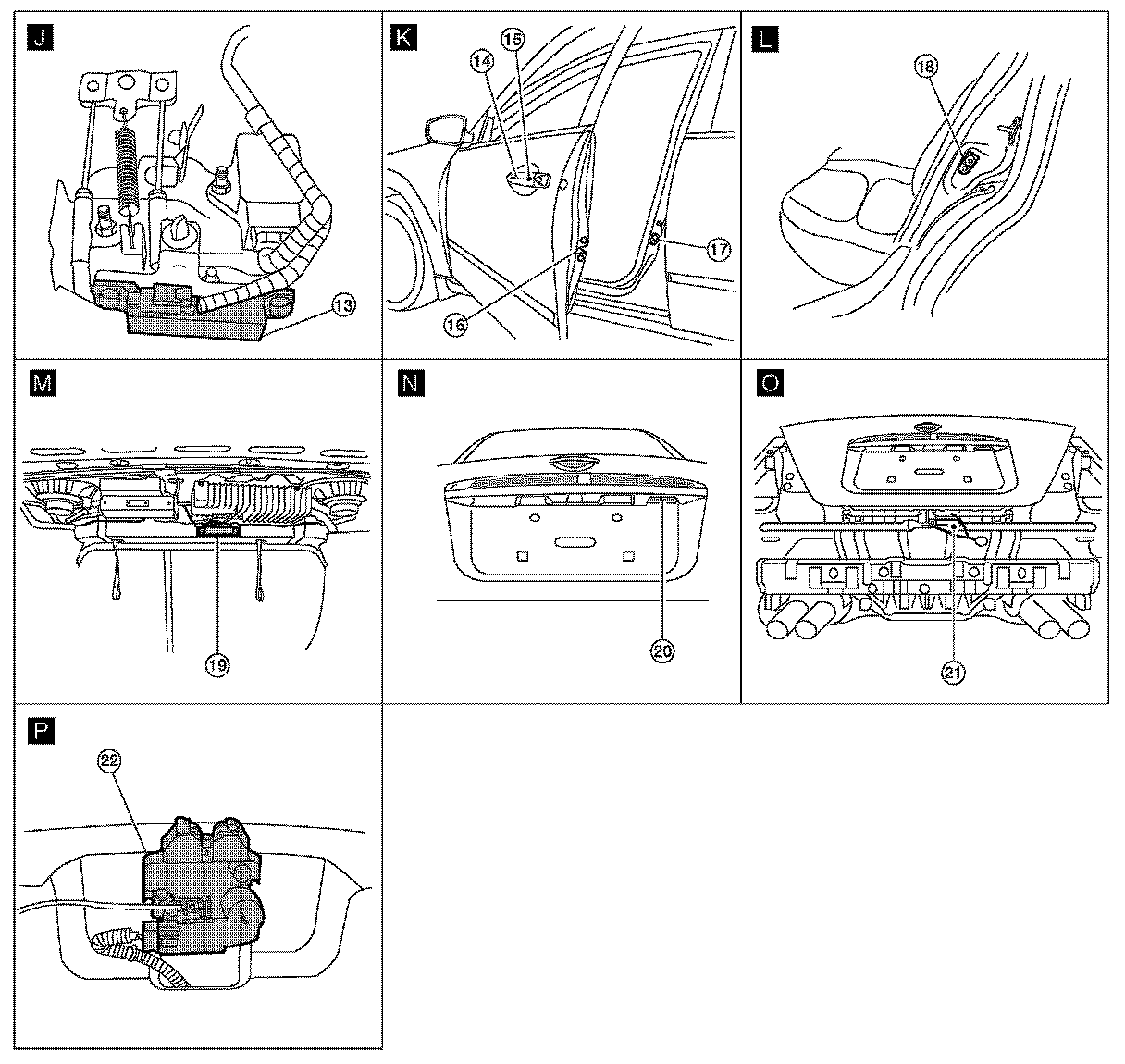

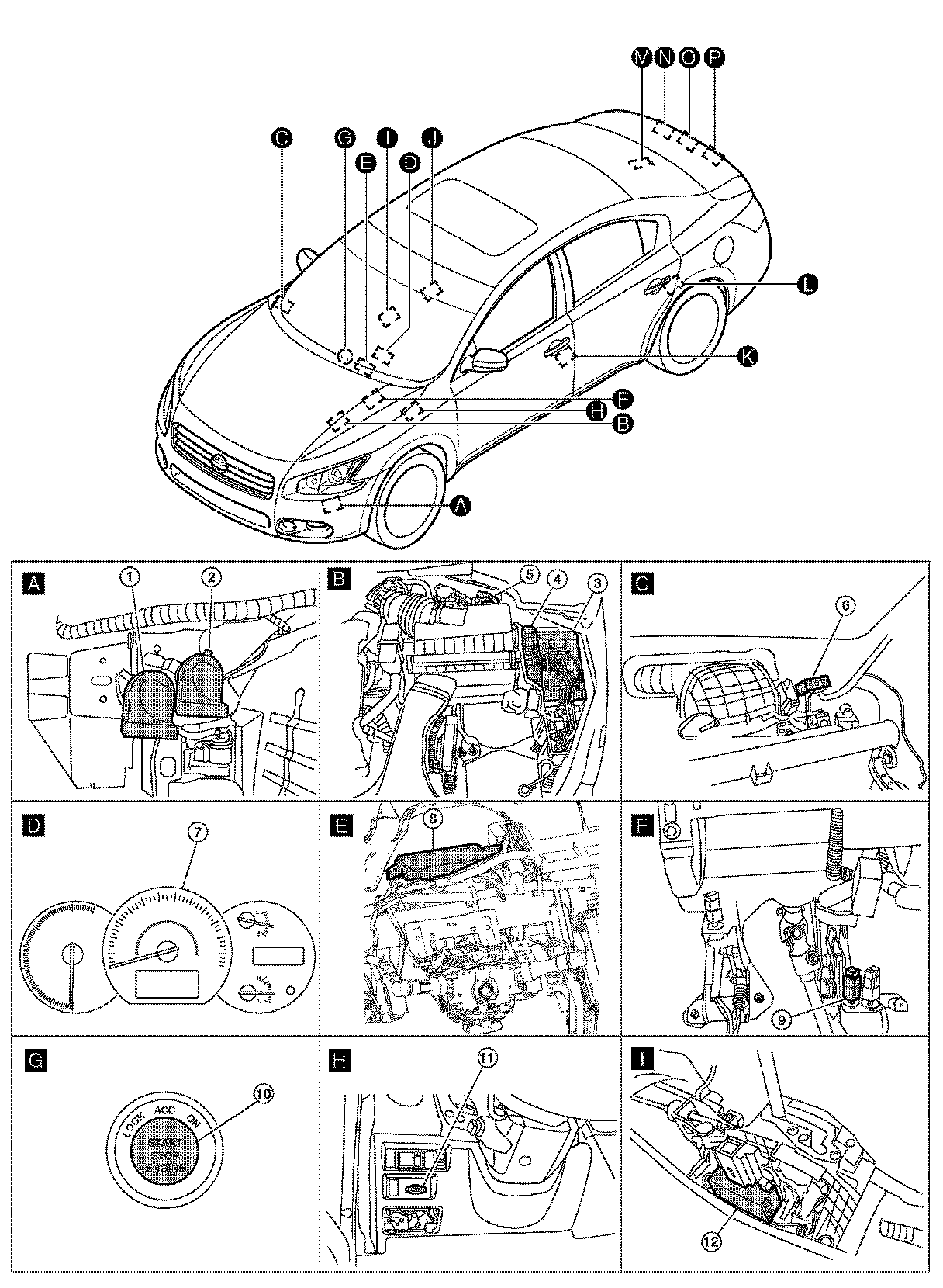

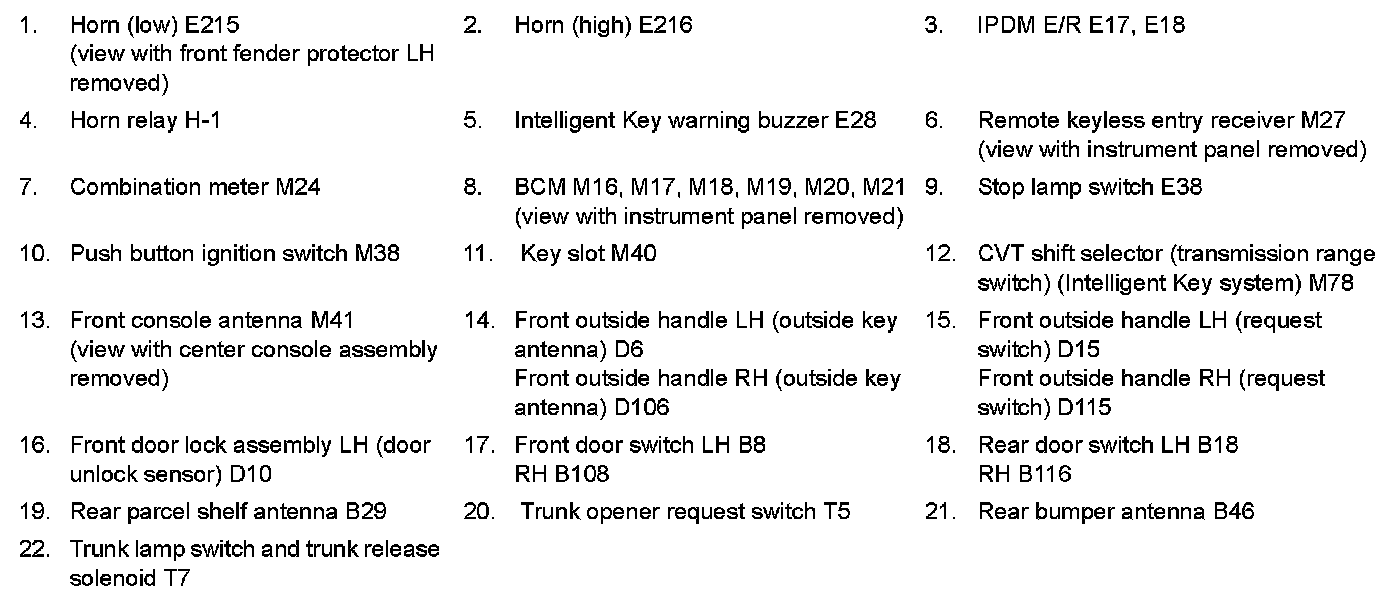

TRUNK REQUEST SWITCH : Component Parts Location
