Removal And Installation

HEATER PUMP

Removal and Installation


REMOVAL

1.Remove front under cover. Refer to "FRONT UNDER COVER : Removal and Installation" Front Under Cover.
2.Drain out heater fluid. Refer to "Draining and Refilling" Draining And Refilling.
3.Remove 12 V battery. Refer to "Removal and Installation" Removal And Installation.

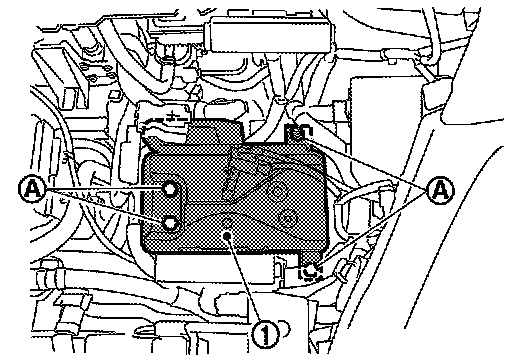

4.Remove mounting bolts (A), and then remove battery bracket (1).

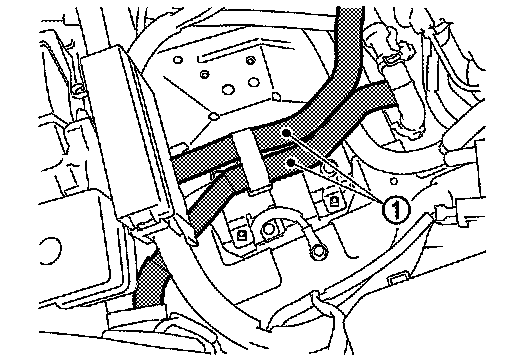

5.Move hoses (1) to secure work space.





6.Remove fixing hose clamp, and then disconnect heater hose (1)
from heater pump (2).





7.Remove fixing hose clamp, and then disconnect heater hose (1)
from heater pump (2).
8.Disconnect heater pump connector.

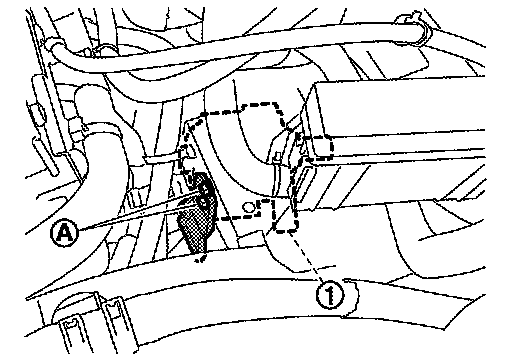

9.Remove mounting bolts (A), and then remove heater pump (1).

INSTALLATION

Note the following item, and then install in the reverse order of removal.
NOTE:
When adding heater fluid. Refer to "Draining and Refilling" Draining And Refilling.
