Charging Status Indicator
CHARGING STATUS INDICATOR
Component Function Check
1. CHECK CHARGING STATUS INDICATOR FUNCTION
With CONSULT
1.Turn power switch ON.
2.Select "CHARGE STAT INDICATOR 1" of "ACTIVE TEST" mode in "EV/HEV" with CONSULT.
3.Activate the charging status indicator 1 and check that the indicator illuminates.
4.Check charging status indicator 2 and 3 in the same way.
Is the inspection result normal?
YES- INSPECTION END
NO- Proceed to "Diagnosis Procedure" .
Diagnosis Procedure
1. CHECK CHARGING STATUS INDICATOR CONTROL CIRCUIT
With CONSULT
1.Turn power switch OFF.
2.Disconnect charging status indicator.
3.Check the voltage between charging status indicator harness connector terminals.
4.Turn power switch ON.
5.Select "CHARGE STAT INDICATOR 1" of "ACTIVE TEST" mode in "EV/HEV" with CONSULT.
6.Activate the charging status indicator 1.

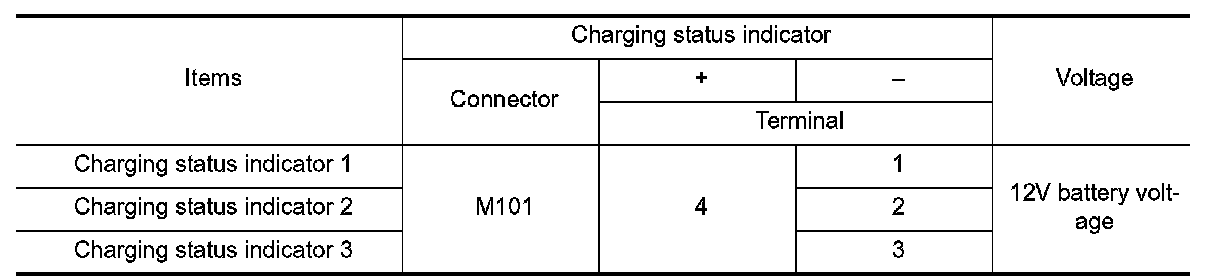

7.Check the voltage between charging status indicator harness connector terminals.
8.Check charging status indicator 2 and 3 in the same way.
Is the inspection result normal?
YES- Replace charging status indicator. Refer to "Removal and Installation" Service and Repair.
NO- GO TO 2.
2. CHECK CHARGING STATUS INDICATOR POWER SUPPLY
Check the voltage between charging status indicator harness connector and ground.
Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 3.
3. CHECK FUSE
1.Turn power switch OFF.
2.Pull out #11 fuse and check that the fuse is not fusing.
Is the inspection result normal?
YES- GO TO 4.
NO- Replace the fuse after repair the applicable circuit.
4. CHECK CHARGING STATUS INDICATOR POWER SUPPLY CIRCUIT

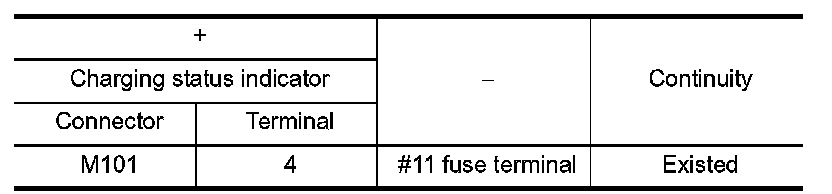

1.Check the continuity between charging status indicator and the fuse terminal.
2.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- Check power supply circuit for battery power supply.
NO- Repair or replace error-detected parts.
5. CHECK CHARGING STATUS INDICATOR GROUND CIRCUIT
1.Turn power switch OFF.
2.Disconnect VCM harness connector.
3.Check the continuity between charging status indicator harness connector and VCM harness connector.
4.Also check harness for short to ground and short to battery.
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace error-detected parts.
6. CHECK VCM GROUND CIRCUIT
Check the continuity between VCM harness connector and ground.
Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace error-detected parts.
7. CHECK INTERMITTENT INCIDENT
Check intermittent incident. Refer to "Intermittent Incident" Intermittent Incident.
Is the inspection result normal?
YES- Replace VCM. Refer to "Removal and Installation" Removal And Installation.
NO- Repair or replace error-detected parts.
