Luggage Room

INSIDE KEY ANTENNA

LUGGAGE ROOM : Removal and Installation


REMOVAL

1.Remove the luggage floor upper finisher. Refer to "LUGGAGE FLOOR UPPER FINISHER : Removal and Installation" Luggage Floor Upper Finisher.

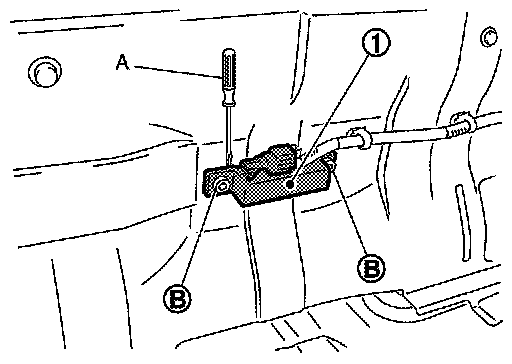

2.Remove the inside key antenna (luggage room) (1) using a remover tool (A).

CAUTION:
- When removing and installing, use shop cloths to protect from damage.
- Be careful that mounting clips (B) may pop put.

INSTALLATION

Install in the reverse order of removal.
