Removal And Installation

CHARGE PORT LID LOCK

Removal and Installation


REMOVAL

1.Remove charge port cover. Refer to "CHARGE PORT COVER : Removal and Installation" Charge Port Cover.

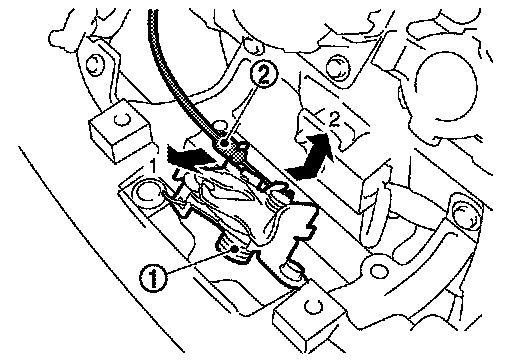

2.Disconnect charge port lid control cable (2) from charge port lid lock (1).
3.Remove charge port lid lock mounting bolts, and then charge port lid lock.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- Check that charge port lid lock control cable is properly engaged with charge port lid lock.
- After installation, perform charge port lid fitting adjustment. Refer to "CHARGE PORT LID ASSEMBLY : Adjustment" Adjustment.
