FRONT FENDER


Removal and Installation


REMOVAL
1. Remove front fillet molding. Front Fillet Molding.
2. Remove front bumper fascia assembly. Removal And Installation.
3. Remove sill cover. .
4. Remove fender protector. Removal And Installation.
5. Remove front fender cover. Exploded View.
6. Remove front combination lamp. Removal And Installation Halogen Type.
7. Remove side turn signal lamp. Removal And Installation.
8. Remove mounting bolts of front fender assembly.




White Arrow Indicates : Vehicle front

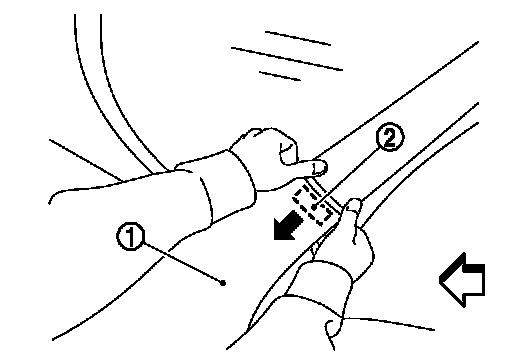

9. Remove front fender stiffener (2) from the vehicle body while carefully pulling upper portion of front fender (1) toward vehicle outside.

10. Remove front fender assembly.

CAUTION:
An viscous urethane foam is installed on the back surface of front fender. When removing the front fender, be careful to not deform the front fender while performing the procedure and removing the viscous urethane foam a little at a time.

INSTALLATION
Note the following items, and install in the reverse order of removal.

CAUTION:
- After installation, apply the touch-up paint (the body color) onto the head of front fender mounting bolts.
- After installation, adjust the following part.
- Hood assembly: Without Intelligent Key System.
- Front door: Without Intelligent Key System.
