Removal and Installation

CONTROL LINKAGE


Removal and Installation


REMOVAL
1. Remove battery. Refer to Removal and Replacement.
2. Remove air cleaner and air duct. Refer to Removal And Installation.

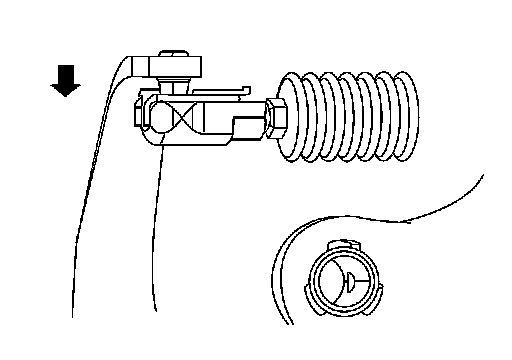

3. Remove shift cable from shifter lever as shown.

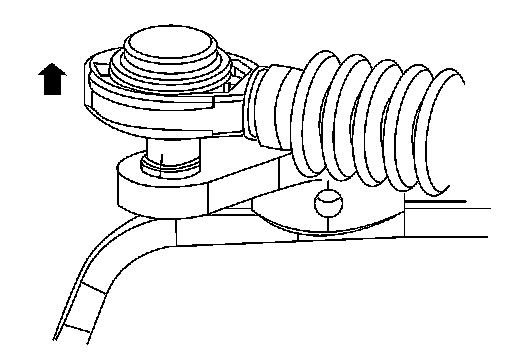

4. Remove select cable from selector lever A as shown.





5. Shift control lever to neutral position.
6. Remove control lever knob.
7. Remove center console assembly. Refer to Removal And Installation.
8. Remove control device assembly nuts.
9. Remove exhaust front tube, center muffler and heat shield. Refer to Removal and Installation.
10. Remove cable support bracket.
11. Remove select cable and shift cable from cable bracket.
12. Remove control device assembly from the vehicle.

INSTALLATION
Installation is in the reverse order of removal.
- Securely install each cable to shifter lever and selector lever.

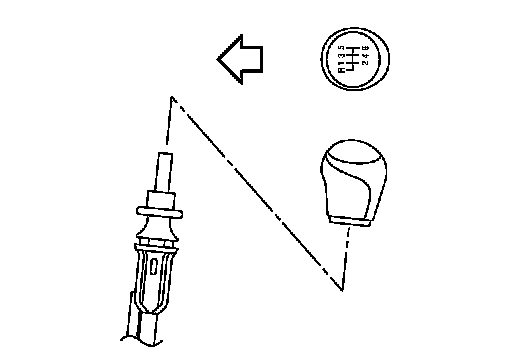

- Be careful about the installation direction, and screw control lever knob onto control lever.
Arrow Indicates Front
- When control lever is selected to 1st-2nd side and 5th-6th side, confirm control lever returns to neutral position smoothly.
- When control lever is shifted to each position, make sure there is no binding or disconnection in each boot.
