Adjustment Of PNP Switch

SHIFT CONTROL SYSTEM


Adjustment of PNP switch

1. Move selector lever to "N" position.
2. Remove control cable from manual lever.

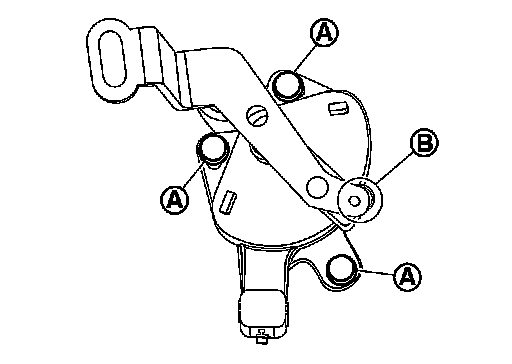

3. Loosen PNP switch bolts (A). Insert a pin (dia 4 mm) into the adjusting holes (B) on both PNP switch and manual lever for adjusting the position.
4. Tighten PNP switch bolts (A).

PNP switch bolts : 5.9 N.m (0.60 kg-m, 52 in-lb)

5. Connect control cable on manual lever (B). Refer to Adjustment Of CVT Position.
