CONSULT-III Function (EPS)

TROUBLE DIAGNOSIS


CONSULT-III Function (EPS)


FUNCTION

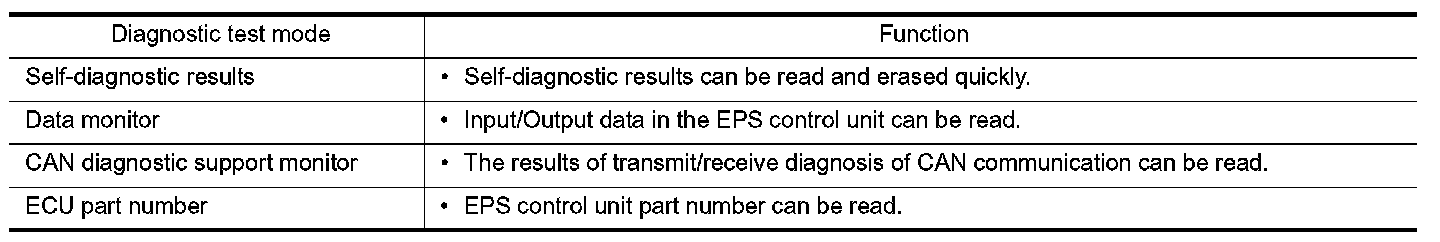

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

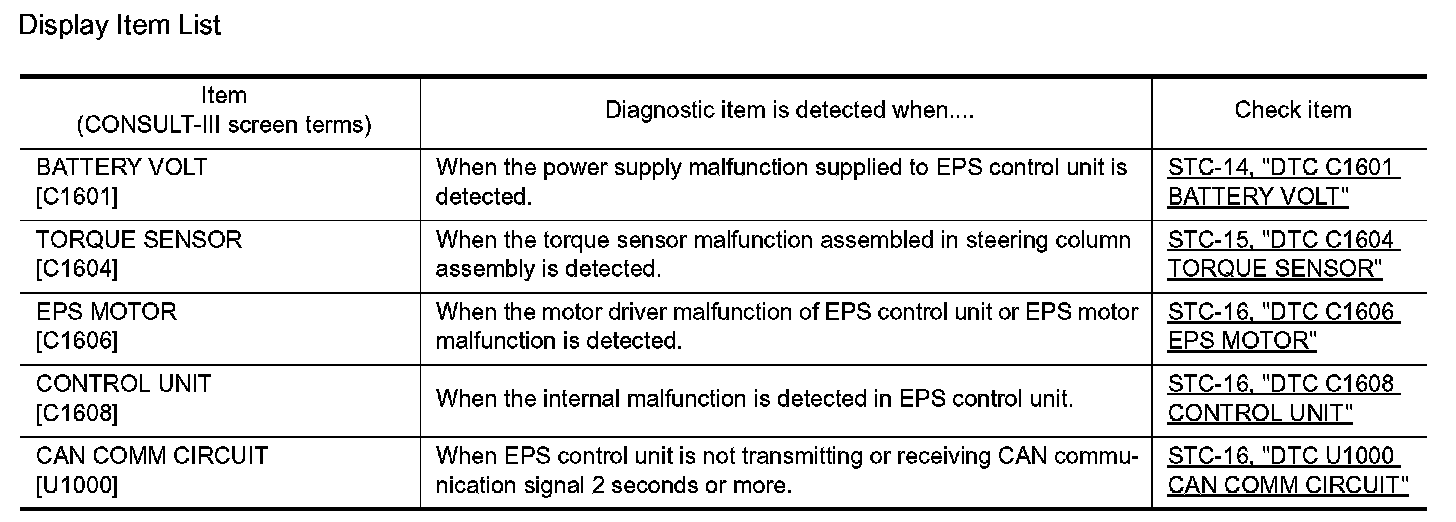

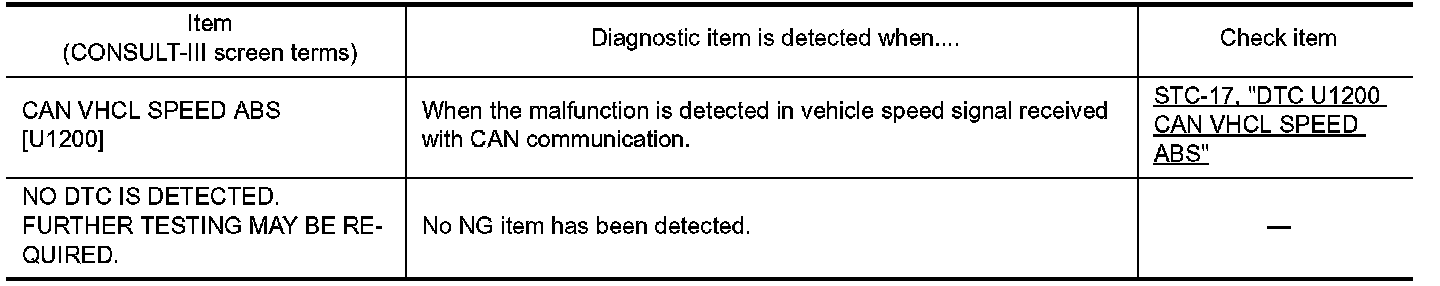

SELF-DIAG RESULTS MODE

Display Item List











CAUTION: If CAN COMM CIRCUIT [U1000] is displayed with other DTCs, first perform the trouble diagnosis for CAN communication line.

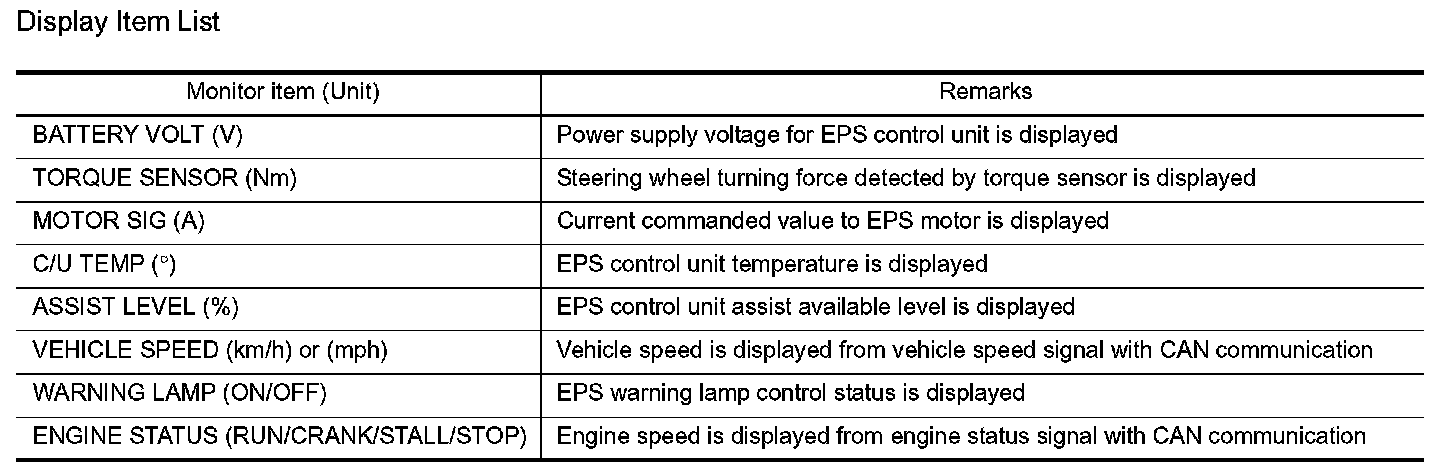

DATA MONITOR

Display Item List
