Auxiliary Power Outlet: Service and Repair

POWER SOCKET


Removal and Installation


FRONT CONSOLE POWER SOCKET

Removal
1. Remove the center console. Refer to Removal And Installation.
2. Remove the instrument lower covers (LH) and (RH). Refer to Removal And Installation.
3. Remove the instrument lower cover (center). Refer to Removal And Installation.

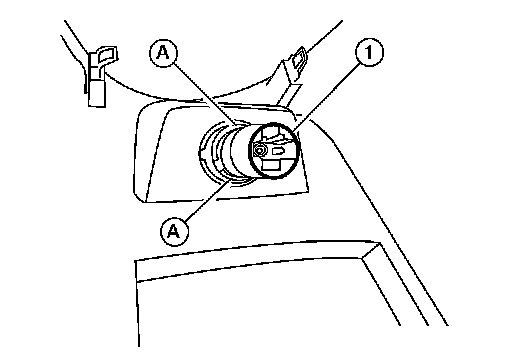

4. Remove the power socket (1) while pressing the tabs (A) on the ring, disconnect the power socket connector.

Installation
Installation is in the reverse order of removal.

CONSOLE POWER SOCKET

Removal
1. Remove the center console. Refer to Removal And Installation.
2. Remove the power socket while pressing the tabs on the ring, disconnect the power socket connector.

Installation
Installation is in the reverse order of removal.
