Transmission Position Sensor/Switch: Service and Repair

ON-VEHICLE SERVICE


Park/Neutral Position (PNP) Switch

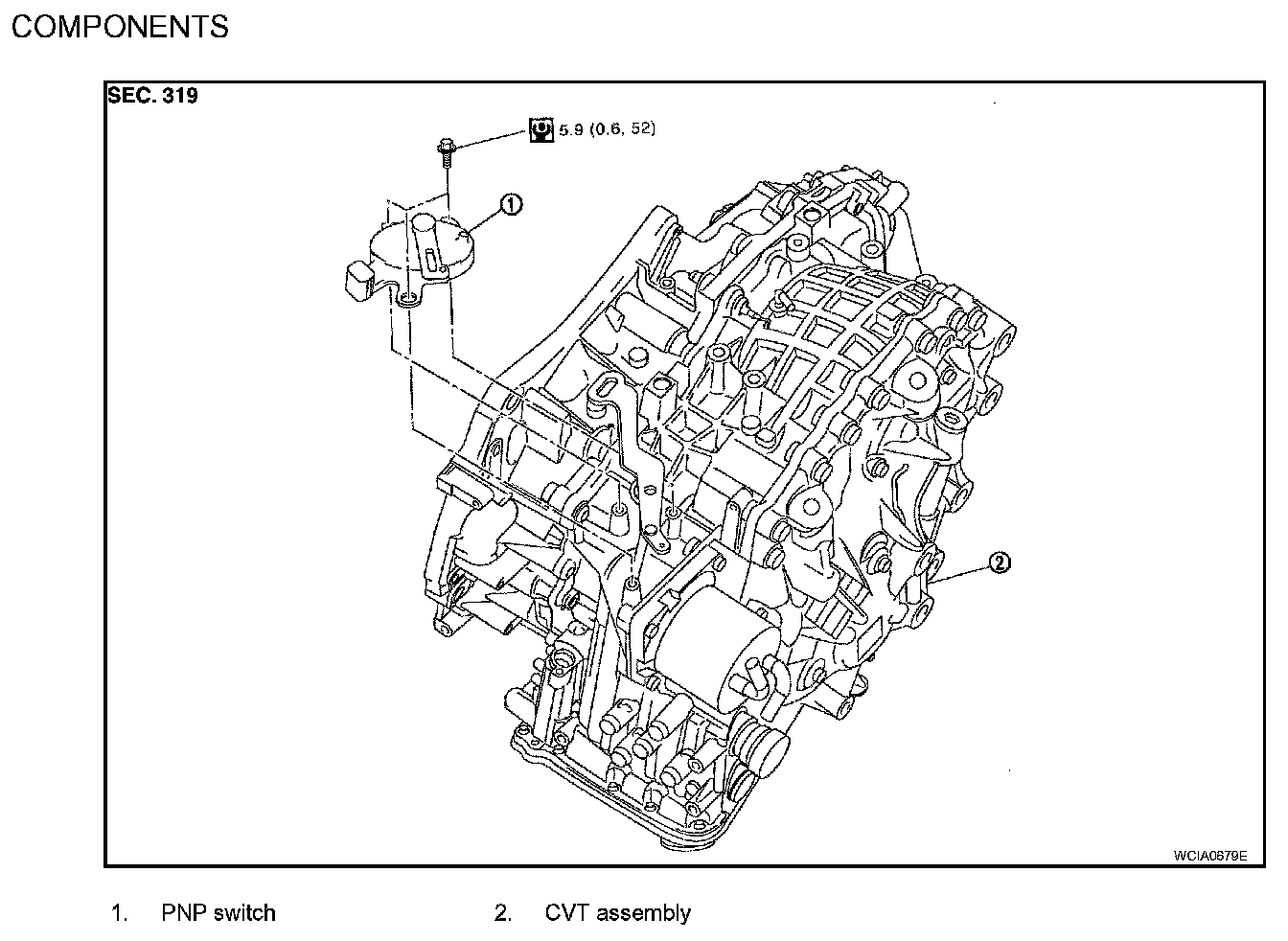

COMPONENTS






NOTE:
- Align PNP switch position when installing.
- After installation of PNP switch, check the continuity of PNP switch. Refer to Adjustment Of PNP Switch.
- After installation is complete, adjust and check CVT position. Refer to Adjustment Of CVT Position, Testing and Inspection.
