Front Fender: Service and Repair

FRONT FENDER


Removal and Installation







REMOVAL
1. Remove the headlamp assemblies. Refer to Service and Repair.
2. Remove the cowl top cover (LH/RH). Refer to Service and Repair.
3. Remove the front fender protector. Refer to Component.

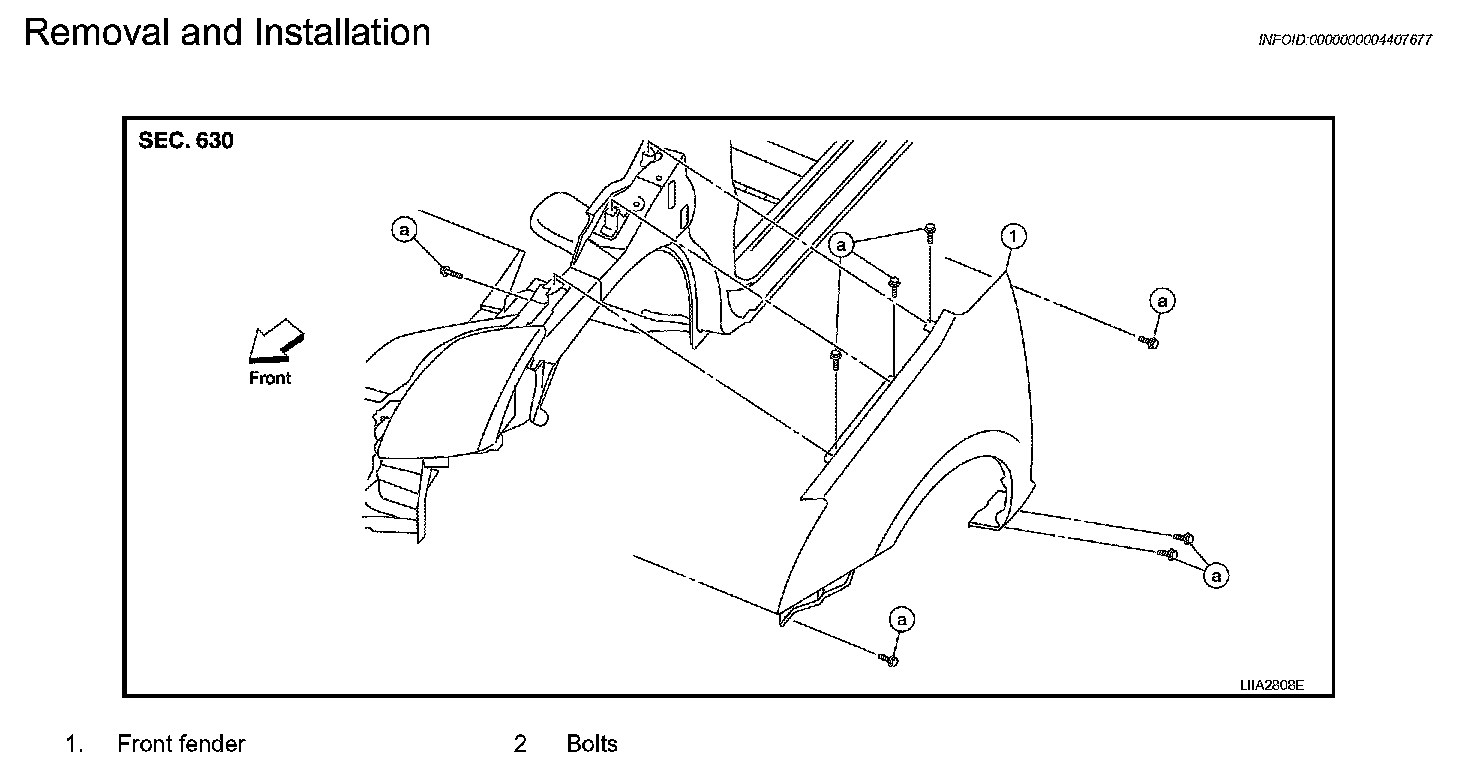

4. Remove the bolts (a) and the front fender (1).

CAUTION:
While removing use a shop cloth to protect the vehicle body from damage.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- After installing, apply touch-up paint onto the head of the front fender bolts.
