CONSULT-III Function (EPS)

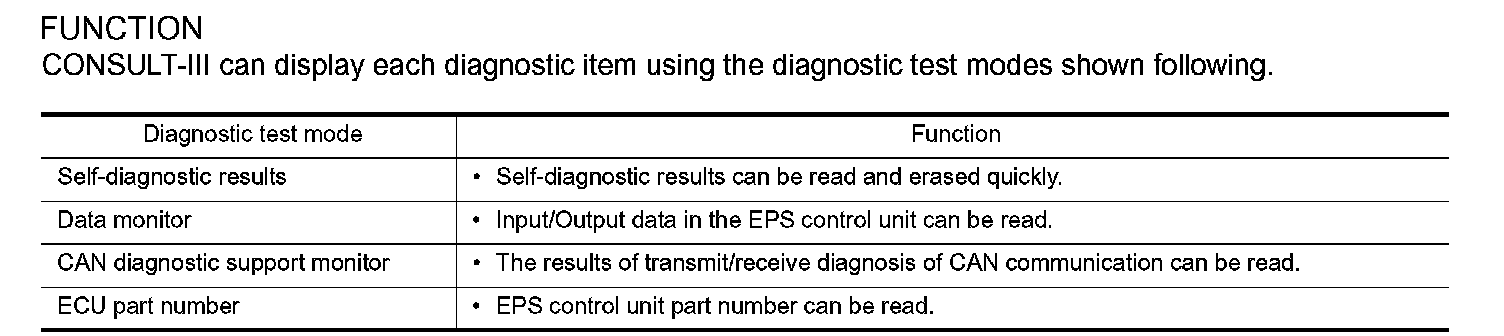

FUNCTION:

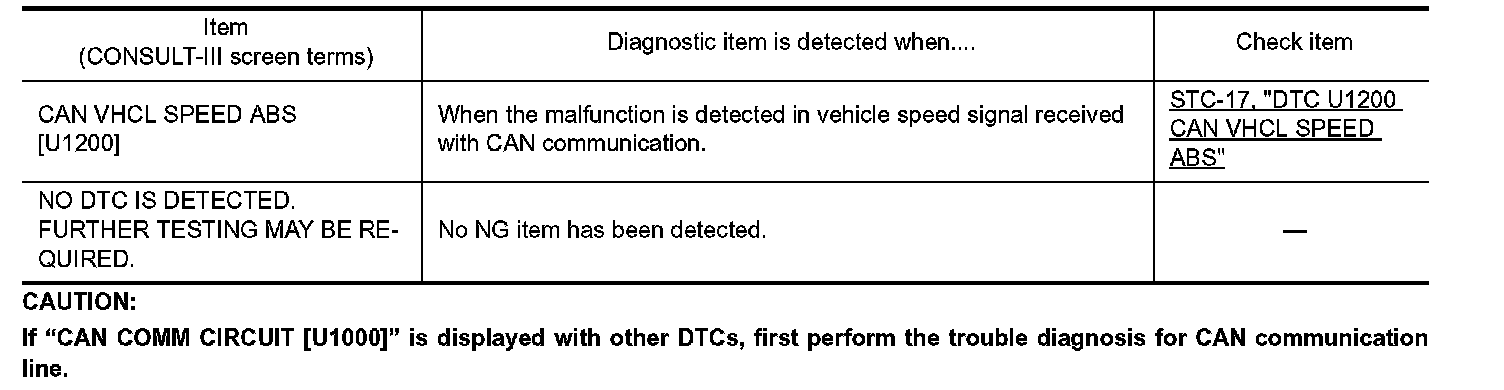

SELF-DIAG RESULTS MODE

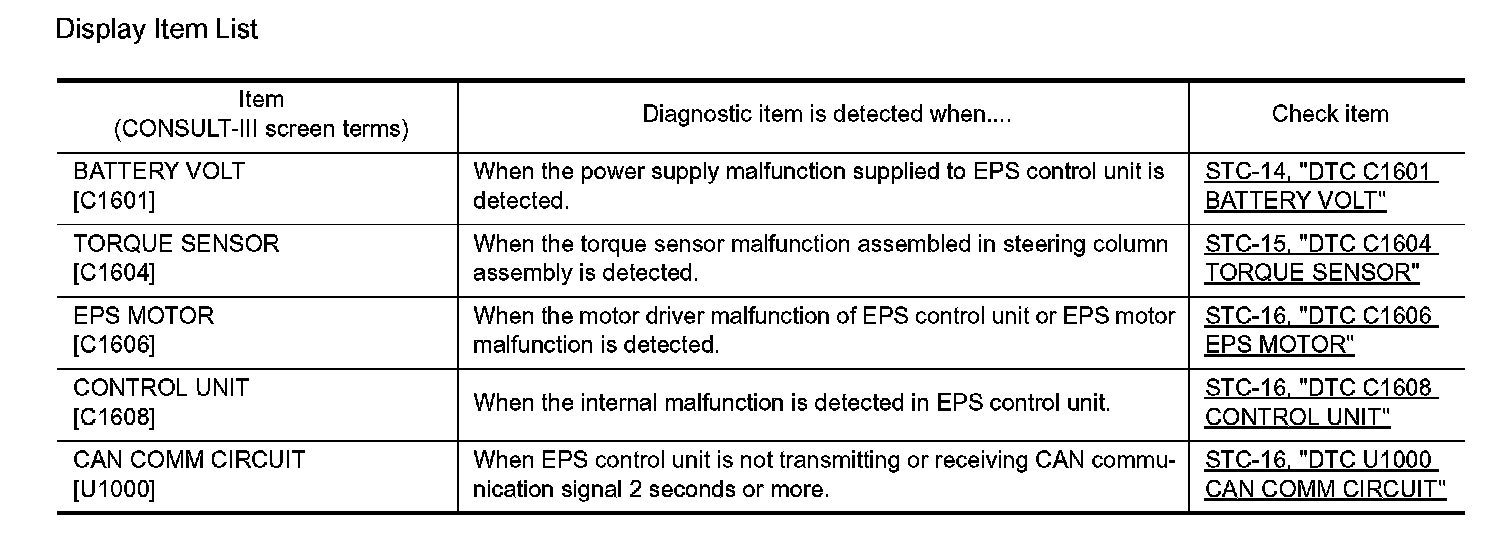

Display Item List (Part 1):
Display Item List (Part 2):
DATA MONITOR

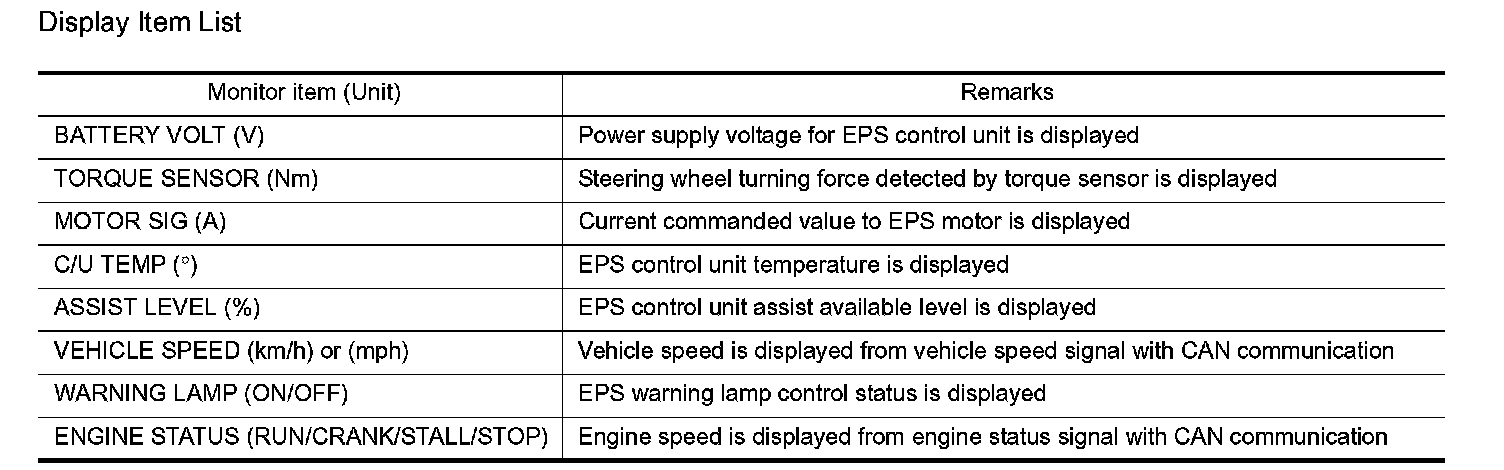

Display Item List:
