Work Flow
WORK FLOWA good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In general, each customer feels differently about a malfunction. It is important to fully understand the symptoms or conditions for a customer complaint.
Make good use of the two sheets provided, "Information From Customer" and "Diagnostic Worksheet Chart", to perform the best troubleshooting possible.

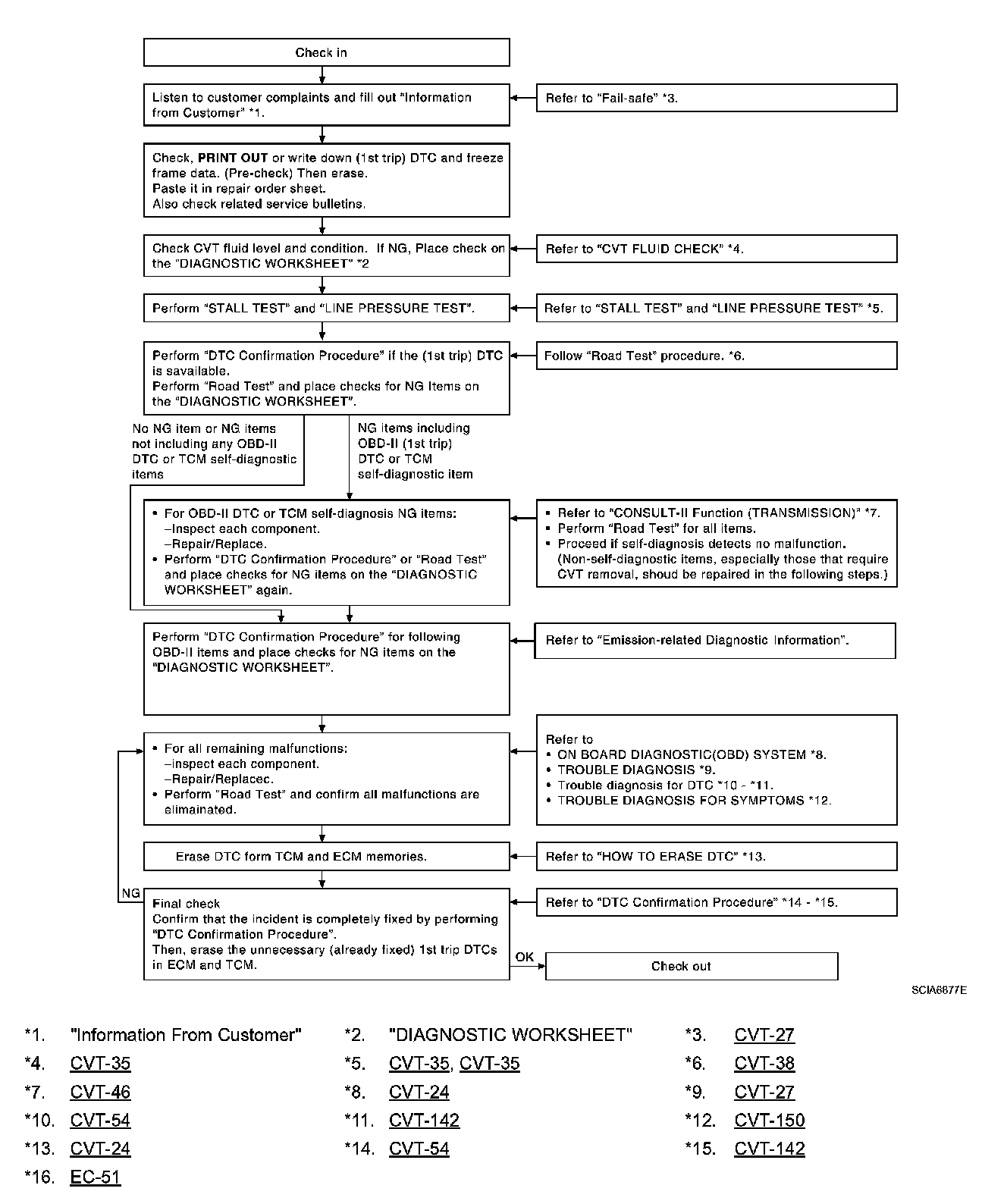

Work Flow Chart:

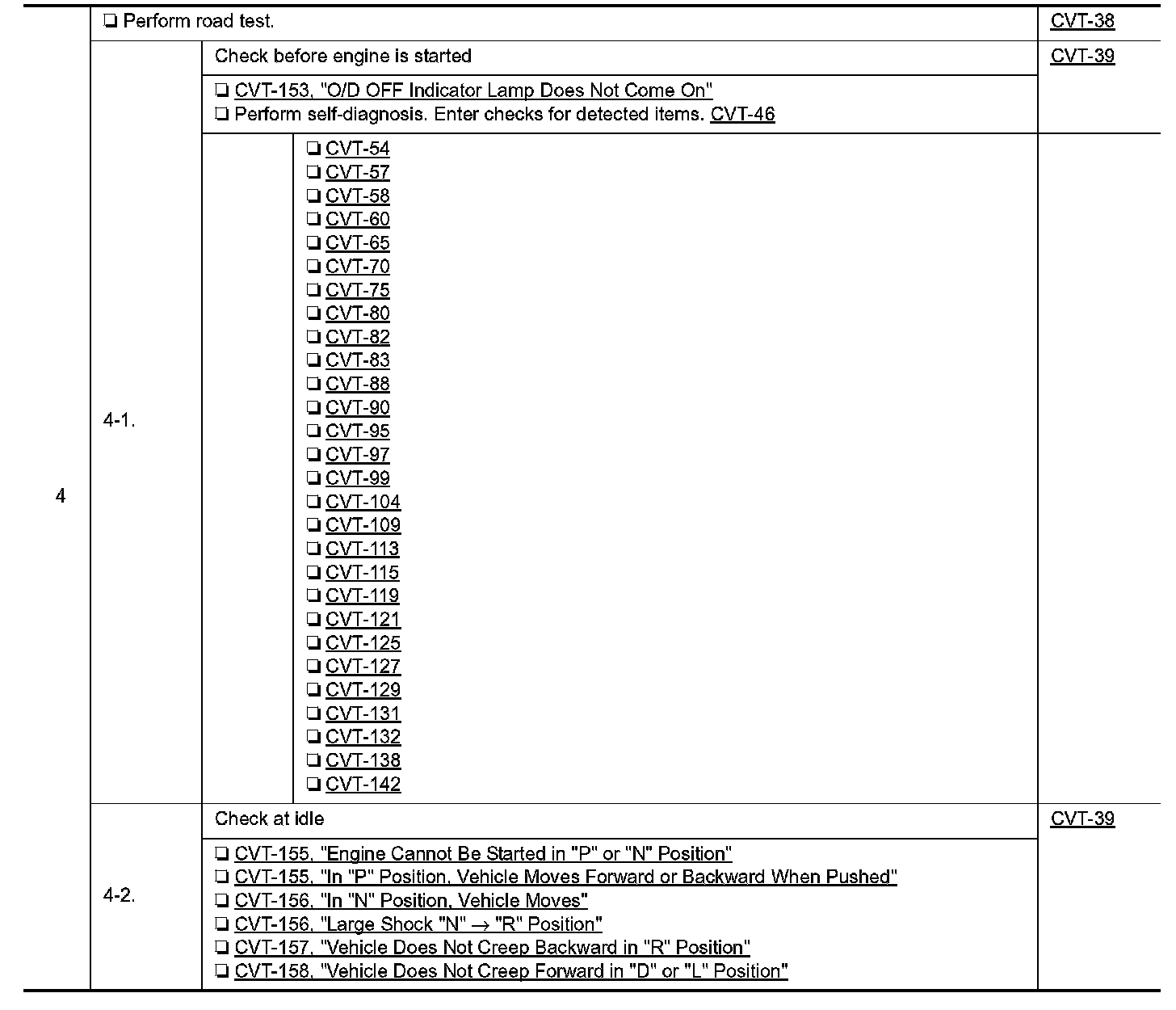

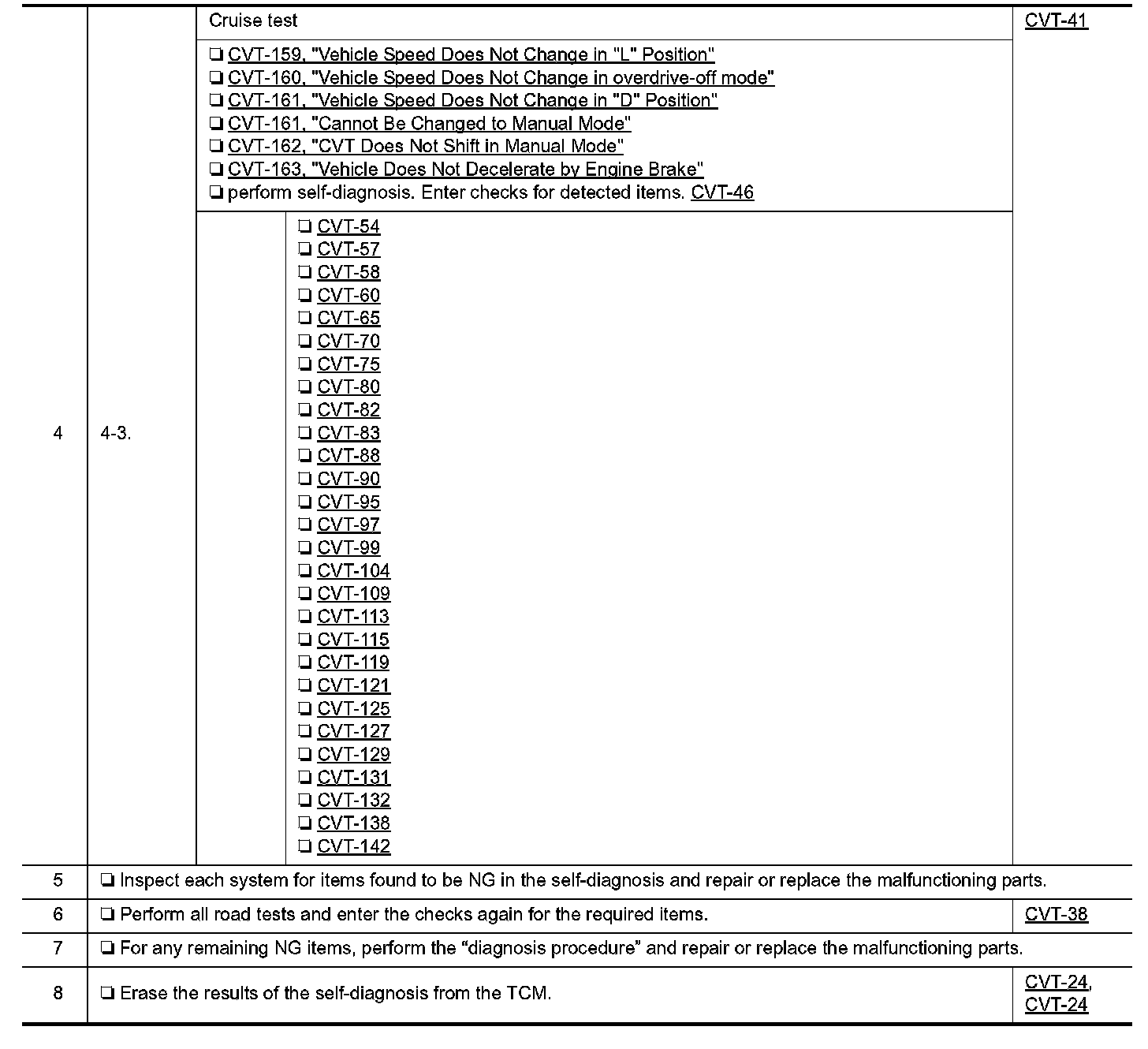

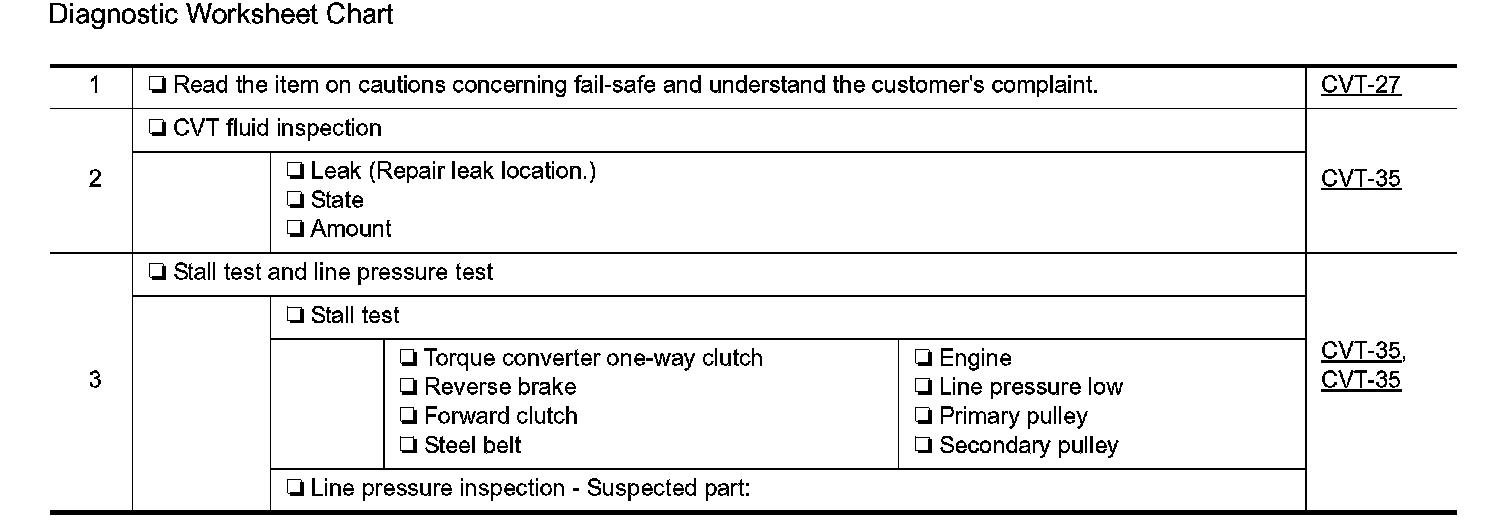

DIAGNOSTIC WORKSHEET

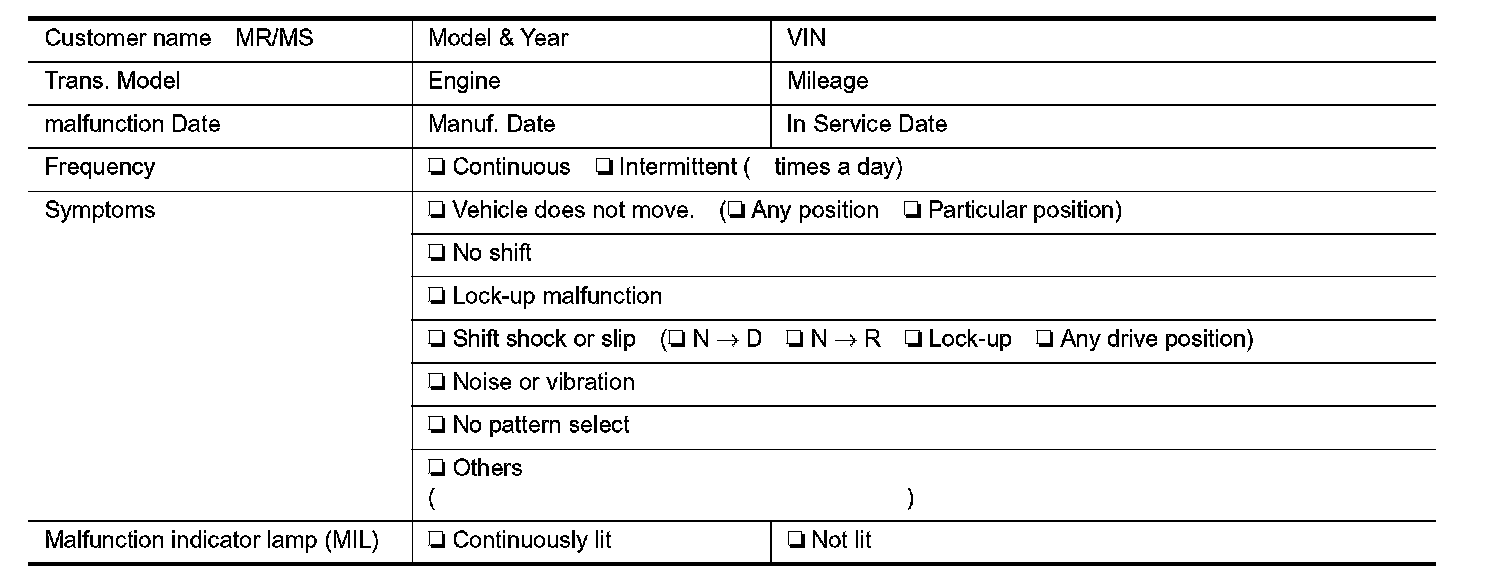

Information From Customer
KEY POINTS
^ WHAT Vehicle & CVT model
^ WHEN Date, Frequencies
^ WHERE Road conditions
^ HOW Operating conditions, Symptoms
