RE0F08A CVT

DATA MONITOR MODE

Operation Procedure





1. Touch "DATA MONITOR" on "SELECT DIAG MODE".

NOTE: When malfunction is detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

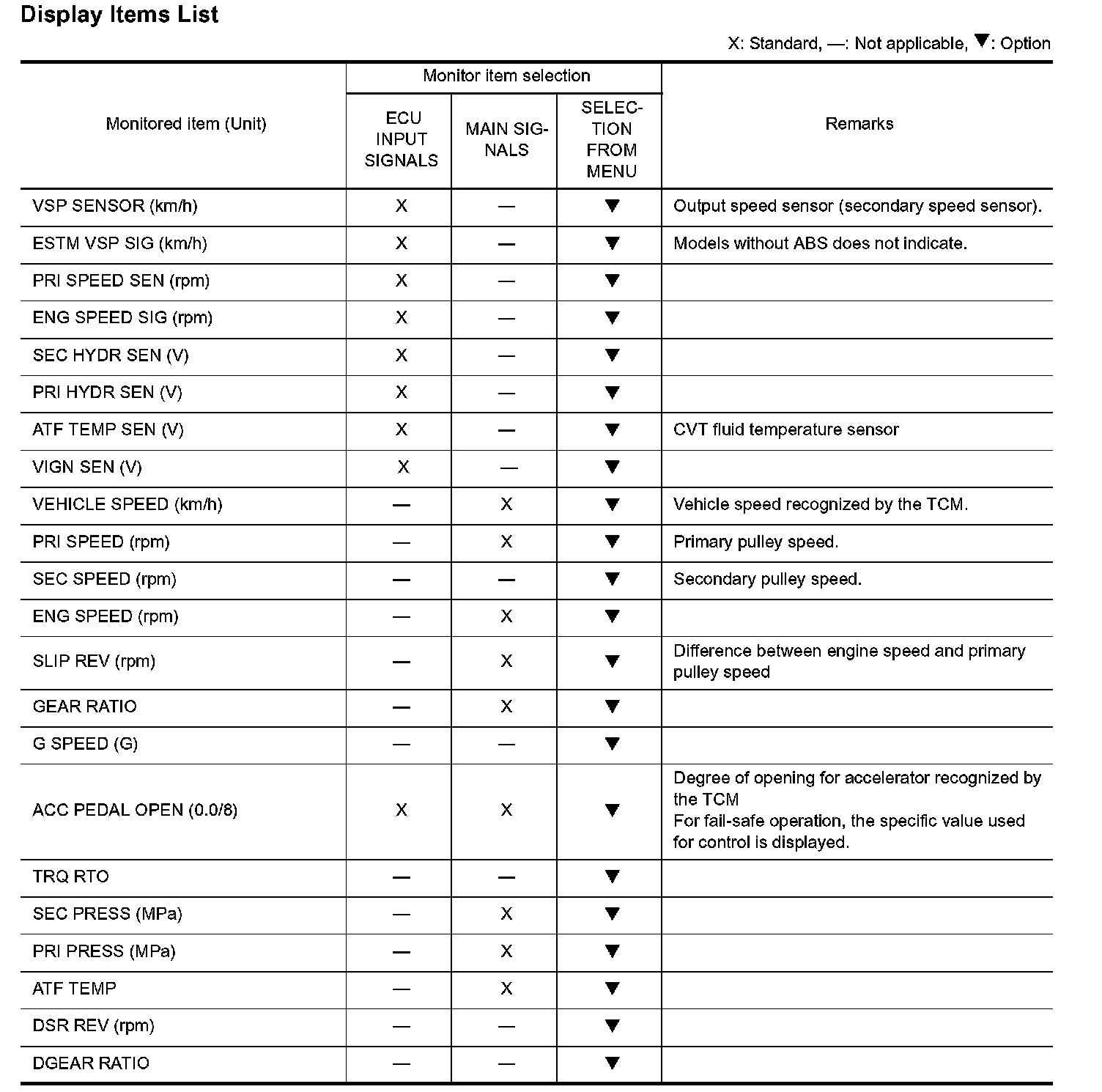

Display Items List (Part 1):

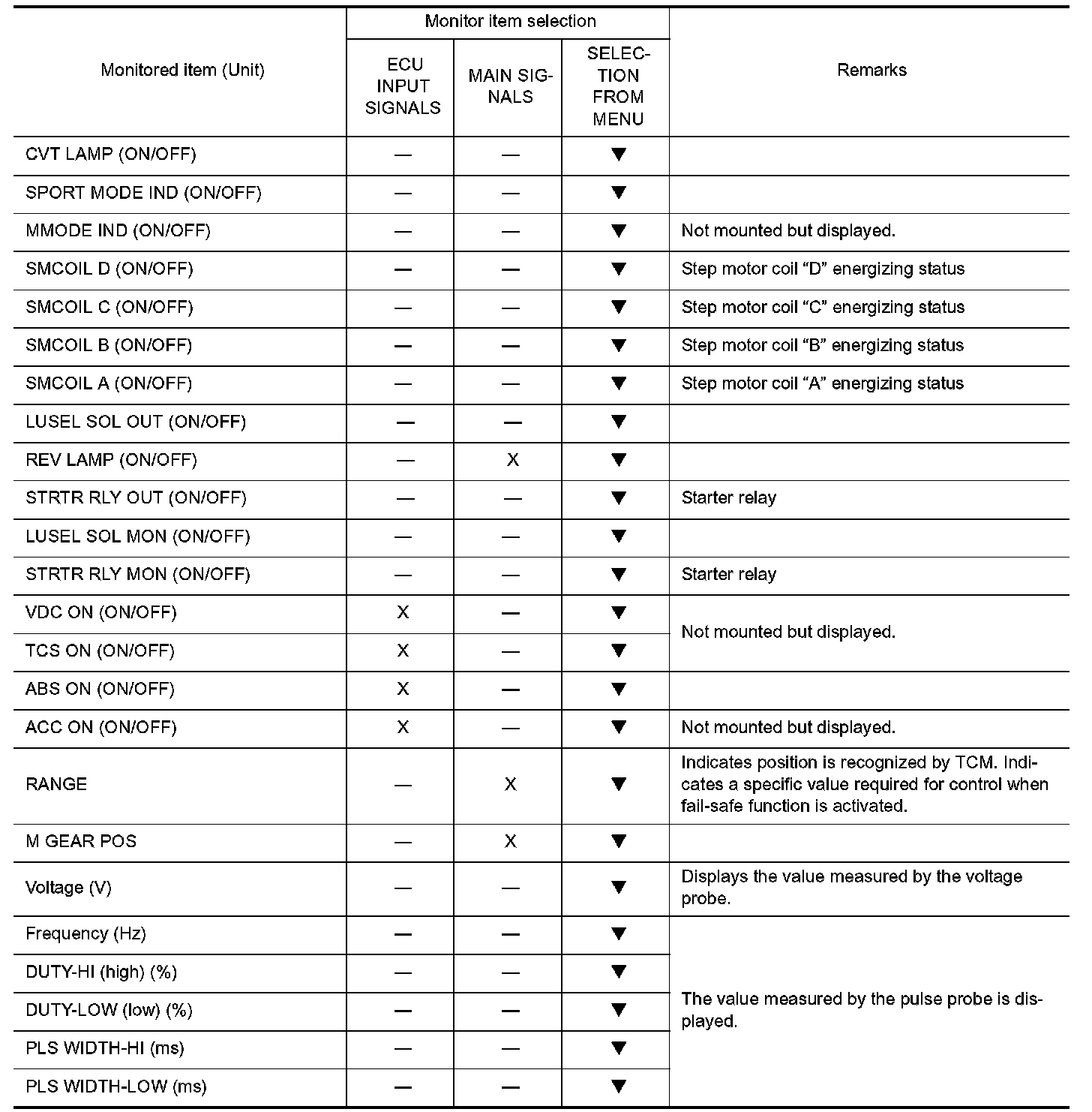

Display Items List (Part 2):

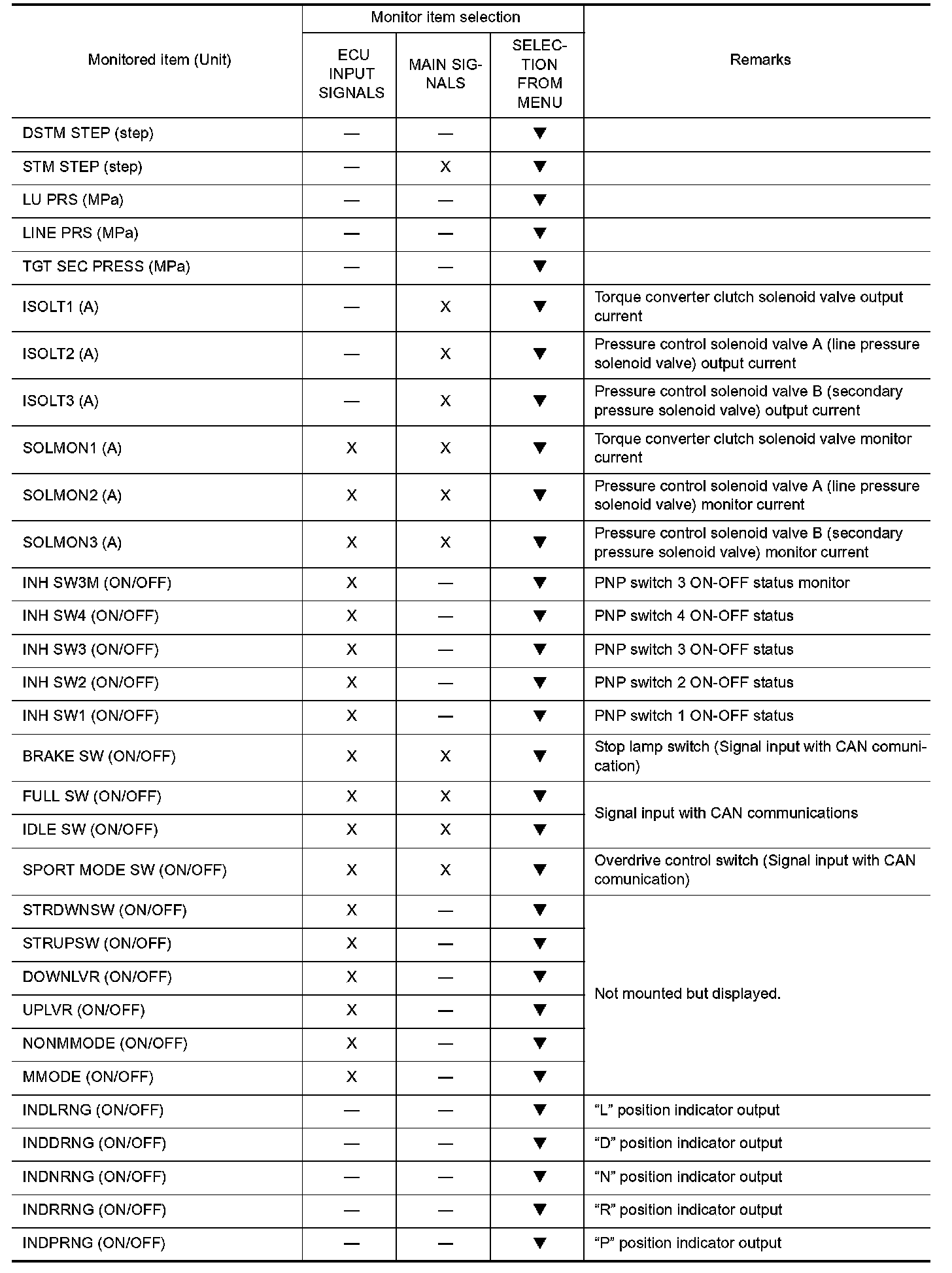

Display Items List (Part 3):
