Transmission Position Sensor/Switch: Service and Repair

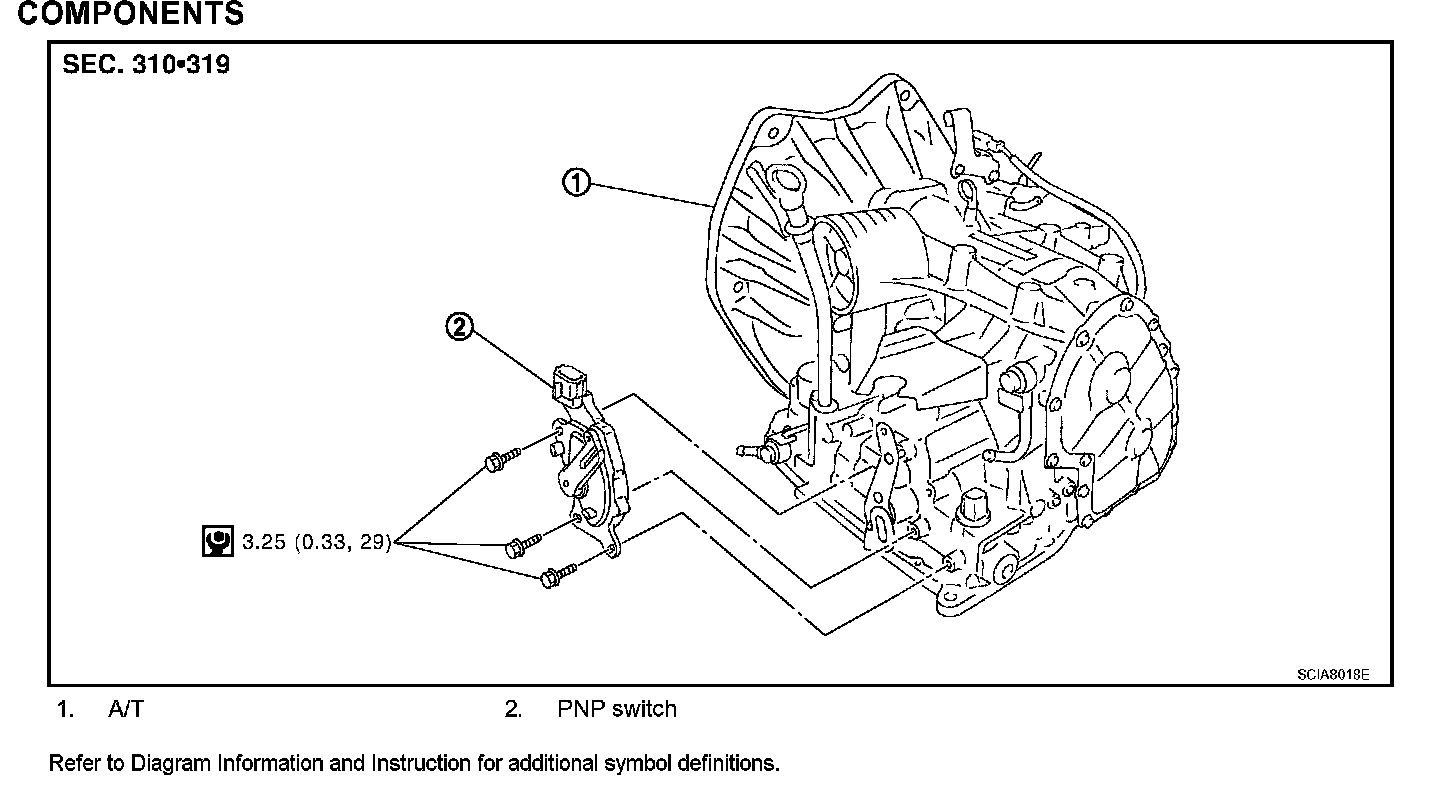

Park/Neutral Position (PNP) SwitchExploded View AT-230:
Exploded View AT-246:
REMOVAL AND INSTALLATION
Removal
1. Disconnect the battery negative terminal.
2. Remove air duct (inlet).

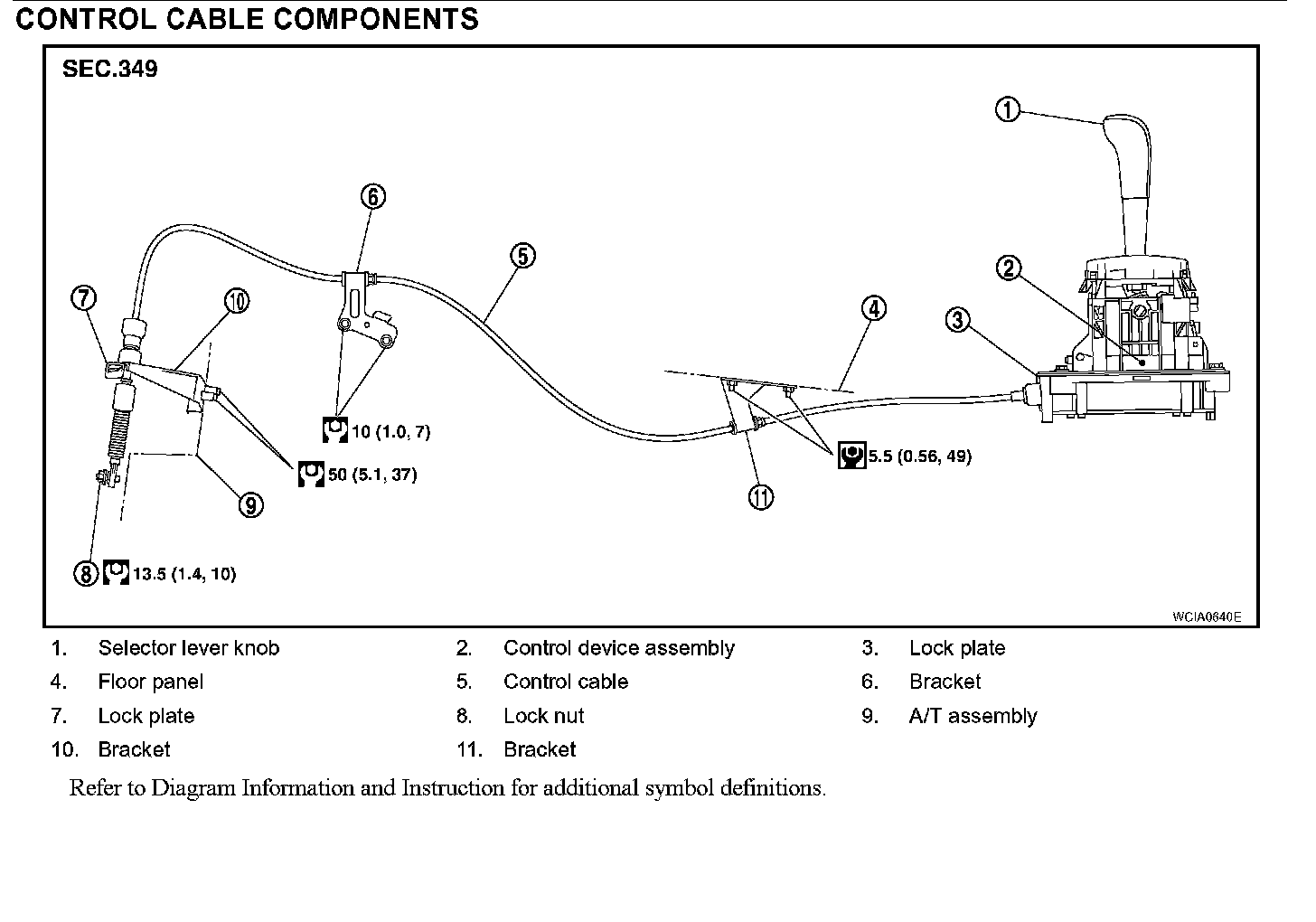

3. Remove control cable (1) from manual shaft. Refer to Exploded View.
4. Disconnect PNP switch harness connector (2).
5. Remove PNP switch bolts.
6. Set manual shaft in "P" position.
7. Remove PNP switch from A/T.
Installation
Installation is in the reverse order of removal.
NOTE:
^ Align PNP switch position when installing.
^ After installation is completed, adjust and check the PNP switch and A/T position. Refer to AT-234, "Checking of A/T Position". Testing and Inspection
^ After installation is completed, check continuity of PNP switch. Refer to AT-191, "PNP SWITCH". PNP, OD Switch and Closed Throttle, Wide Open Throttle Position Signal Circuit
