Diagnostic Procedure 6

Trouble Diagnosis Without CONSULT-III

DIAGNOSTIC PROCEDURE 6

Inspect SRS Malfunction Using "AIR BAG" Warning Lamp-Diagnosis Mode

NOTE: SRS will not enter Diagnosis mode if no malfunction is detected in User mode.

1. Turn ignition switch ON.
2. After "AIR BAG" warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3. Wait more than 3 seconds.
4. Repeat steps 1 to 3 two times.
5. Turn ignition switch ON.

SRS is now in Diagnosis mode.
"AIR BAG" warning lamp operates in Diagnosis mode according to the Warning Lamp Flash Code Chart.

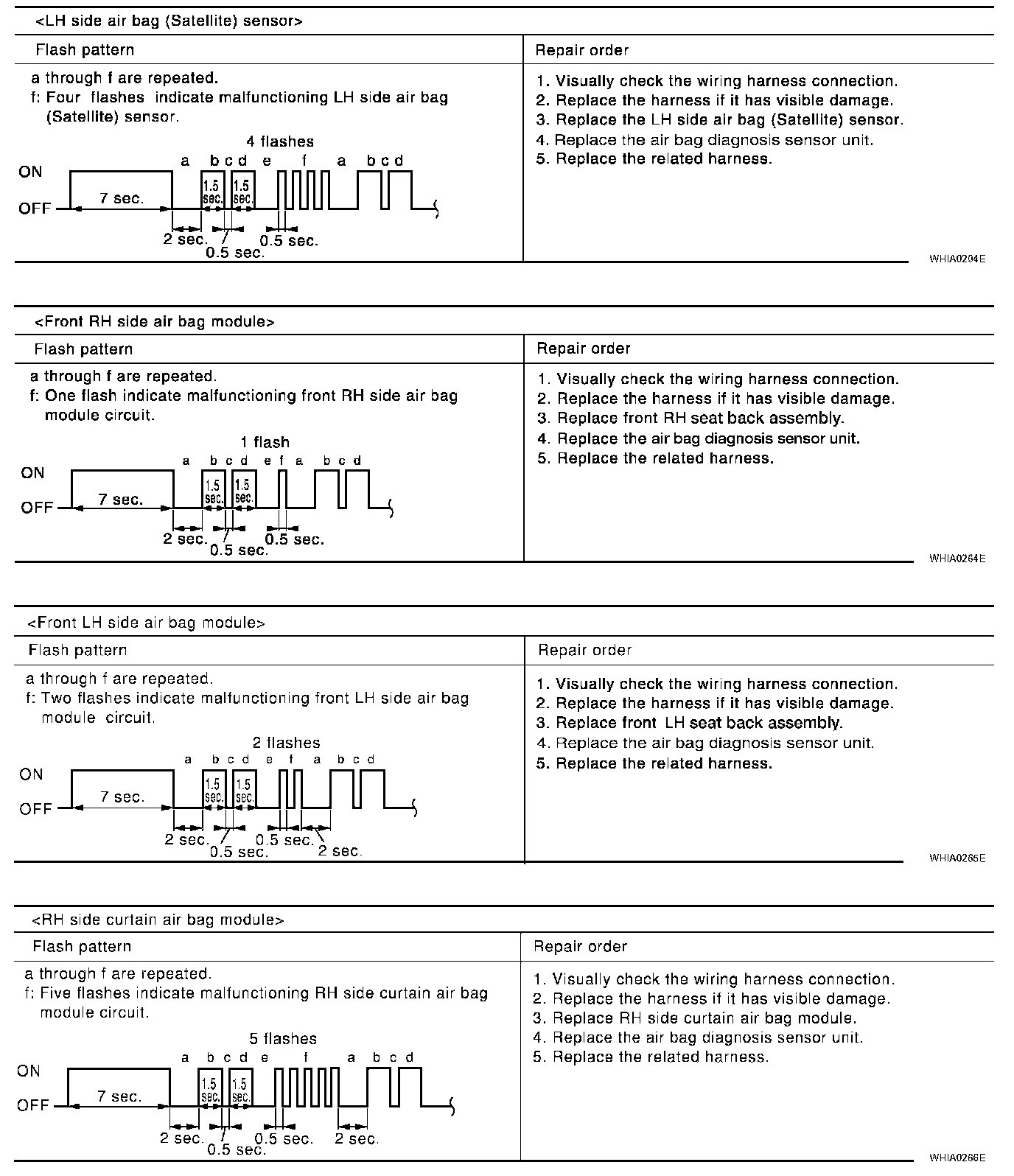

Warning Lamp Flash Code Chart (Part 1):

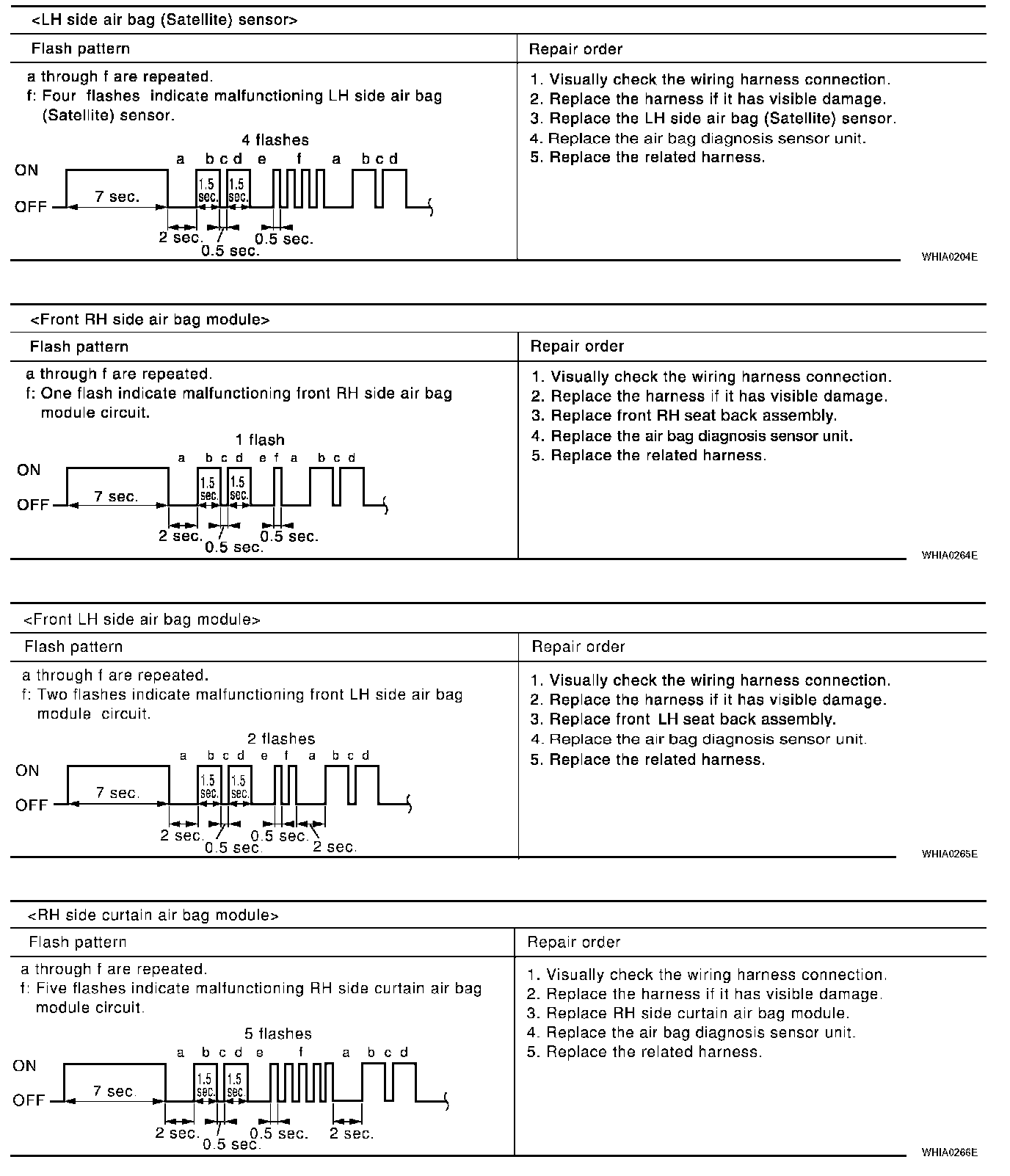

Warning Lamp Flash Code Chart (Part 2):

Warning Lamp Flash Code Chart (Part 3):

Warning Lamp Flash Code Chart (Part 4):

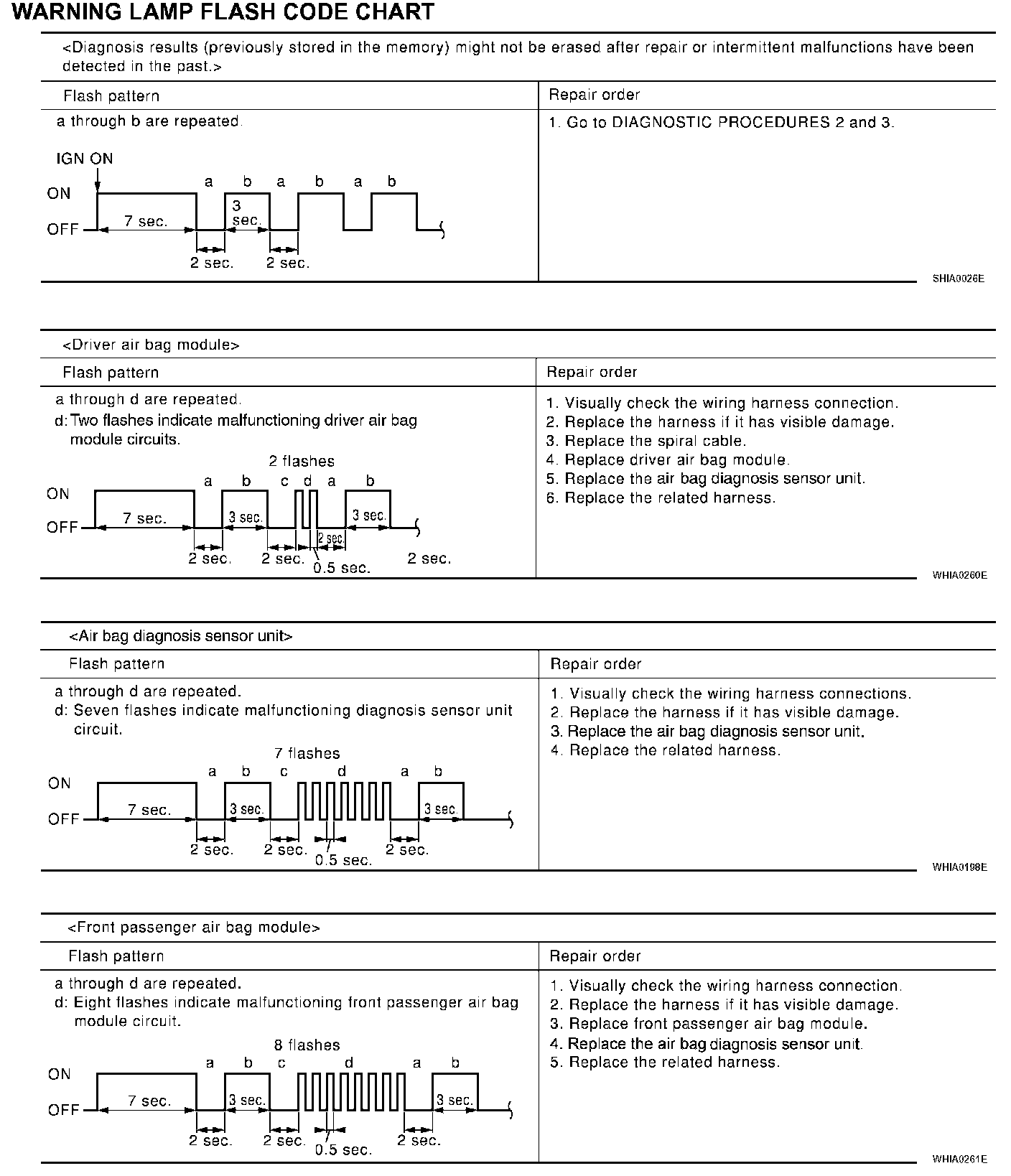

WARNING LAMP FLASH CODE CHART
