Home >> Nissan-Datsun >> 2007 >> Maxima V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Consult-II Reference Value

Consult-II Reference Value

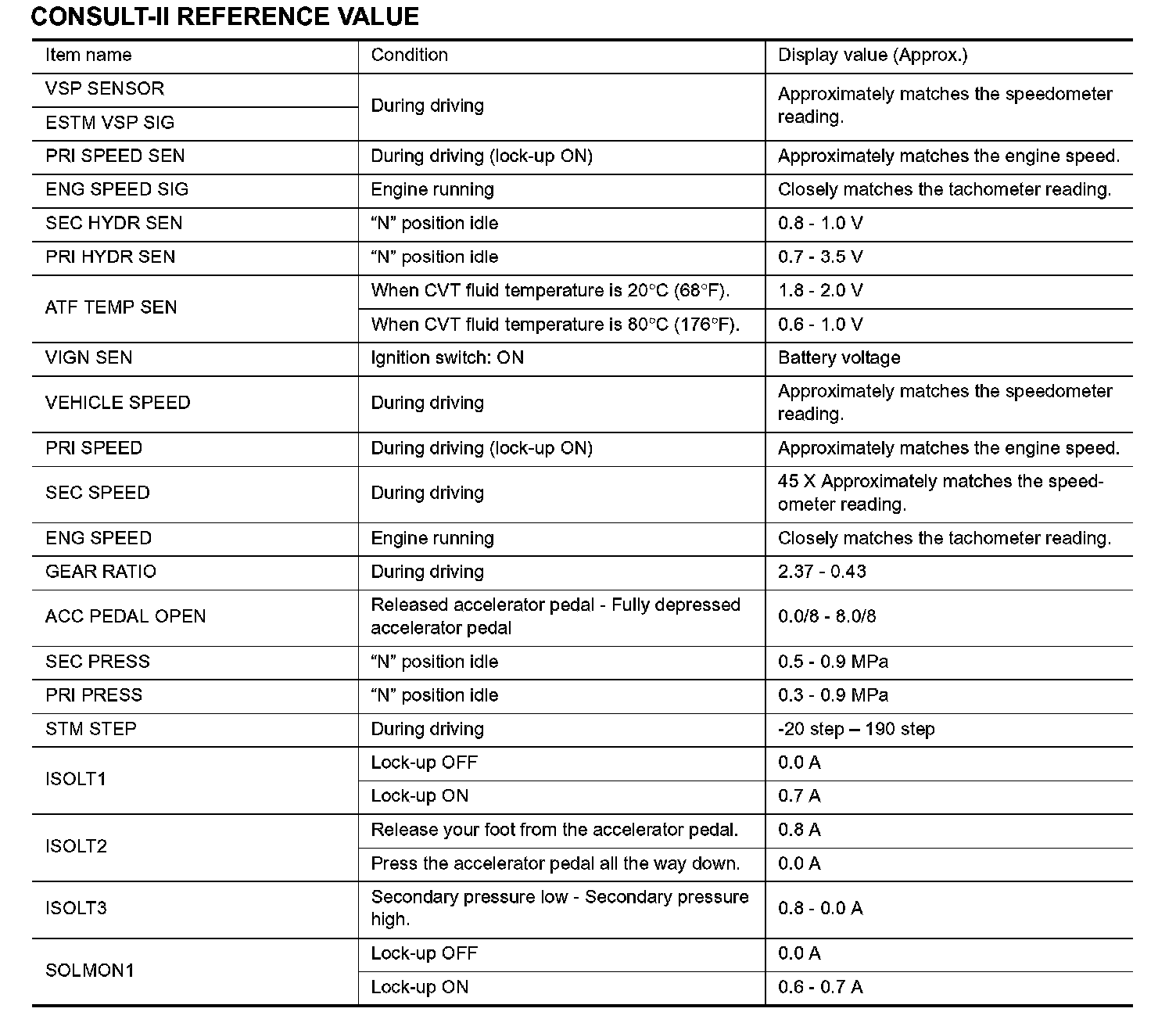

CONSULT-II REFERENCE VALUE (Part 1):

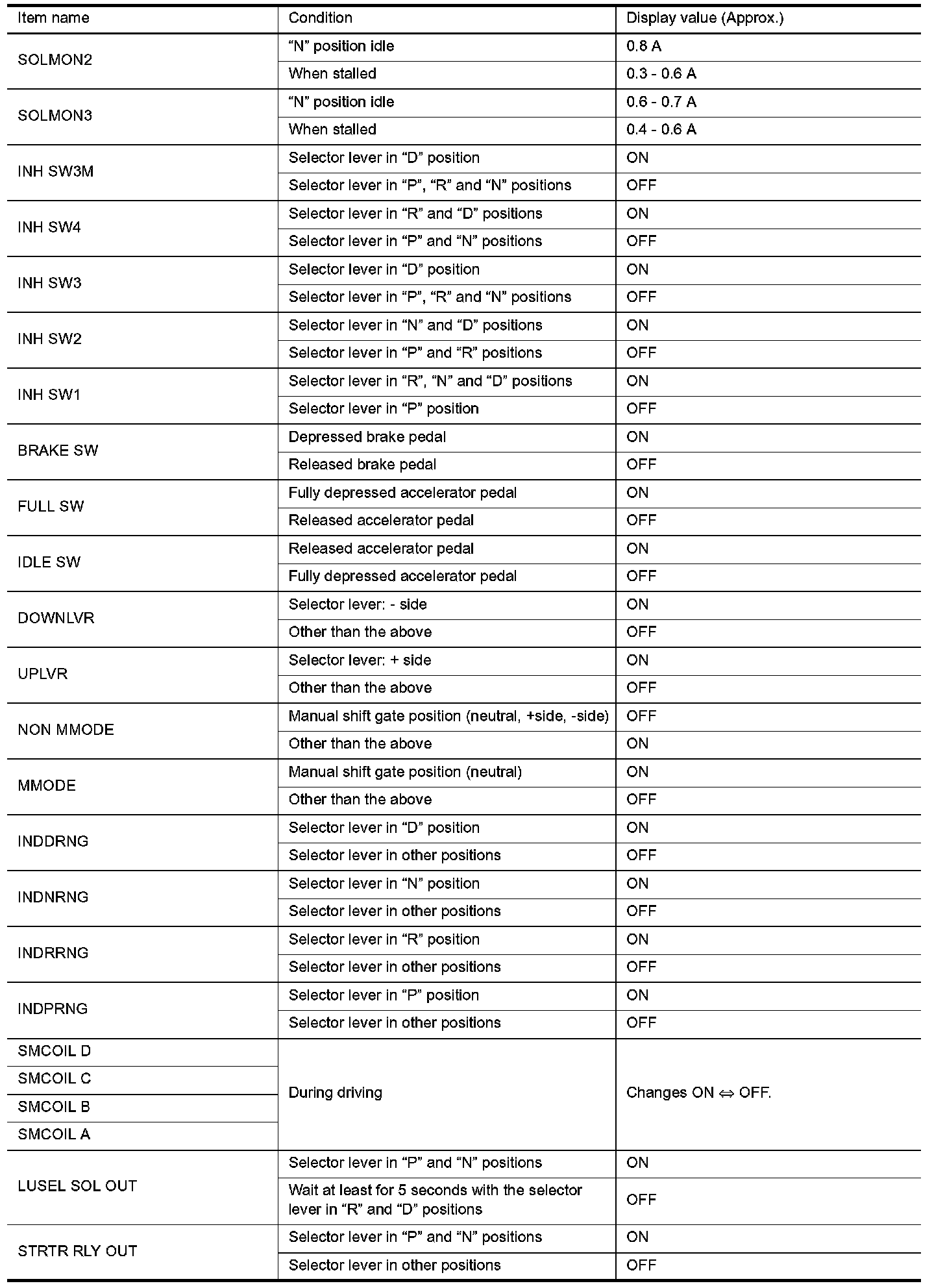

CONSULT-II REFERENCE VALUE (Part 2):



CONSULT-II REFERENCE VALUE (Part 3):
