System Specifications

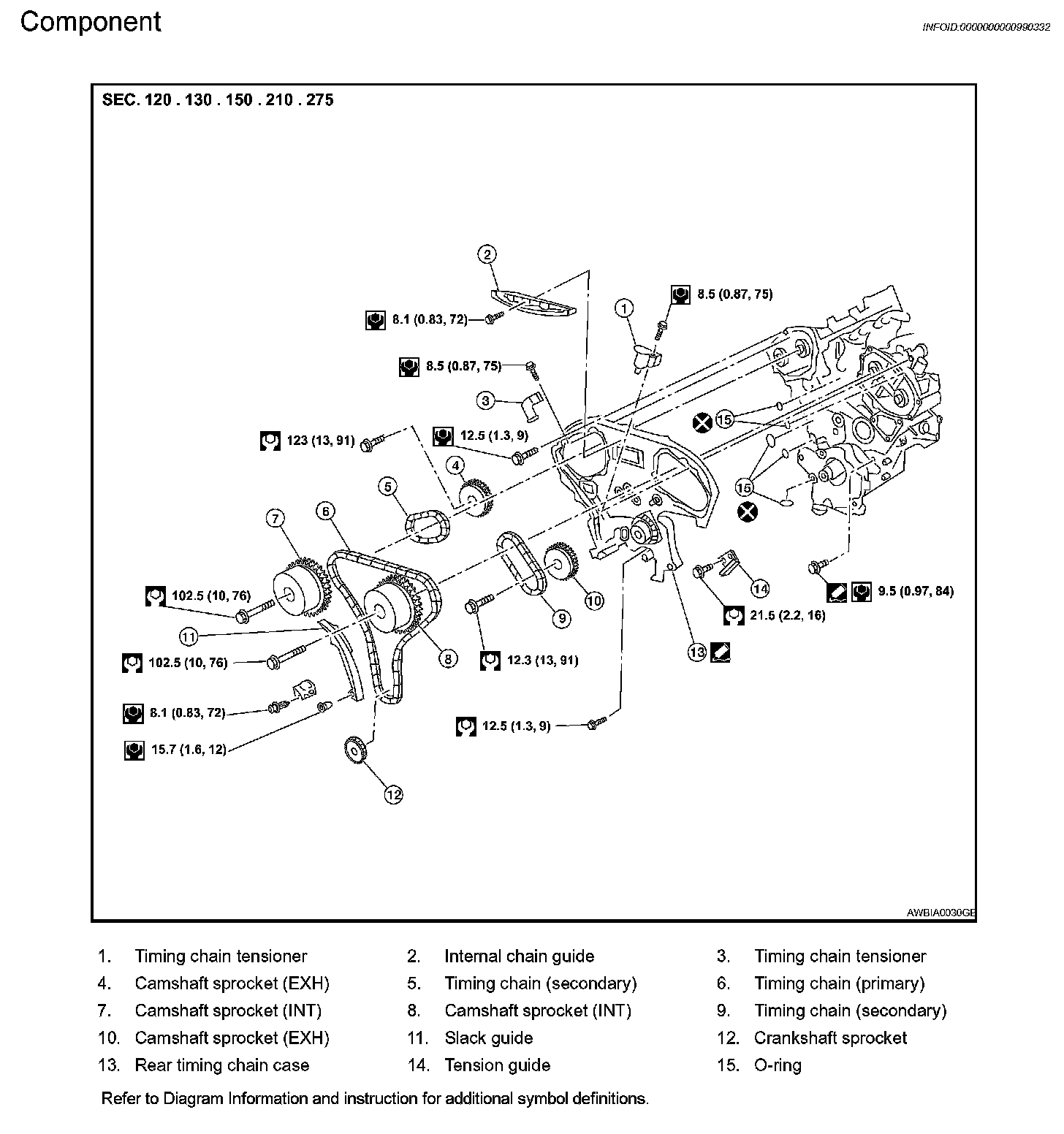

Exploded View EM-162:

Timing Chain Tensioner

Crankshaft Pulley





Install crankshaft pulley and tighten the bolt in two steps.
Lubricate thread and seat surface of the bolt with new engine oil.
Apply a paint mark for the second step of angle tightening.
Step 1 44 Nm (4.5 kg-m, 32 ft-lb)
Step 2 84° - 90° degrees clockwise
Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.

Timing Cover





Loosely install the front timing chain case bolts.
Bolt position Bolt diameter
1, 2 8 mm (0.31 inch)
3-22 6 mm (0.24 inch)
Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft. lbs.)
3-22 12.8 Nm (1.3 kg-m, 9 ft. lbs.)
