Air Flow Meter/Sensor: Service and Repair

AIR CLEANER AND AIR DUCT

Removal and Installation

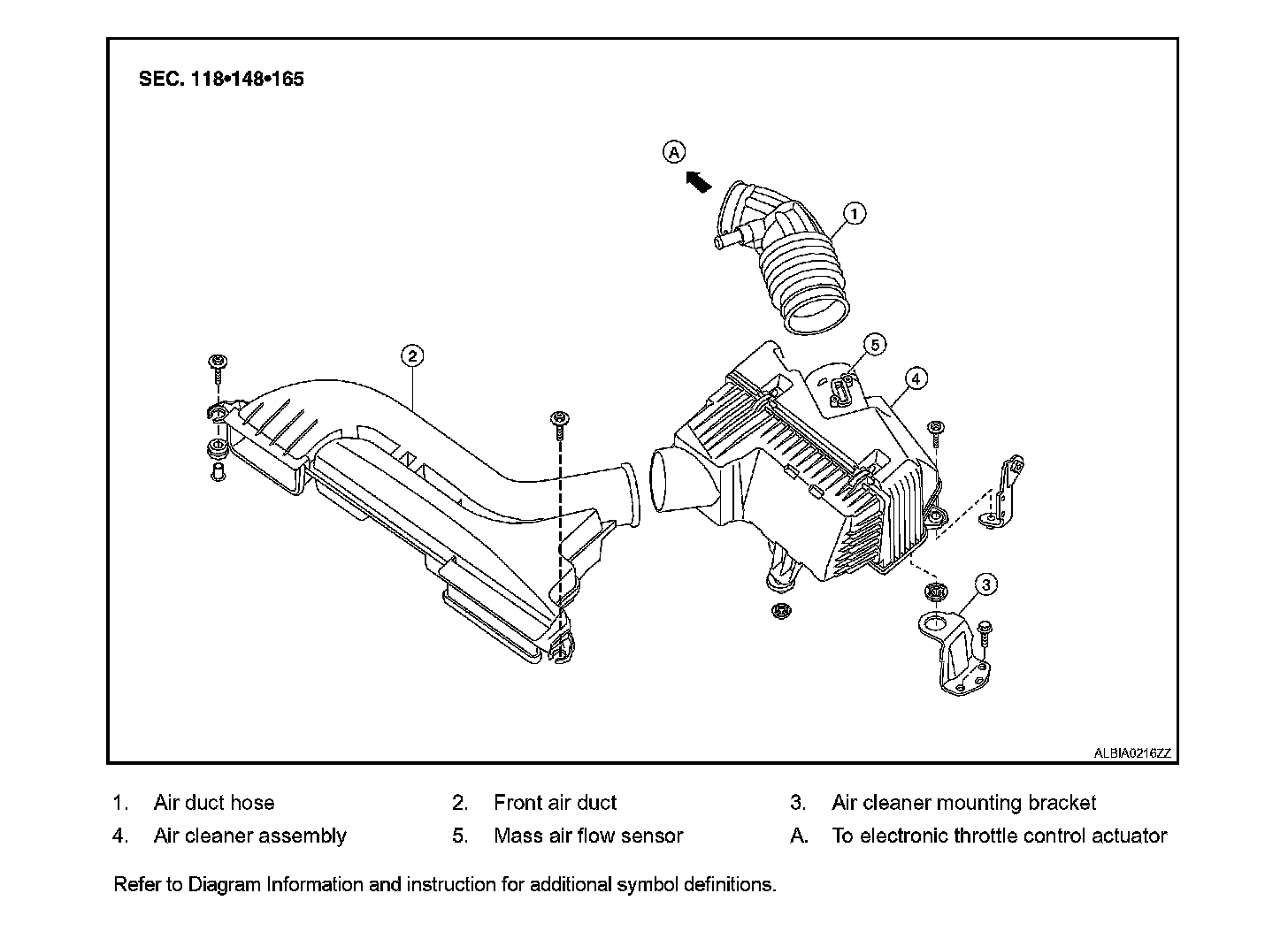

Exploded View EM-132:

REMOVAL
1. Remove front air duct.
2. Disconnect the tube clamp at the electric throttle control actuator and at the fresh air intake tube.
3. Remove fresh air intake hose.
4. Disconnect mass air flow sensor.
5. Remove mass air flow sensor from air cleaner case (upper), as necessary.

CAUTION:
Handle mass air flow sensor with care.
^ Do not shock it.
^ Do not disassemble it.
^ Do not touch its sensor.

6. Remove air cleaner assembly, as necessary.

INSTALLATION
Installation is in the reverse order of removal.
