Power Distribution Module
Power Distribution Module

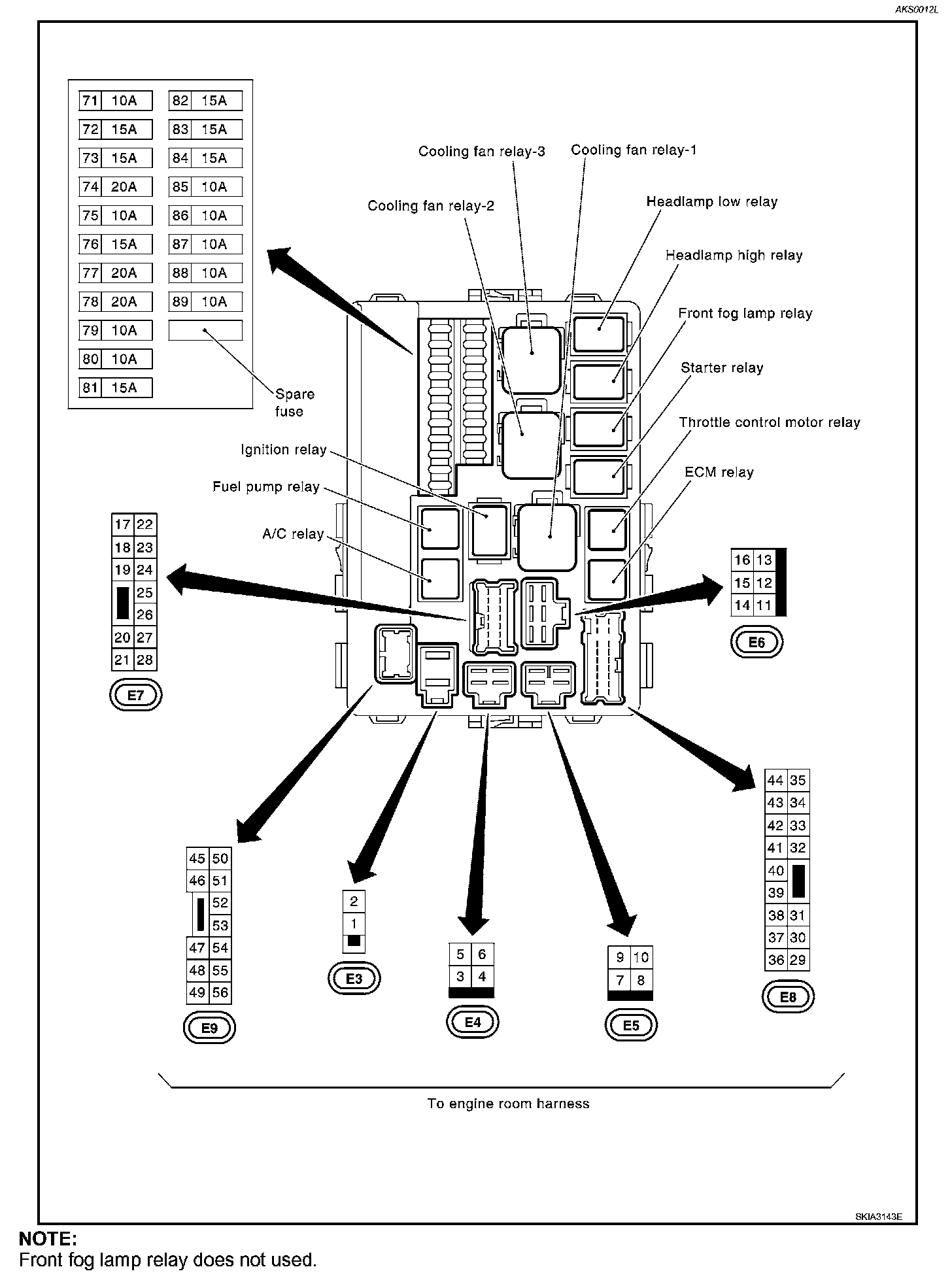

IPDM E/R Terminal Arrangement:

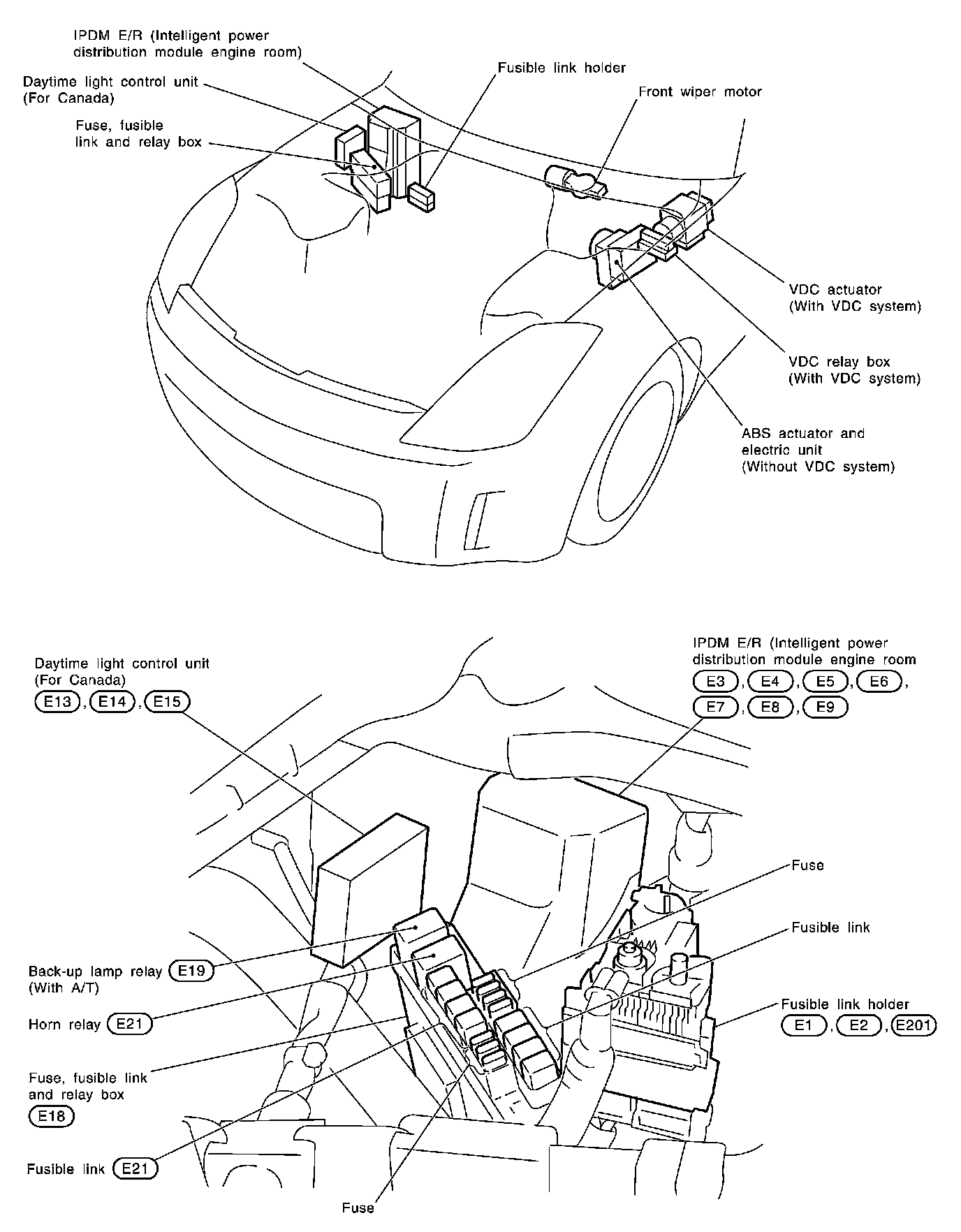

Electrical Units Location Engine Compartment:

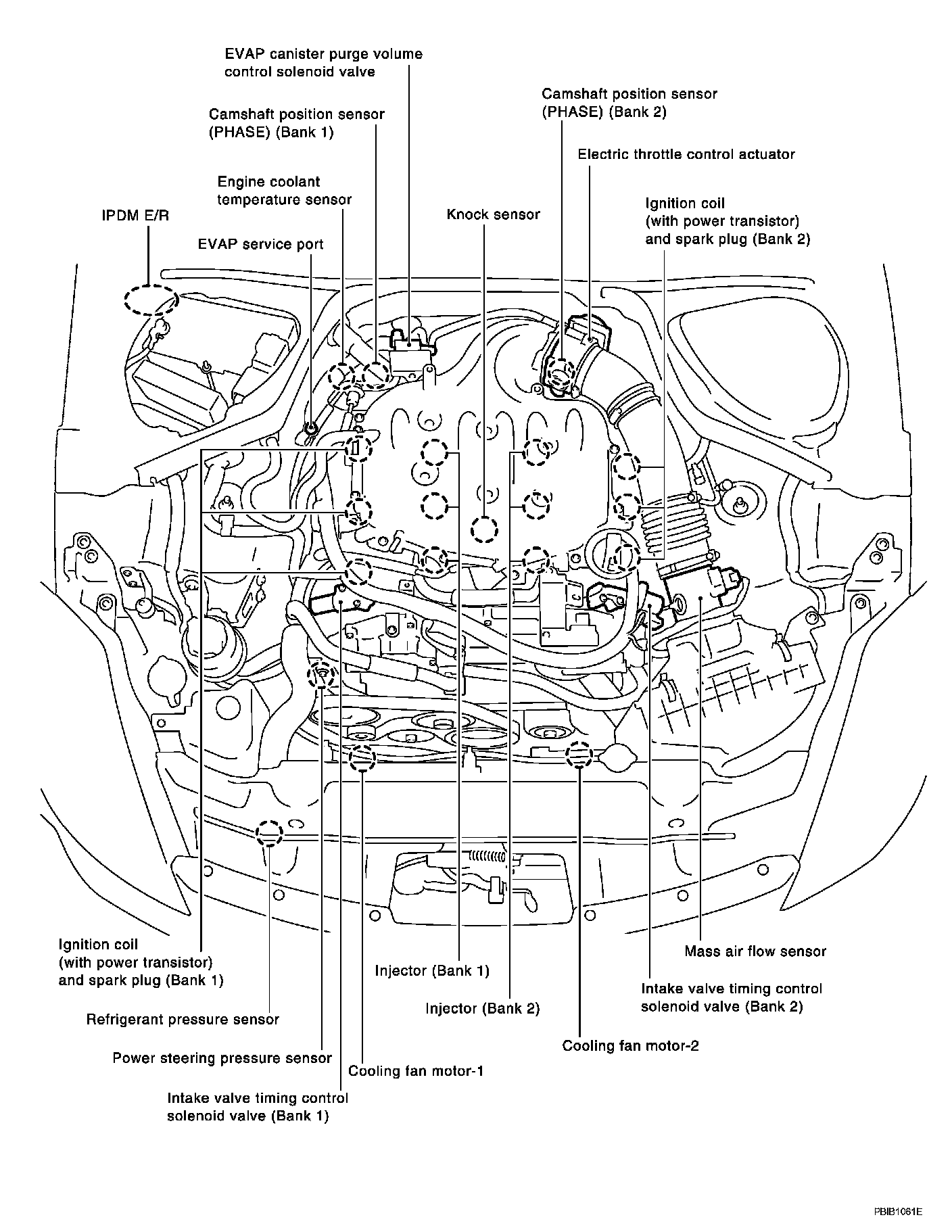

Engine Control Component Parts Location:
