Control Module Pinout Values

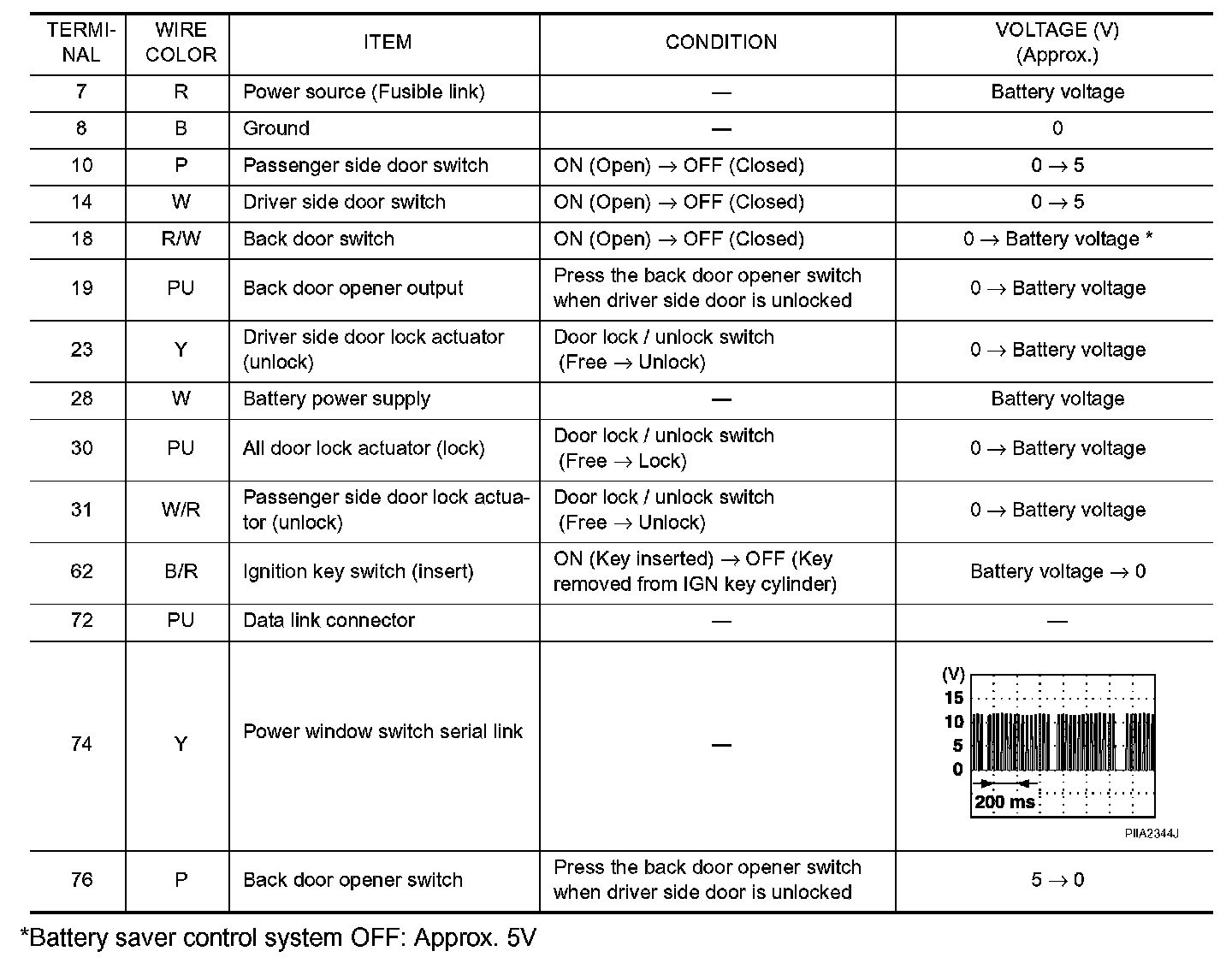

Terminals And Reference Value For BCM:



Terminals And Reference Value For Power Window Main Switch:
