Diagnostic Procedure 1

Checking SRS operation by using "AIR BAG" warning lamp - User mode





1. After turning ignition switch from "OFF" to "ON", "AIR BAG" warning lamp operates.





2. Compare "AIR BAG" warning lamp operation to the chart.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 3 Diagnostic Procedure 3(step 4).

Checking seat belt pre-tensioner operation by using "SEAT BELT" Warning lamp - User mode

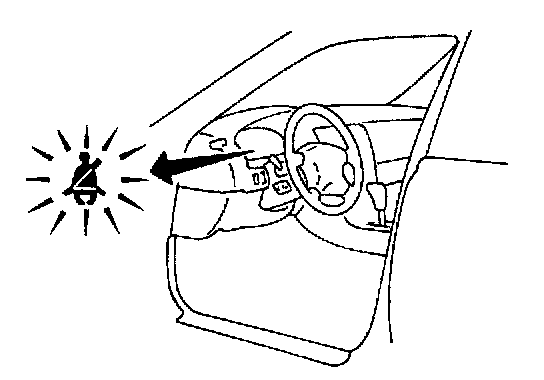

1. After turning ignition switch from "OFF" to "ON", "SEAT BELT' warning lamp operates.

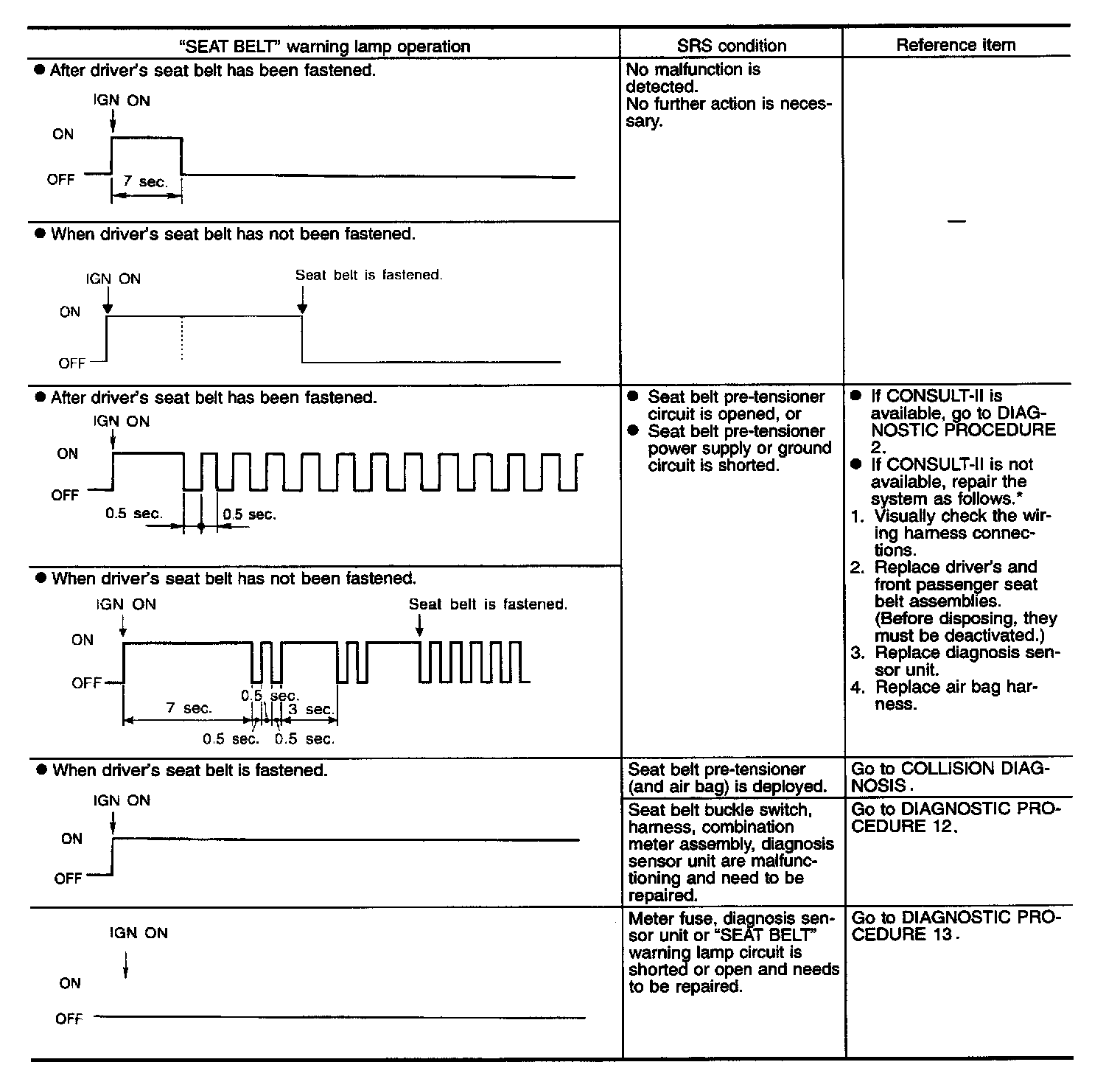

2. Compare "SEAT BELT" warning lamp operation to the chart.
