Engine Control Module

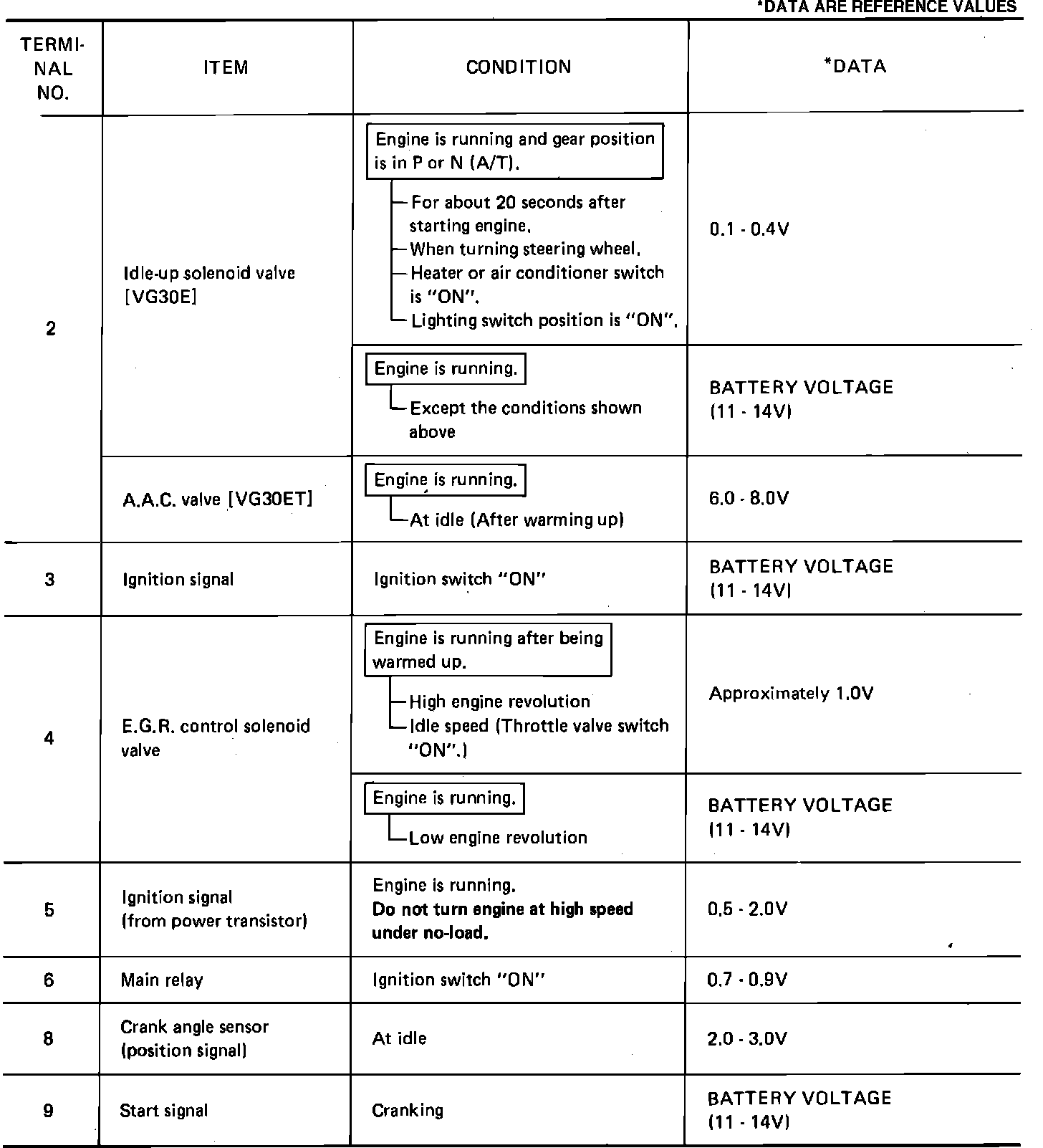

Fig. 299a Input/Output signal inspection chart.:

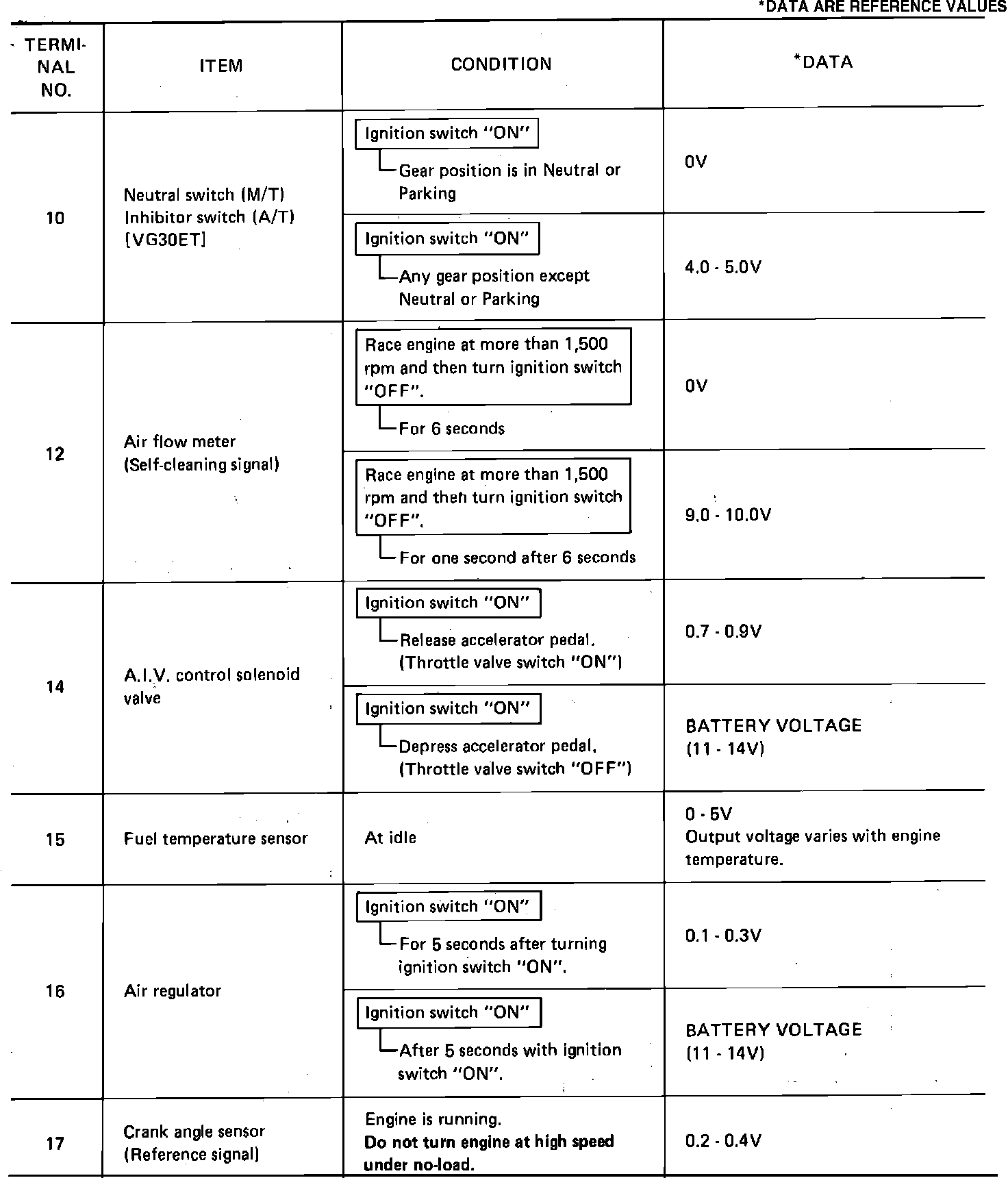

Fig. 299b Input/Output signal inspection chart.:

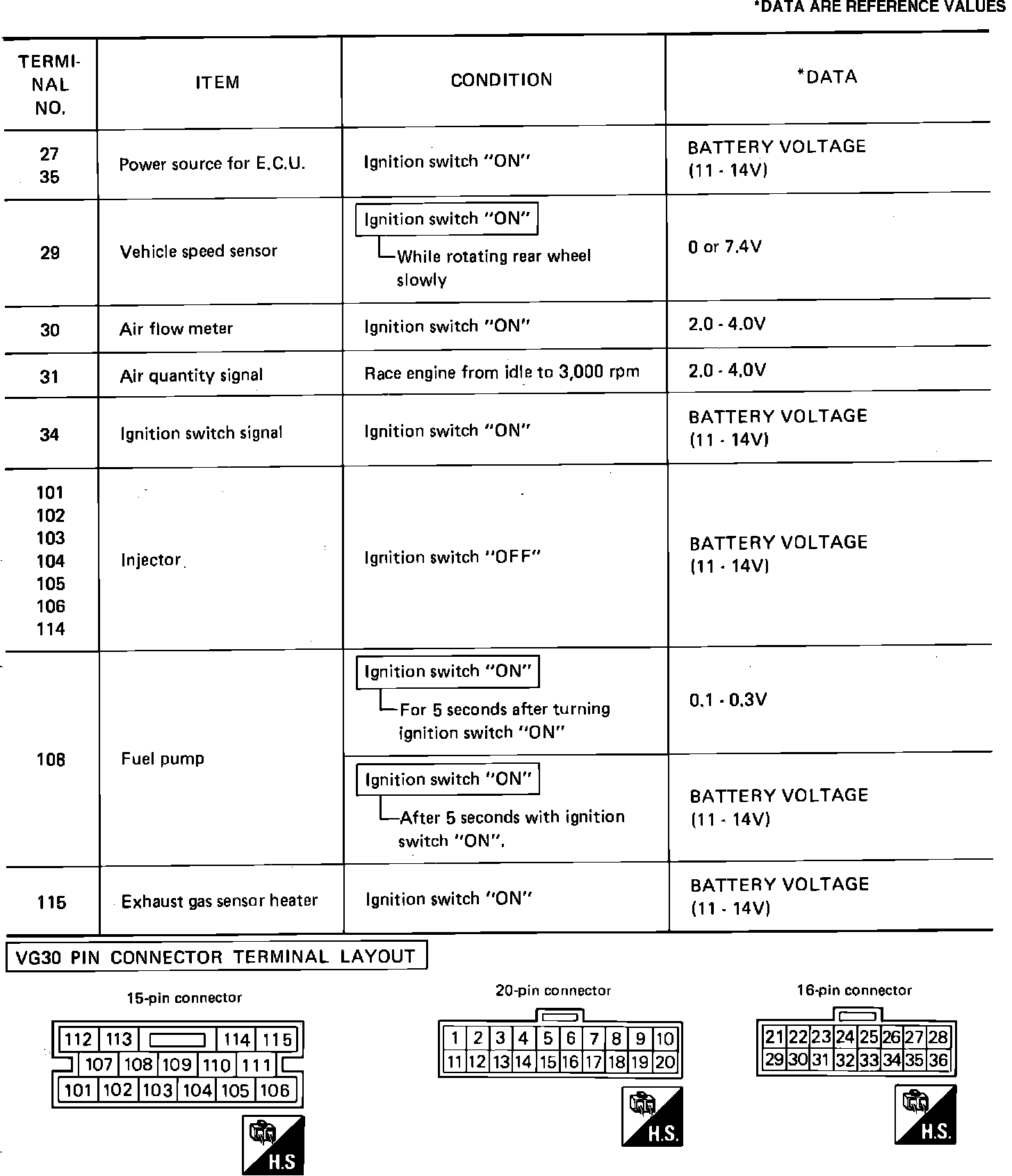

Fig. 299c Input/Output signal inspection chart.:

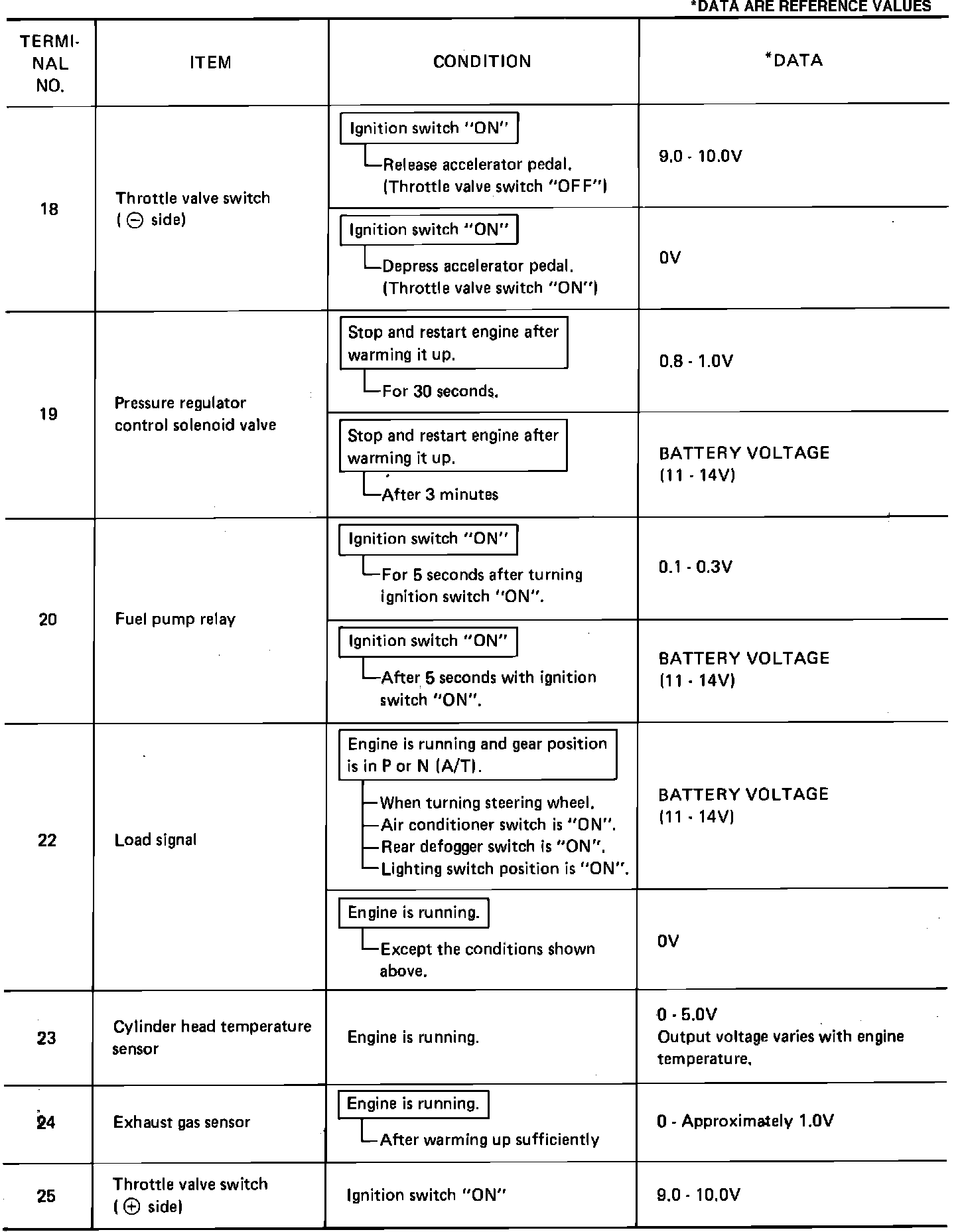

Fig. 299d Input/Output signal inspection chart.:
