Terminals and Reference Value For Intelligent Key Unit

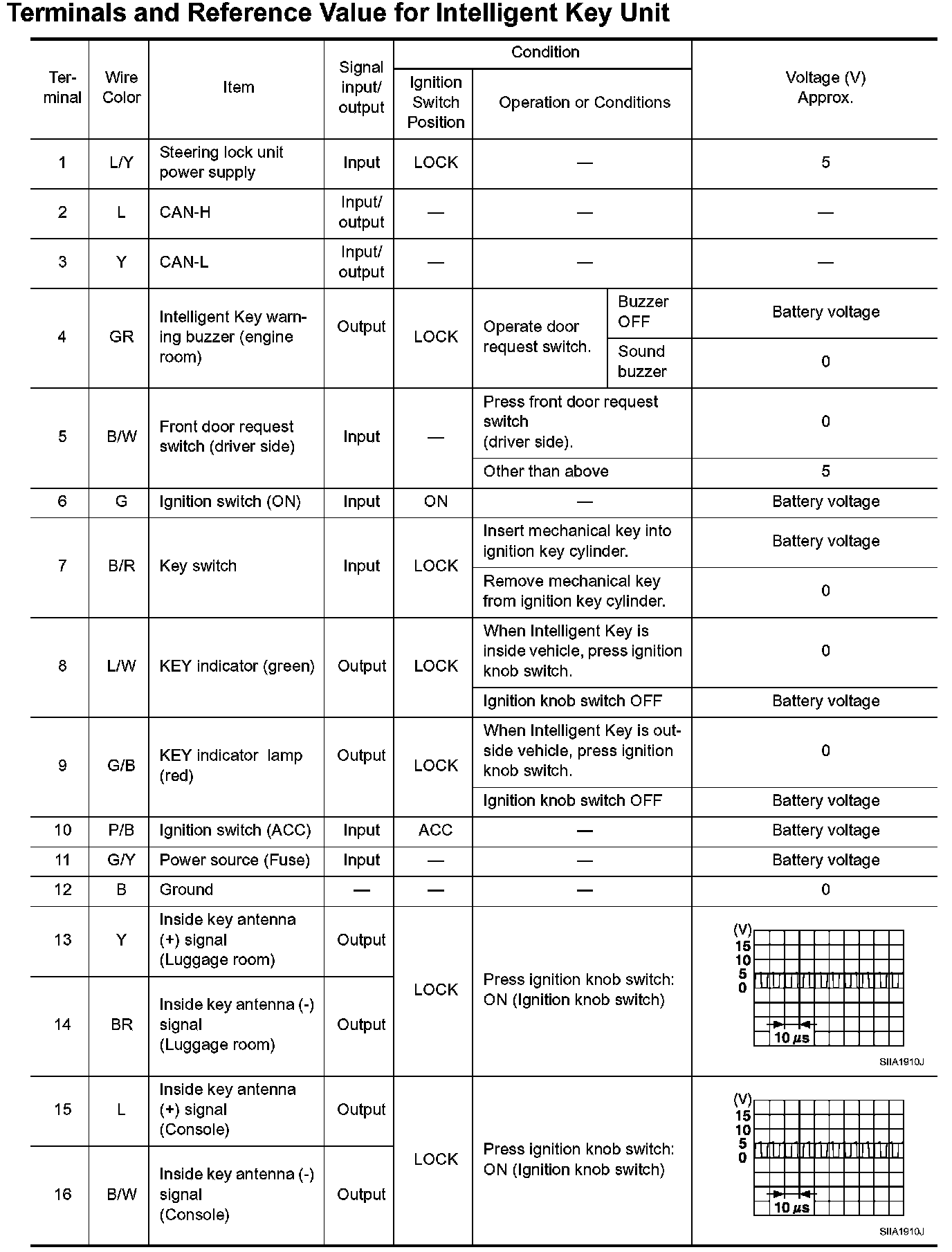

Terminals And Reference Value For Intelligent Key Unit Part 1:

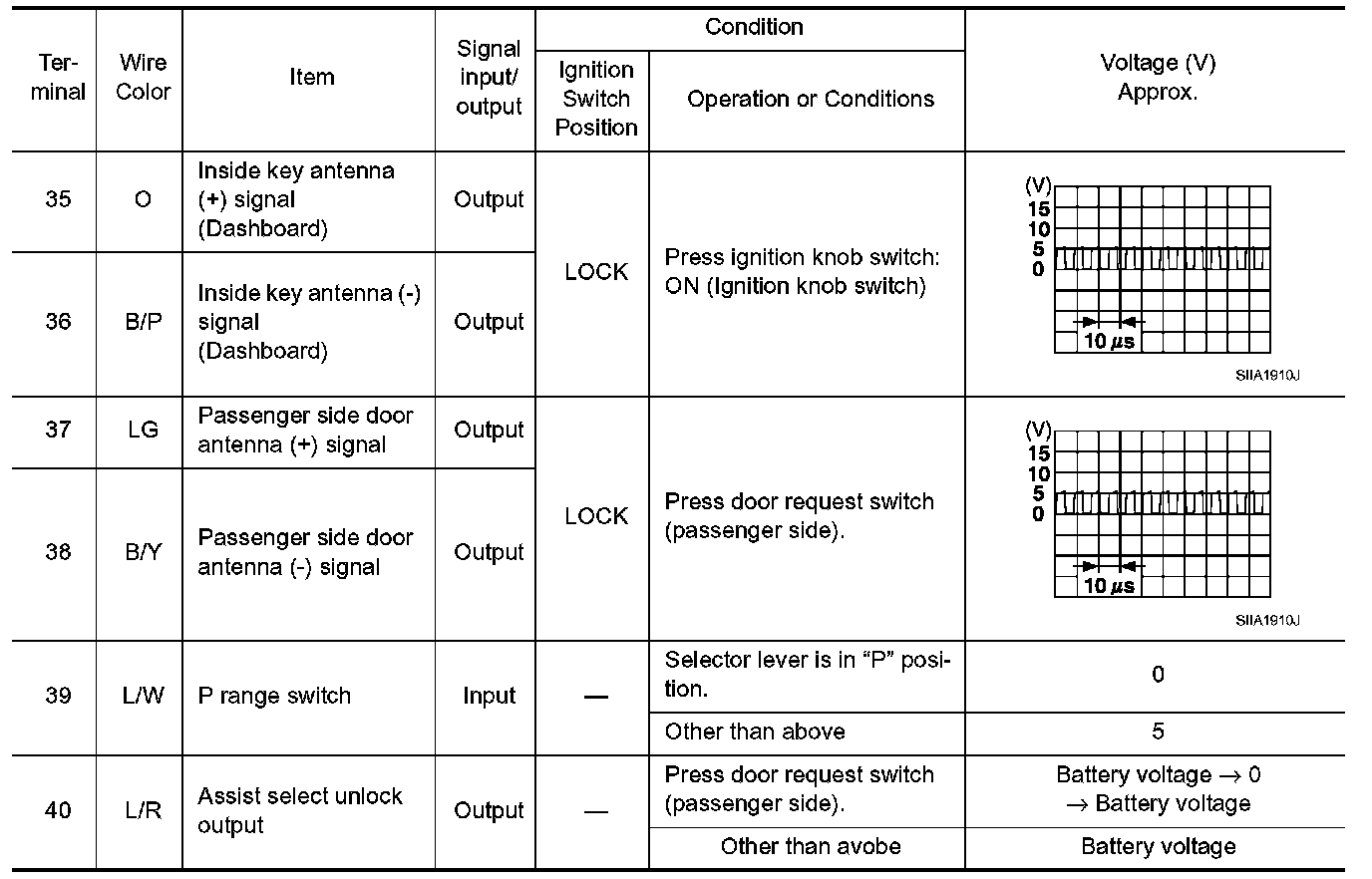

Terminals And Reference Value For Intelligent Key Unit Part 2:

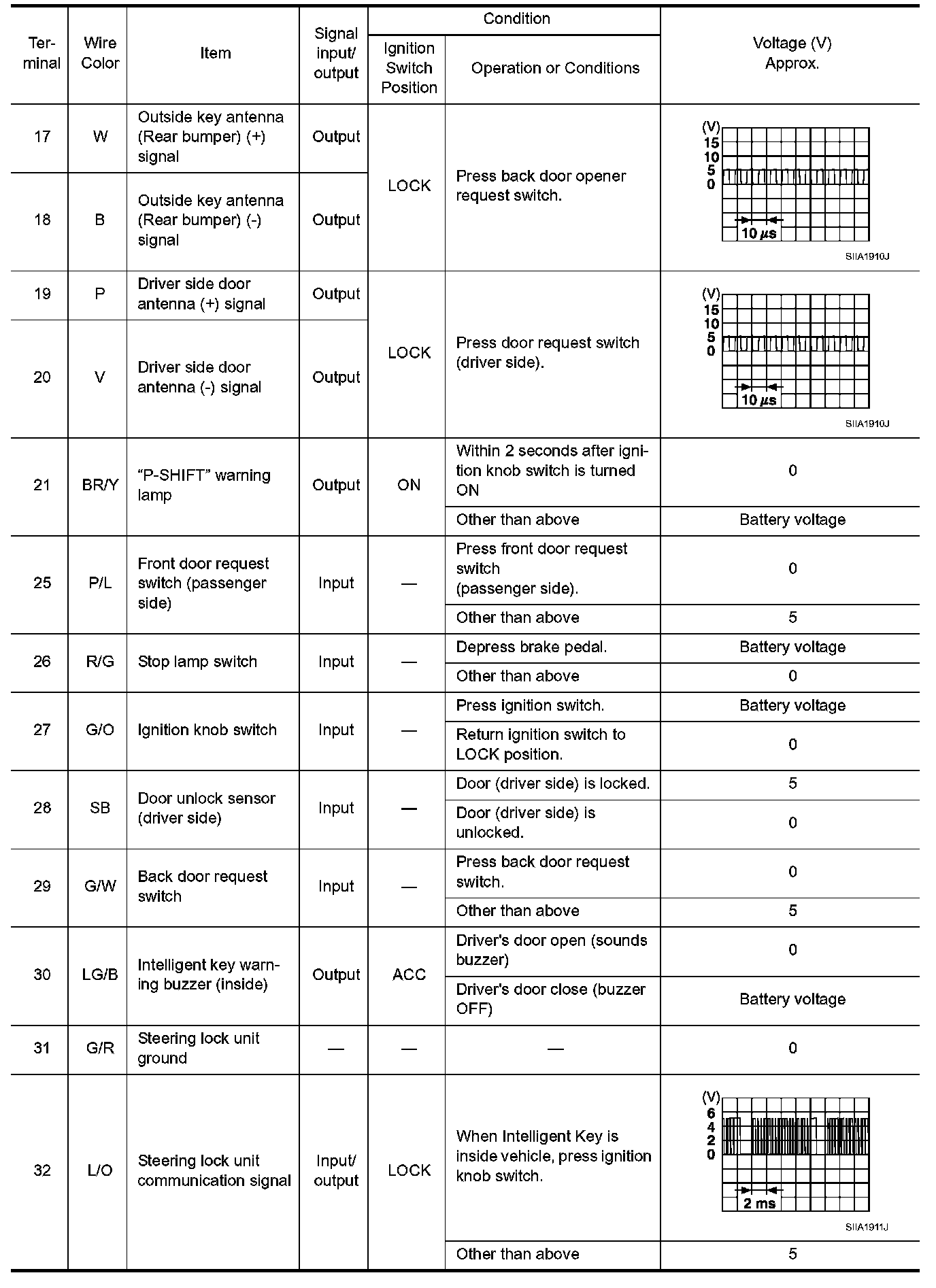

Terminals And Reference Value For Intelligent Key Unit Part 3:
