Engine Control Module

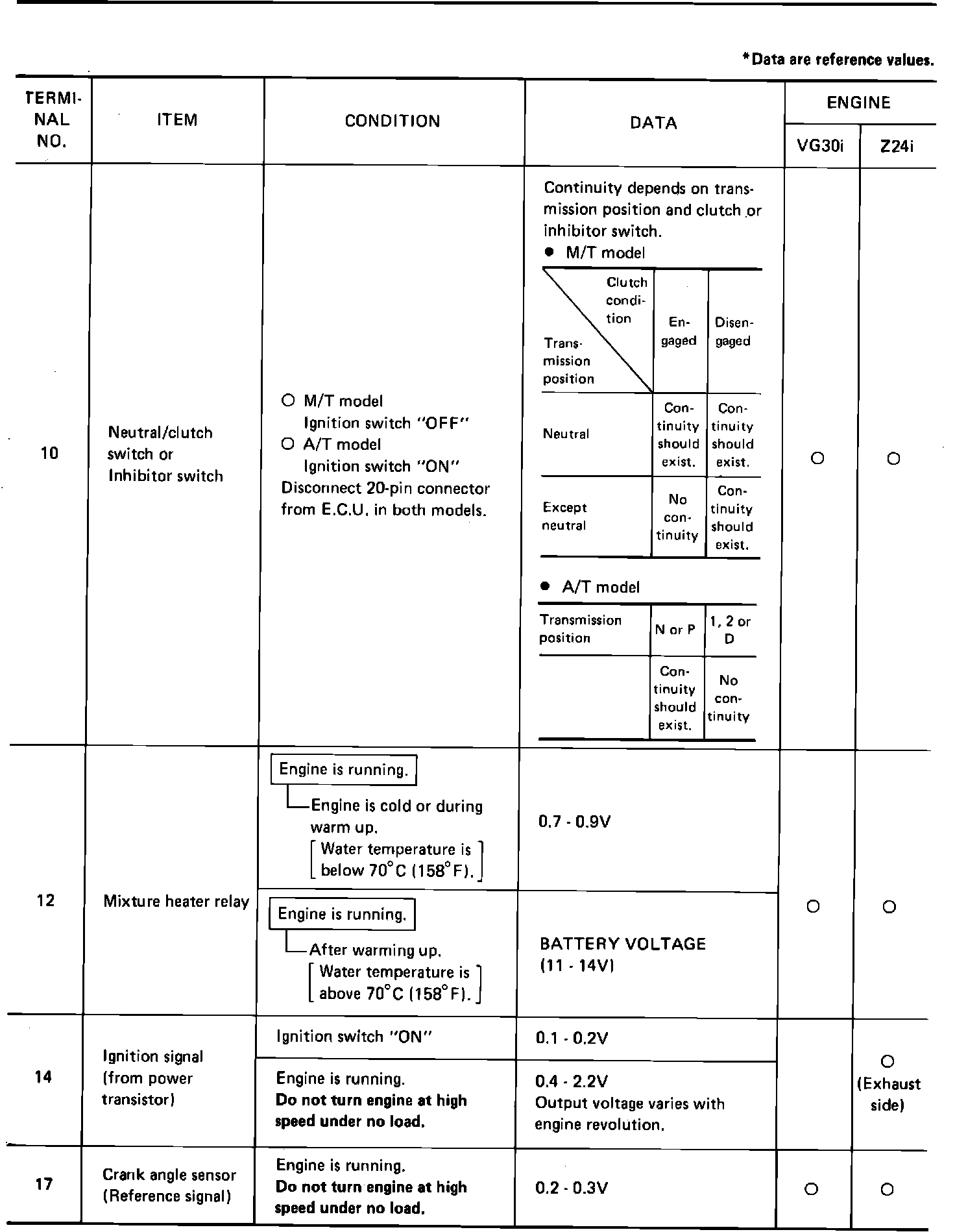

Fig. 307a Input/Output signal inspection chart..:

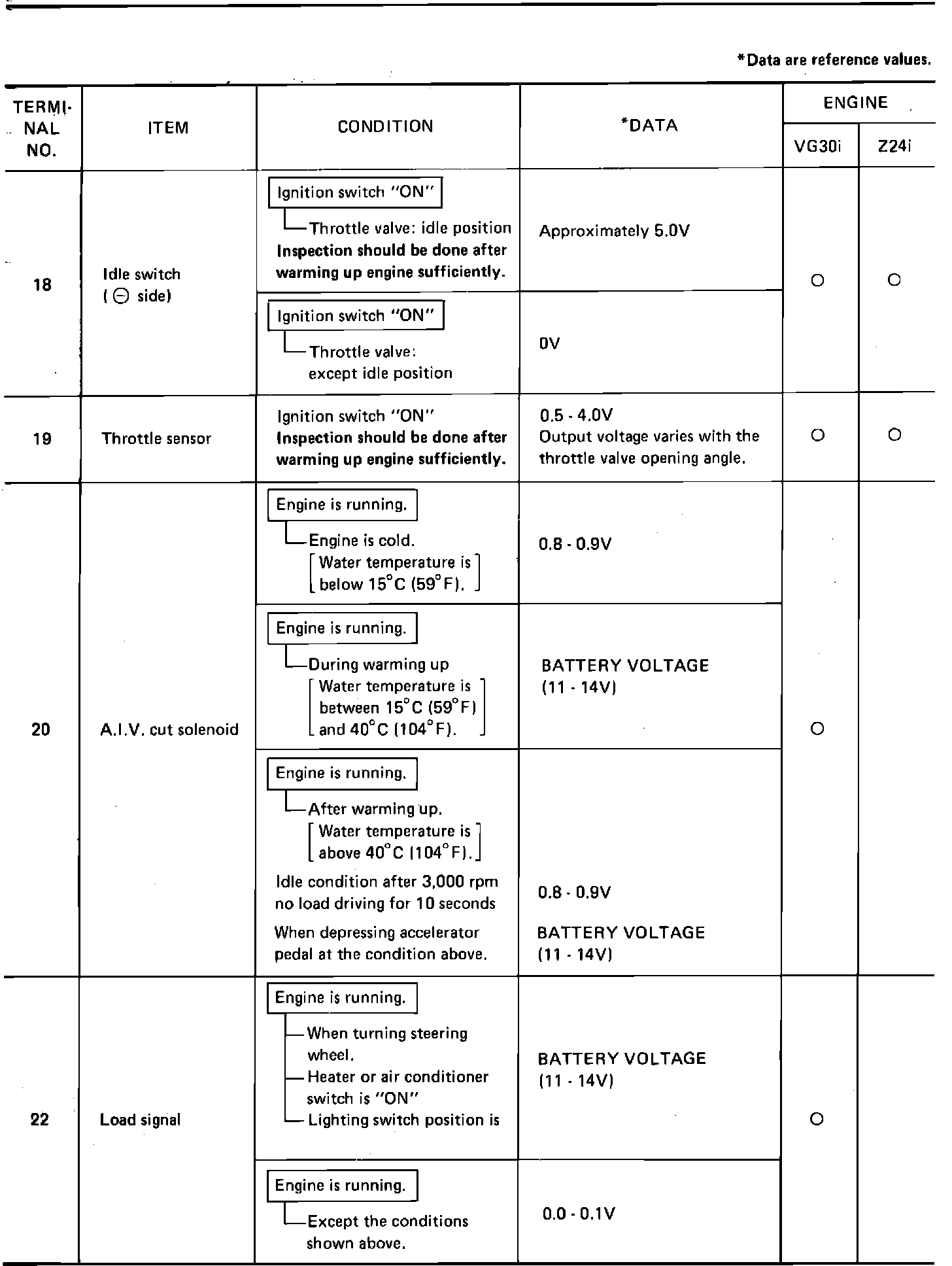

Fig. 307b Input/Output signal inspection chart.:

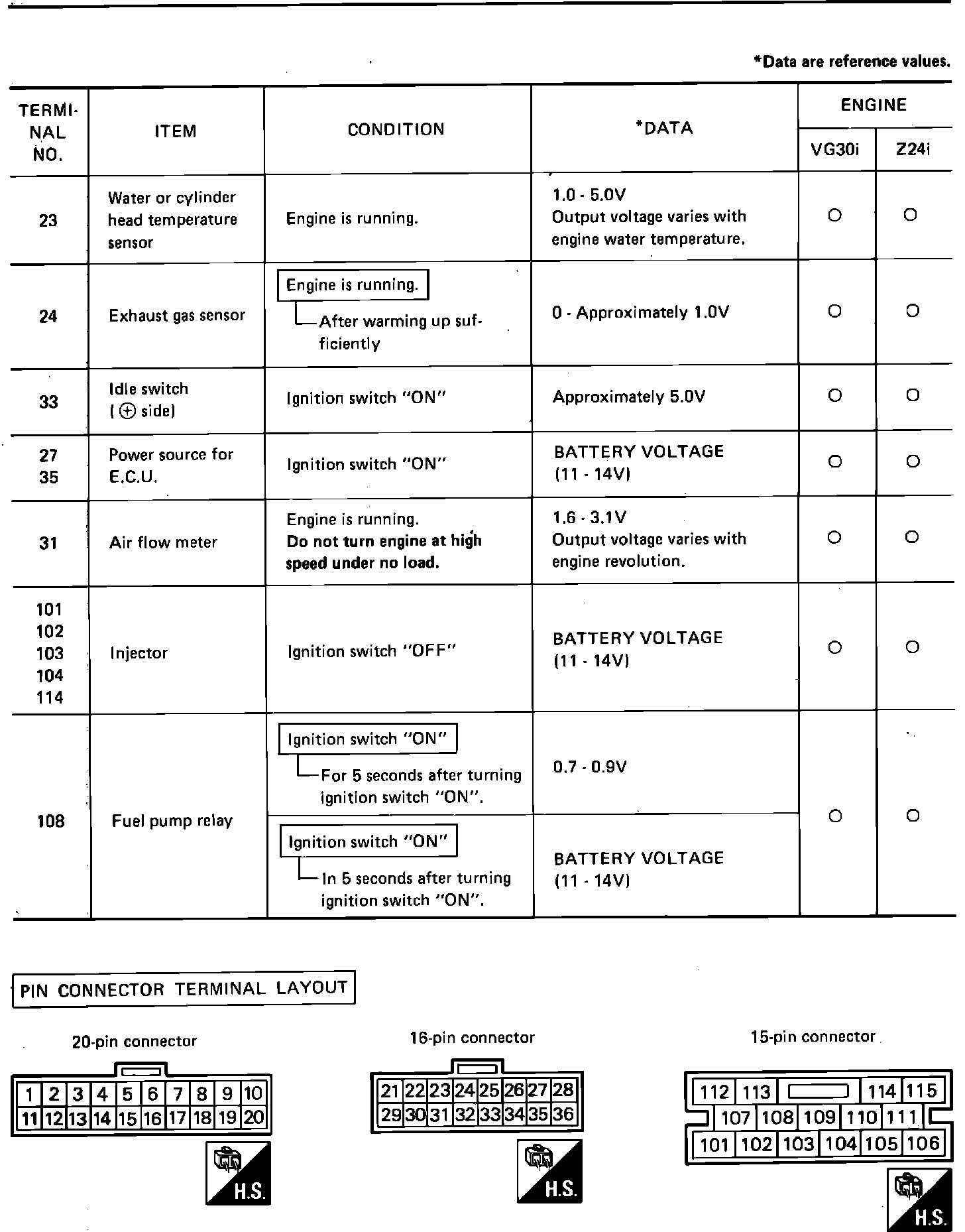

Fig. 307c Input/Output signal inspection chart.:

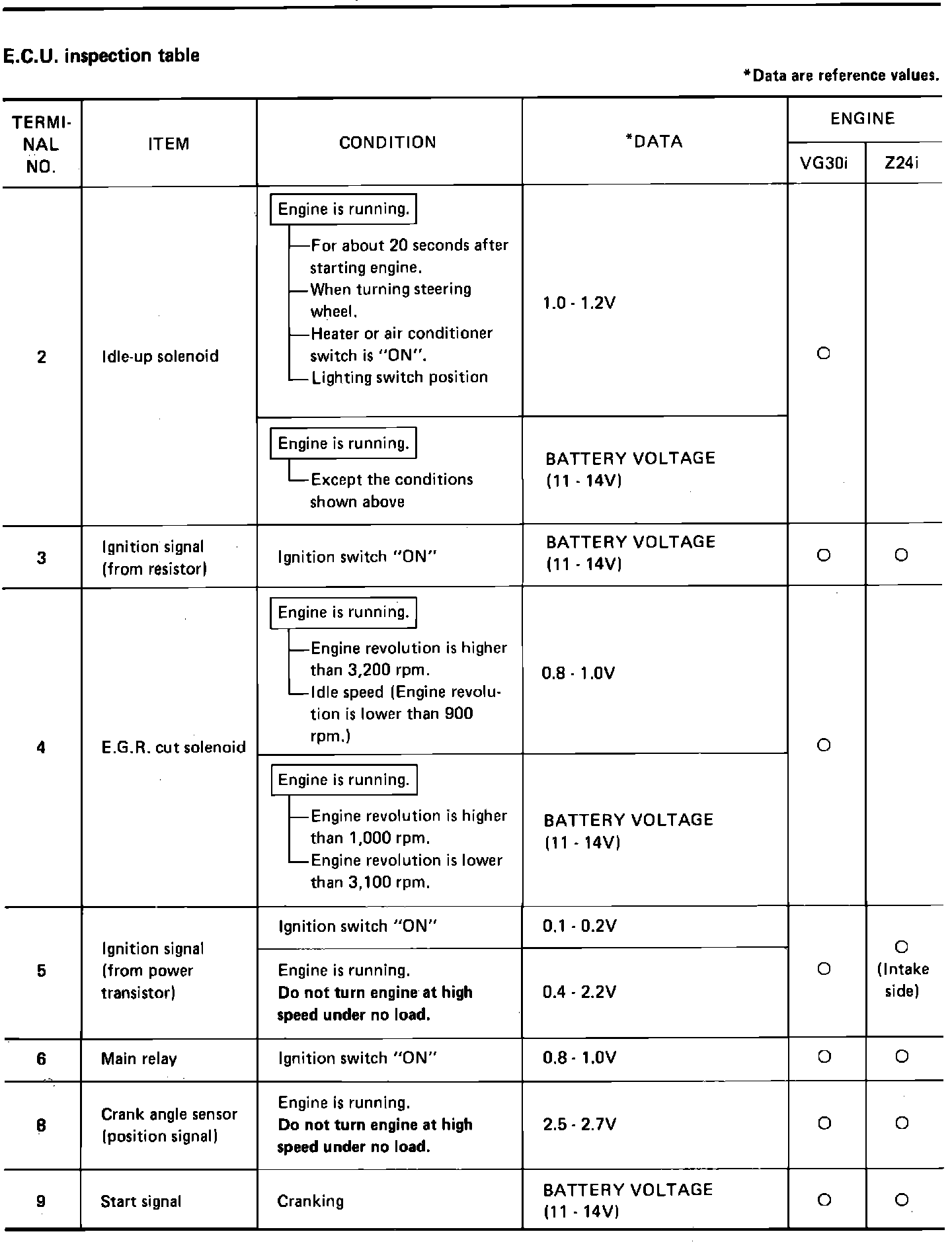

Fig. 307d Input/Output signal inspection chart.:
