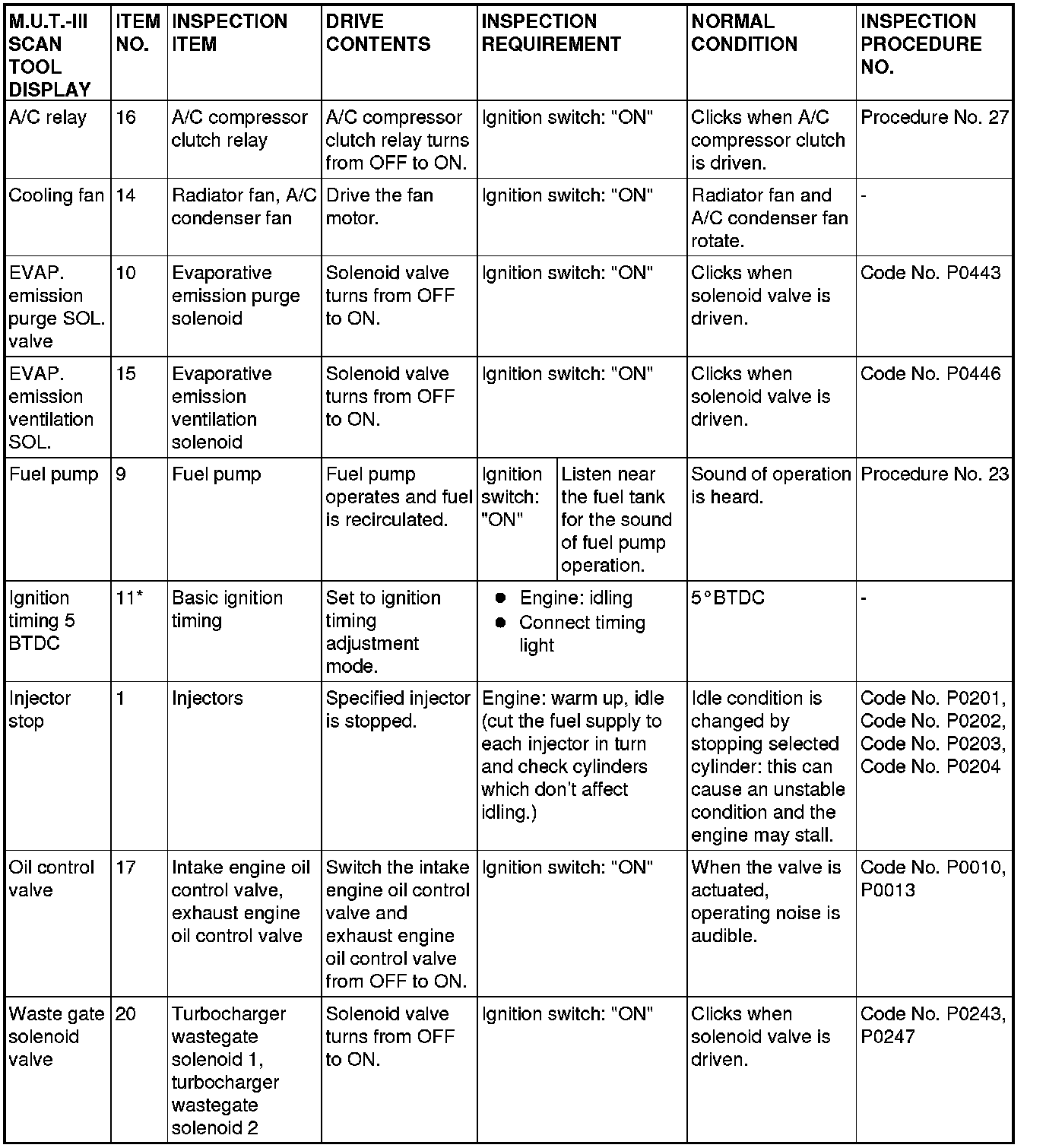

ACTUATOR TEST REFERENCE TABLE
NOTE:
*: Continues for 27 minutes. Can be released by pressing the CLEAR key.
