Symptom Chart

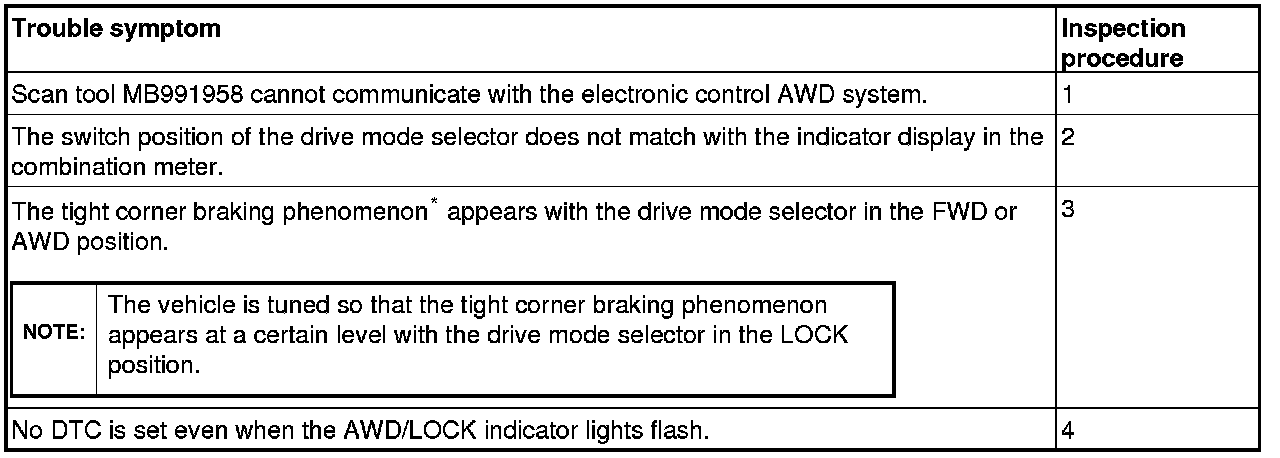

TROUBLE SYMPTOM CHART

CAUTION:
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are set, erase them all.





NOTE:
*Tight corner braking phenomenon: When a AWD vehicle makes sharp cornering in a paved road at low speed (ex. parallel parking), there is a difference in turning radius between front and rear wheels. If such a difference can no longer be compensated by tire slippage, the vehicle behaves as if it is under braking.
