Home >> Mitsubishi >> 2008 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

Symptom Chart

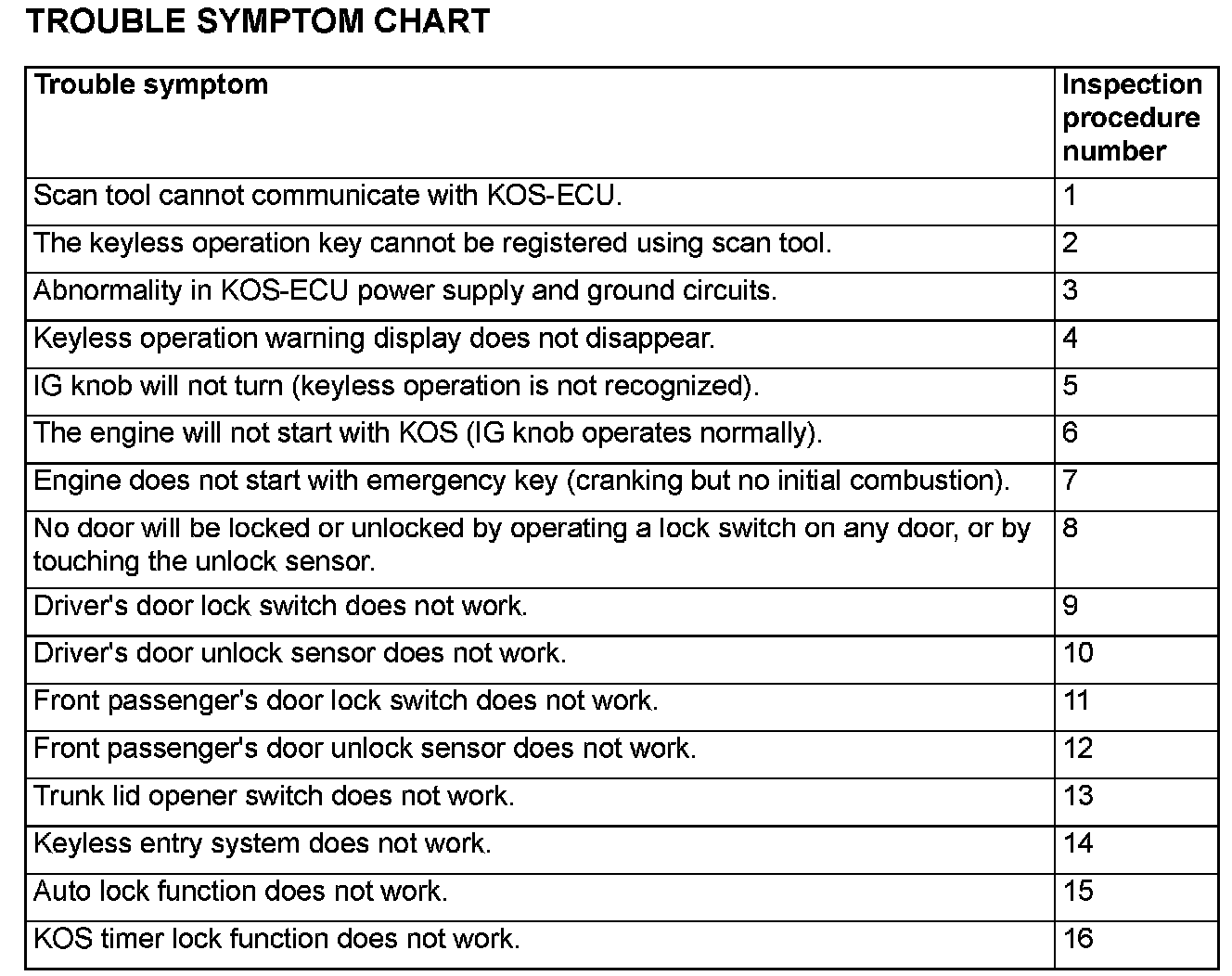

Trouble Symptom Chart (Part 1):

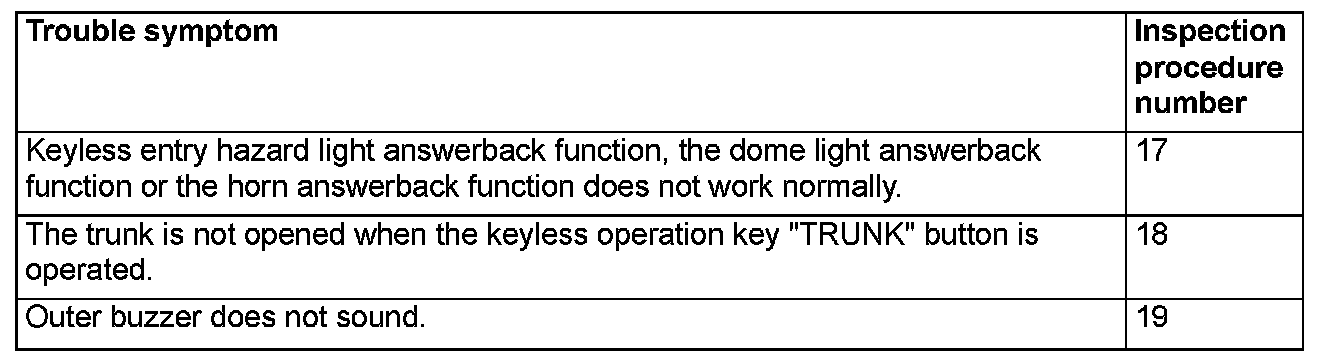

Trouble Symptom Chart (Part 2):
