Convertible Top

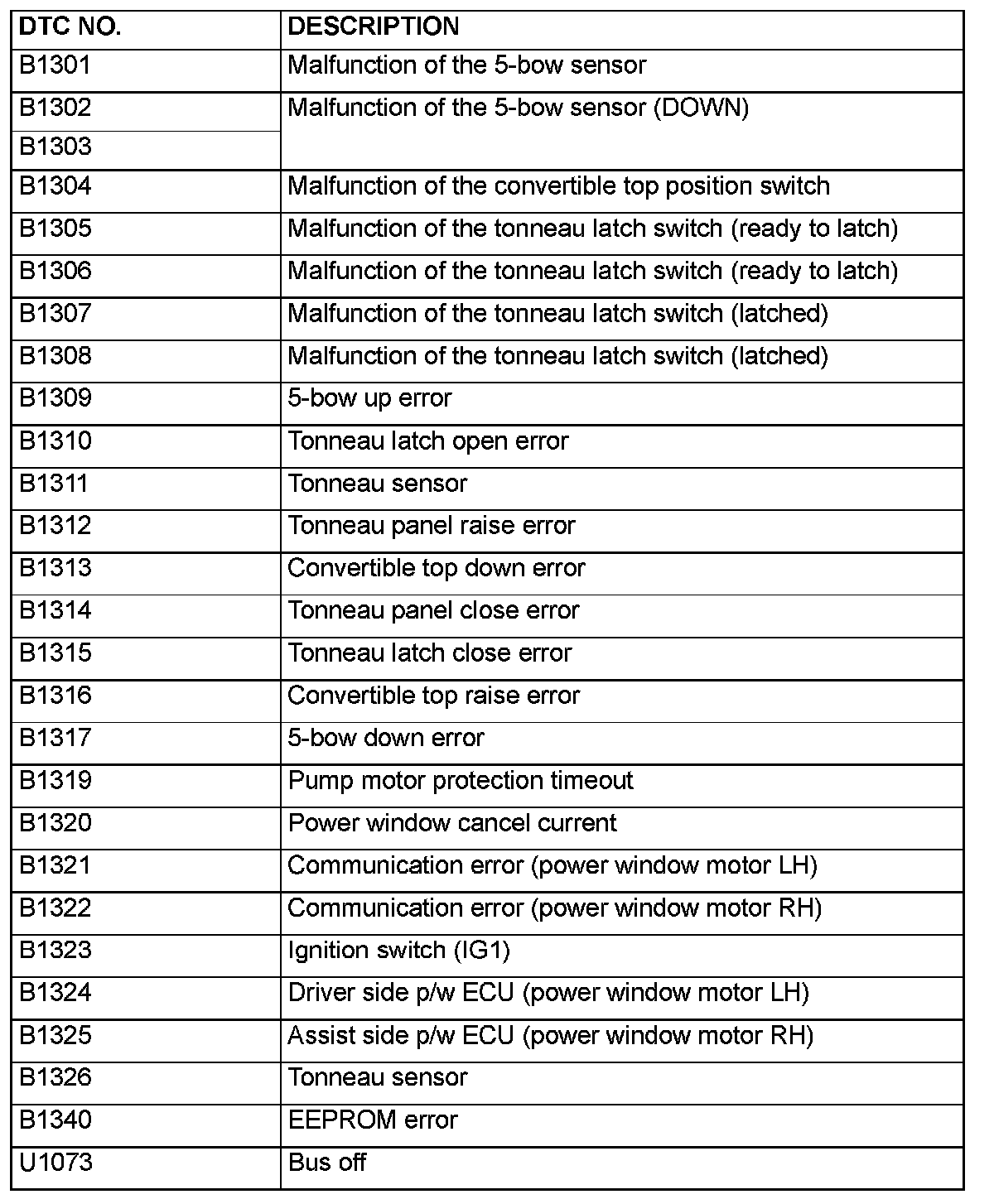

Convertible Top Diagnosis [Oil Pressure System and/or Electrical System]DIAGNOSTIC TROUBLE CODE CHART
CAUTION: During diagnosis, a DTC associated with other system may be set when the ignition switch is turned "ON" position with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are sets, erase them all.
Use the following chart to develop proper diagnostic strategy.
