OBD-II Drive Cycle

OBD- II DRIVE CYCLE
All kinds of diagnostic trouble codes (DTCs) can be monitored by carrying out a short drive according to the following 22 drive cycle patterns. In other words, doing such a drive regenerates any kind of trouble which involves illuminating the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) and verifies the repair procedure has eliminated [the trouble the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) is no longer illuminated].

CAUTION: Two technicians should always be in the vehicle when carrying out a test.

NOTE: Check that the diagnosis trouble code (DTC) is not output before driving the OBD-II drive cycle. Erase the DTC if it has been output.

NOTE: Drive cycle patterns are not established for Vehicle speed sensor monitor (DTC P0500), Power steering pressure switch monitor (P0551), and Fuel level sensor monitor (DTC P0461, P2066). Please reference the M.U.T. data list to judge whether these monitor items are normal.

Drive Cycle Pattern List Part 1:

Drive Cycle Pattern List Part 2:

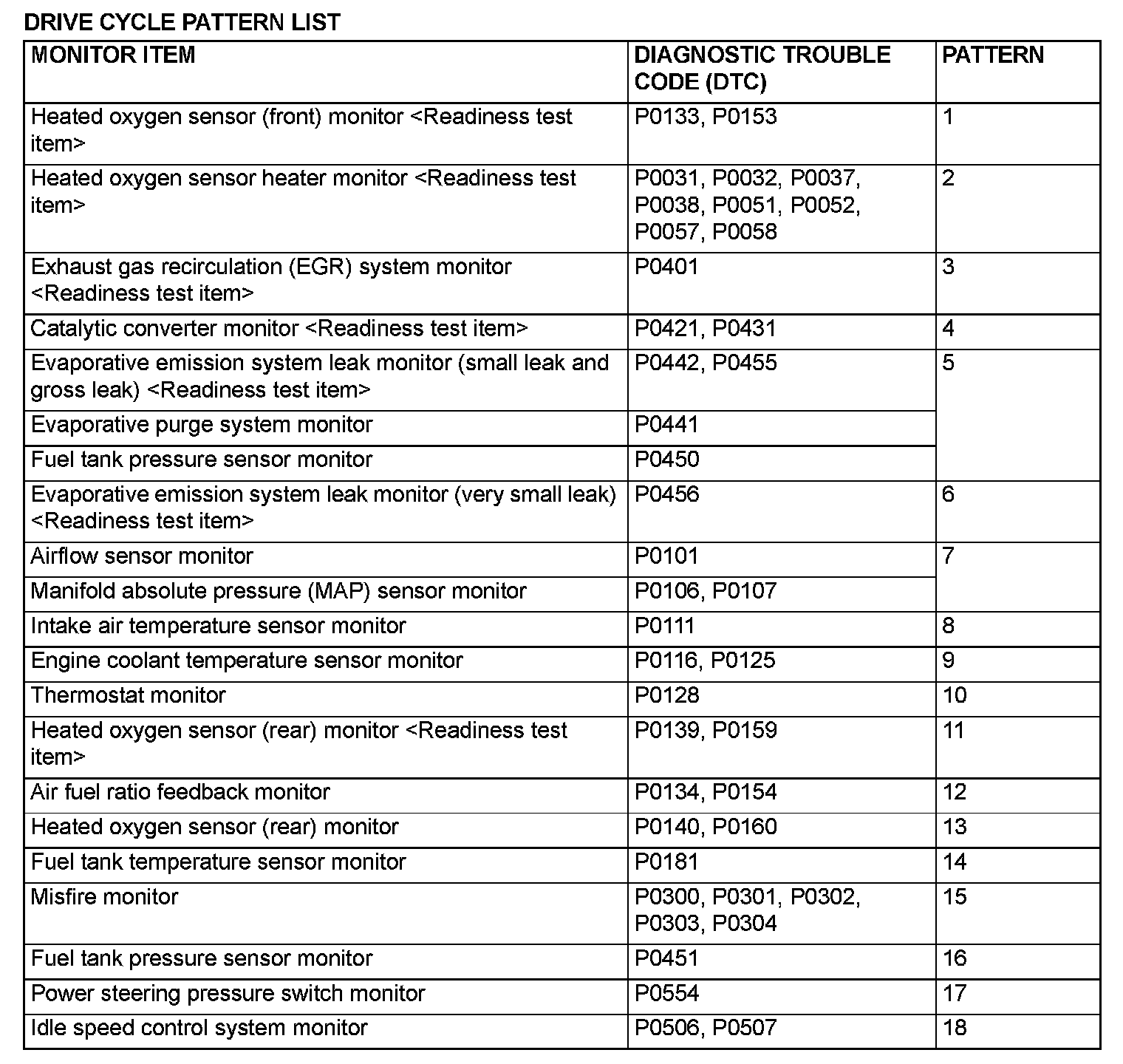

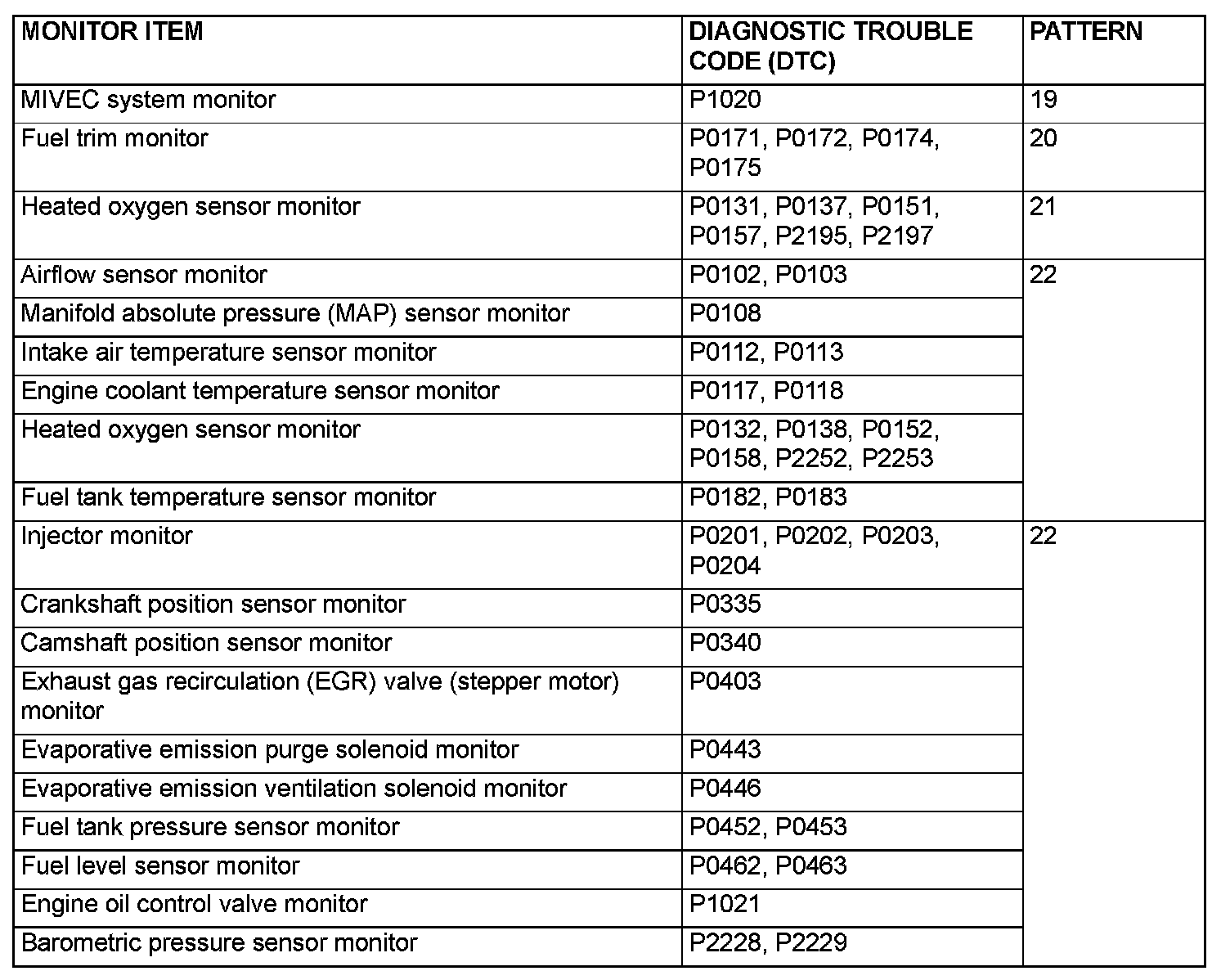

DRIVE CYCLE PATTERN LIST

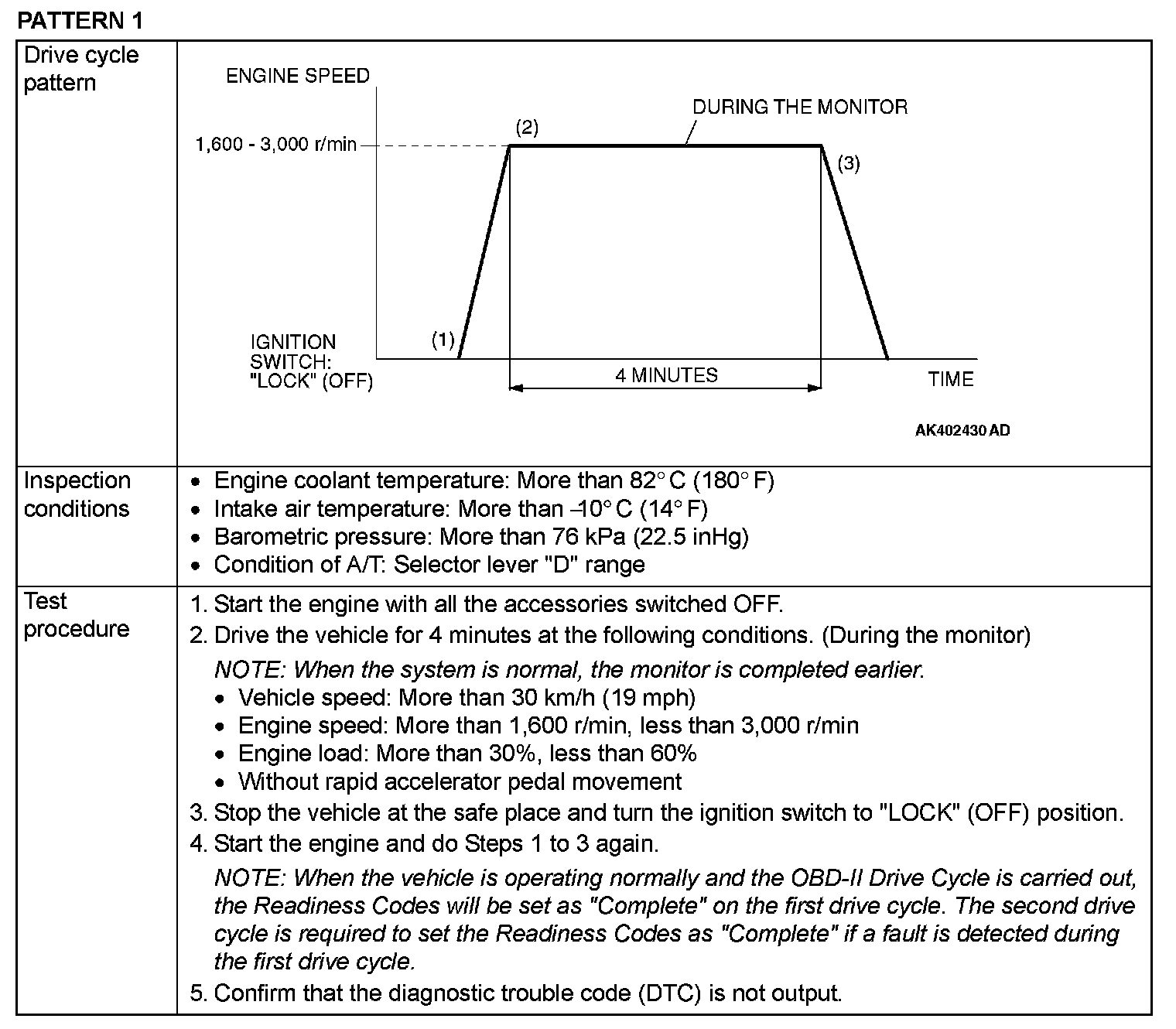

Pattern 1:

PATTERN 1

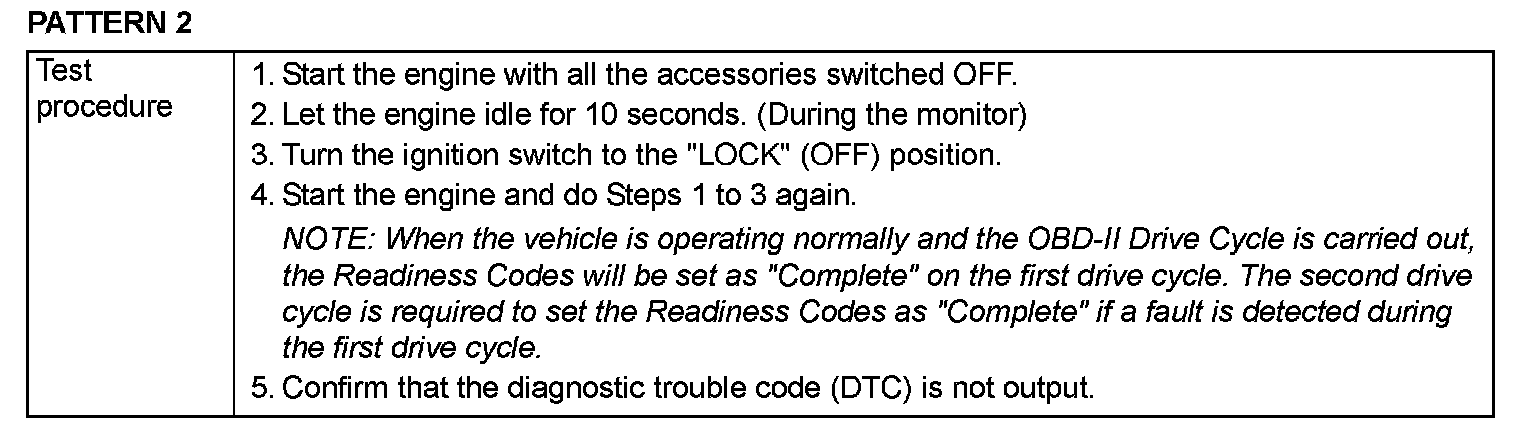

Pattern 2:

PATTERN 2

Pattern 3:

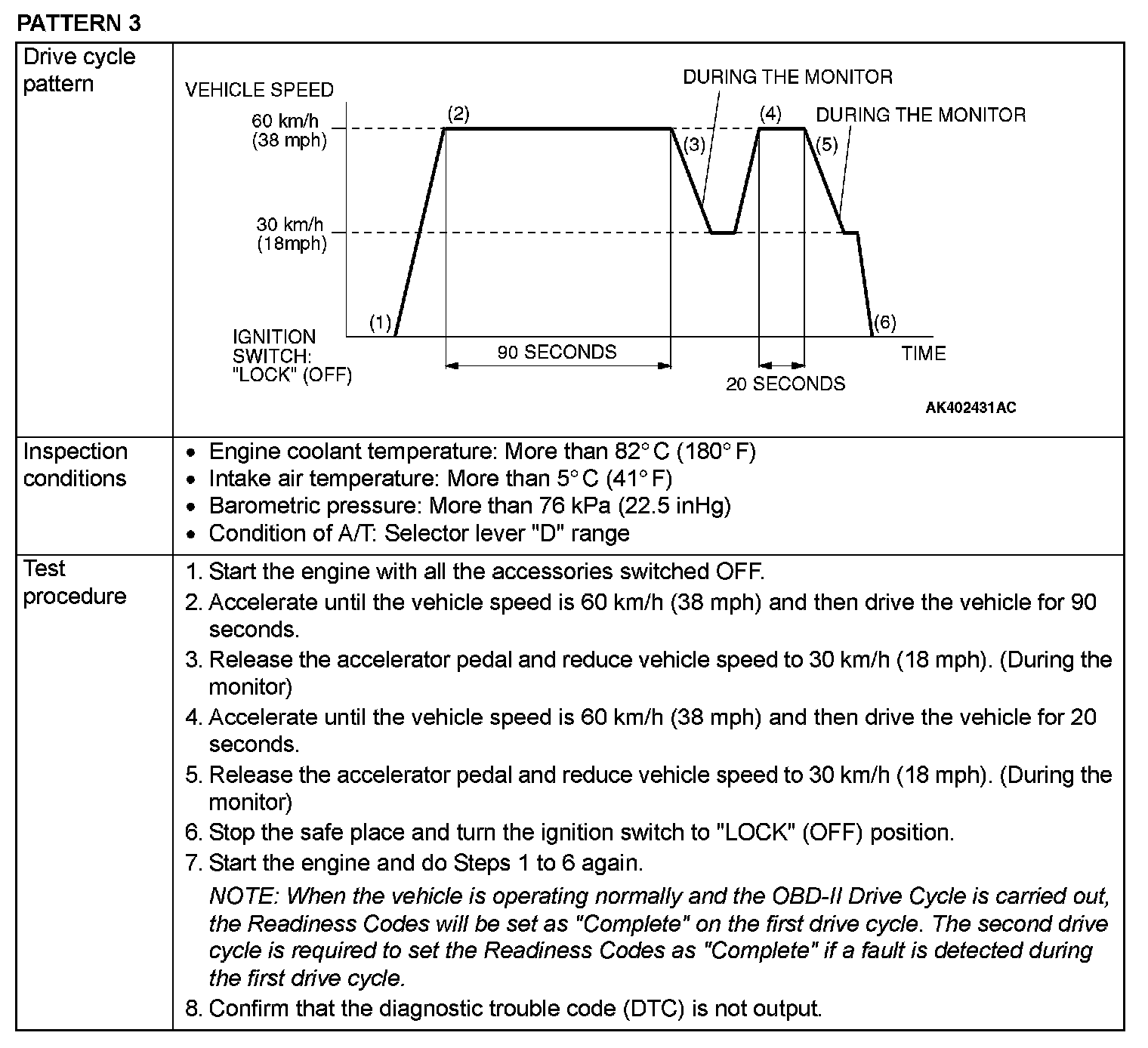

PATTERN 3

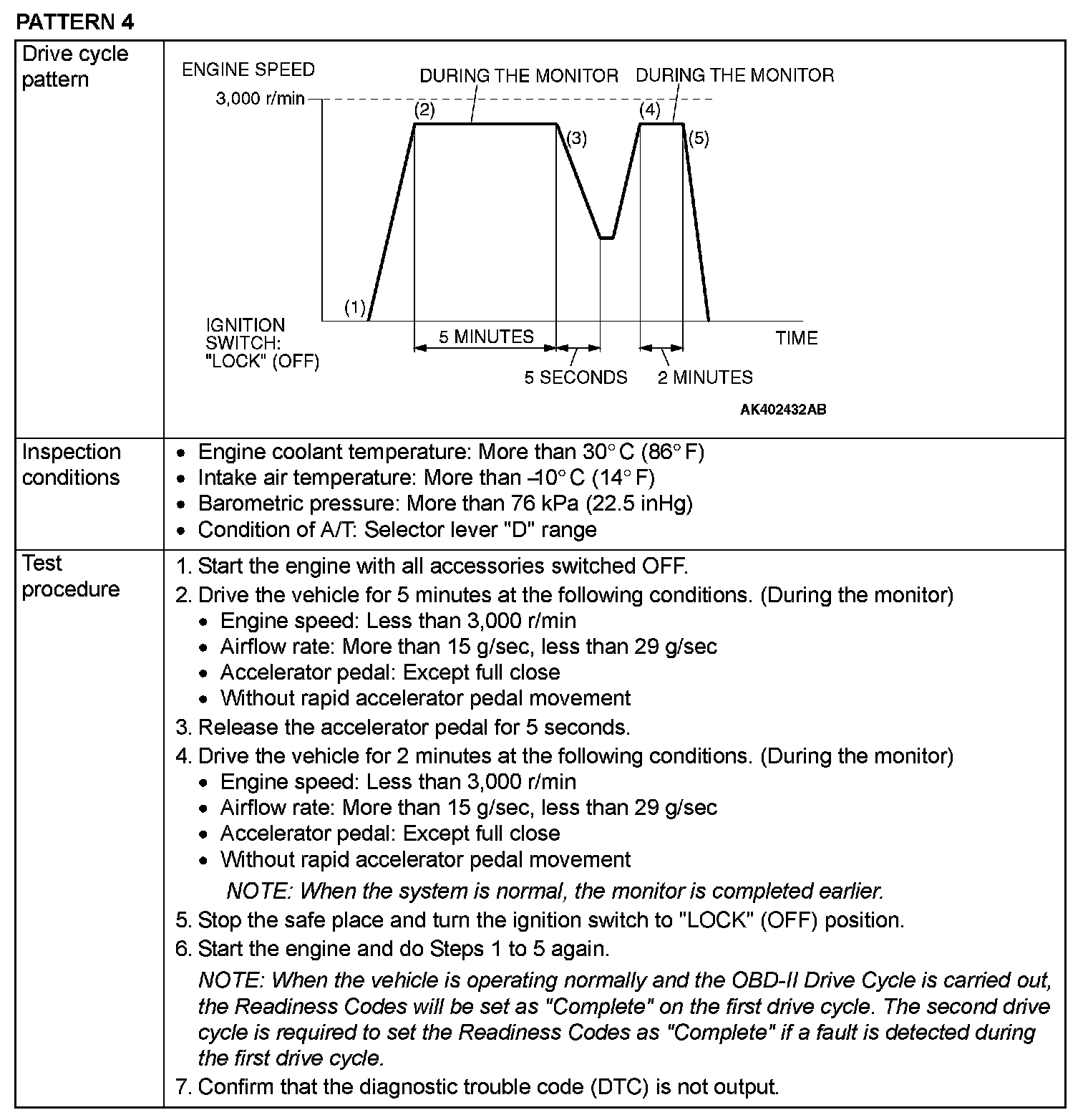

Pattern 4:

PATTERN 4

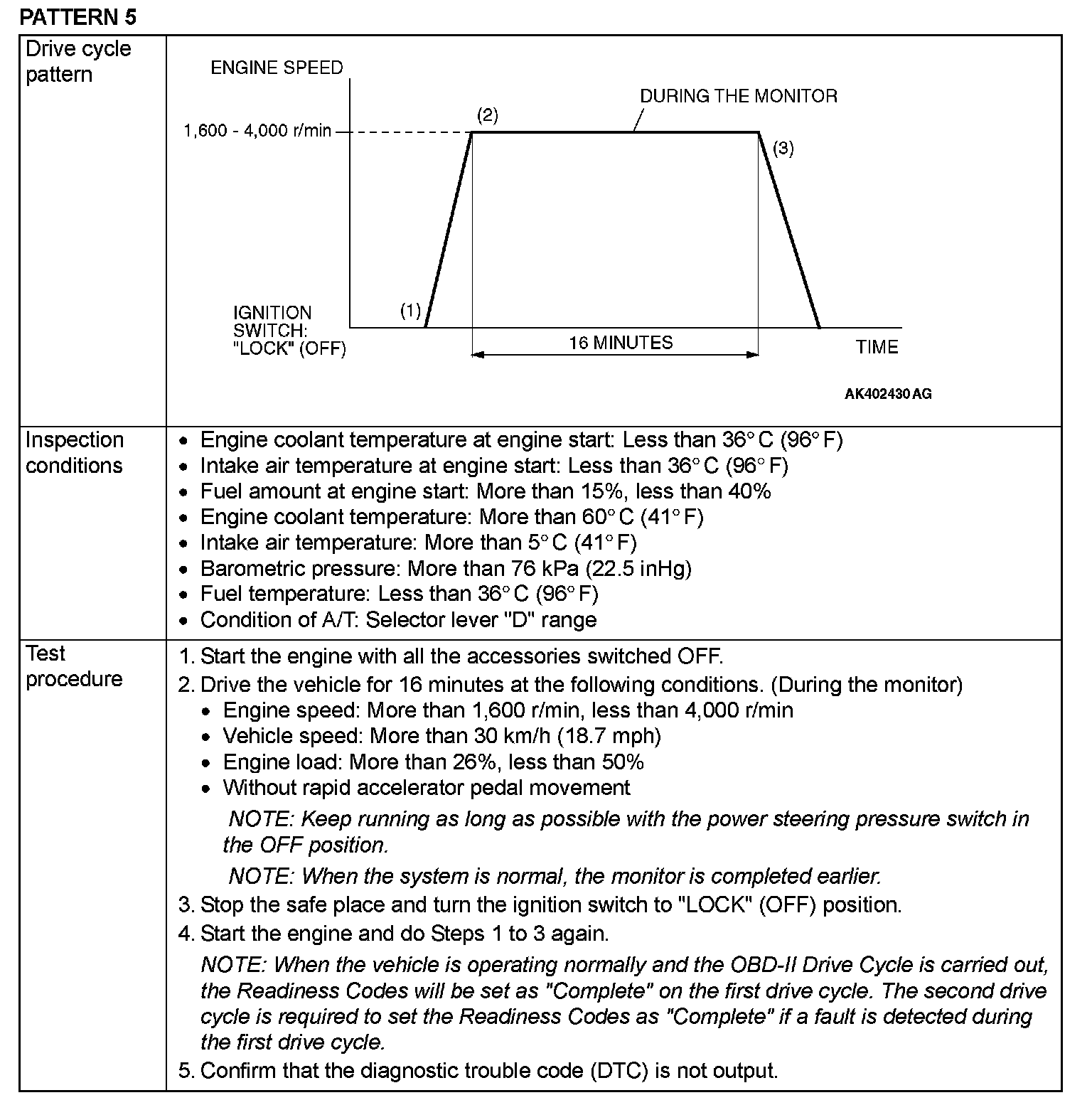

Pattern 5:

PATTERN 5

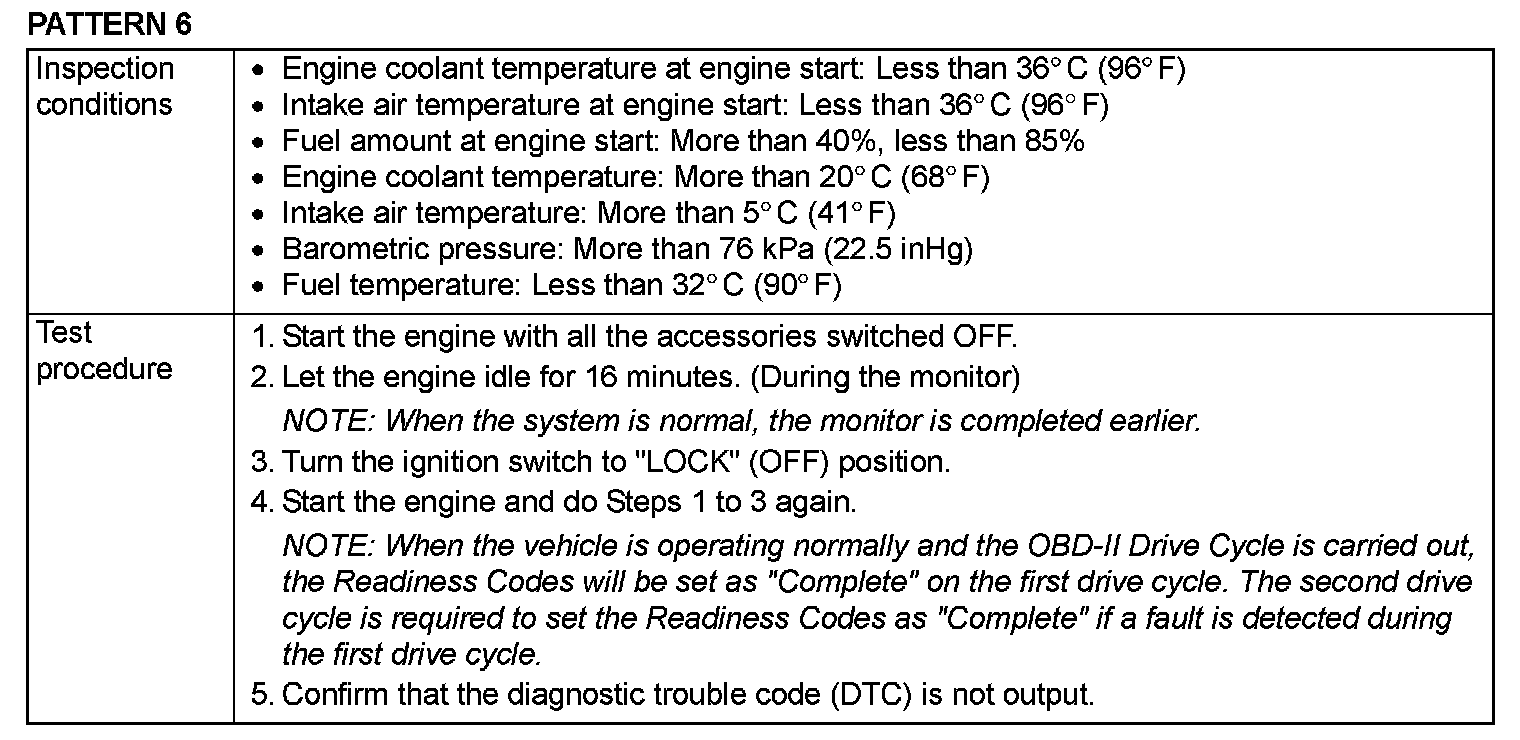

Pattern 6:

PATTERN 6

Pattern 7:

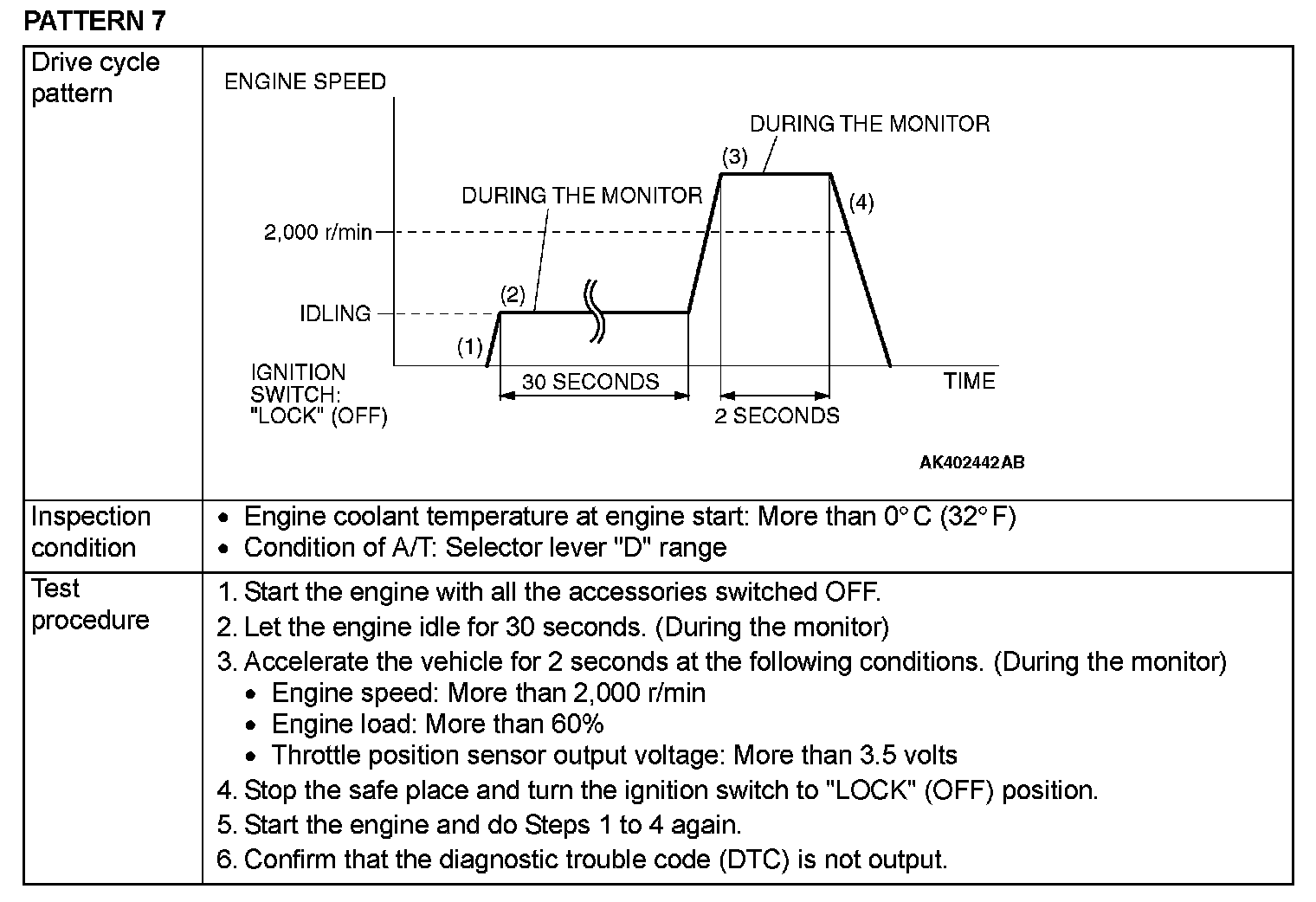

PATTERN 7

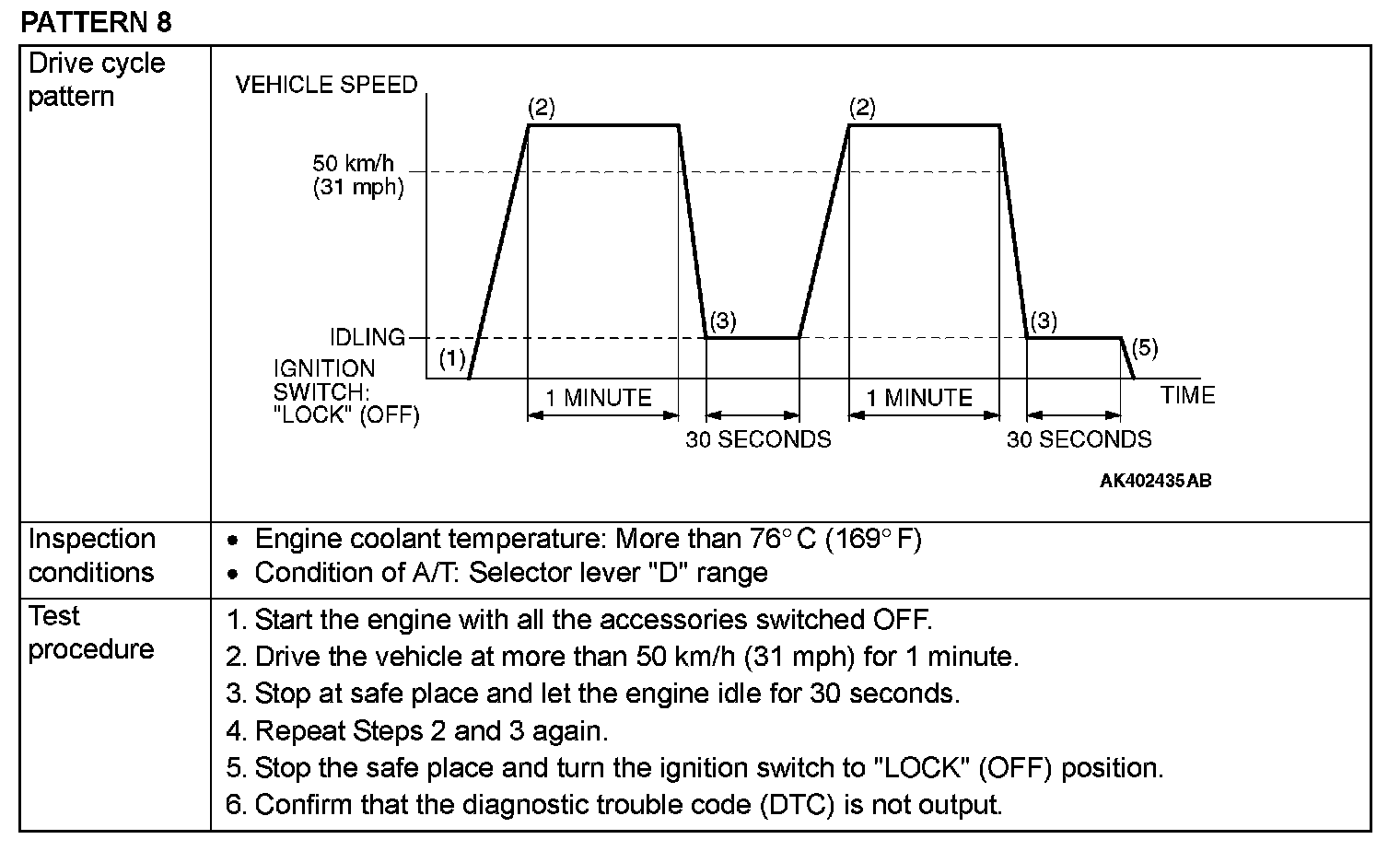

Pattern 8:

PATTERN 8

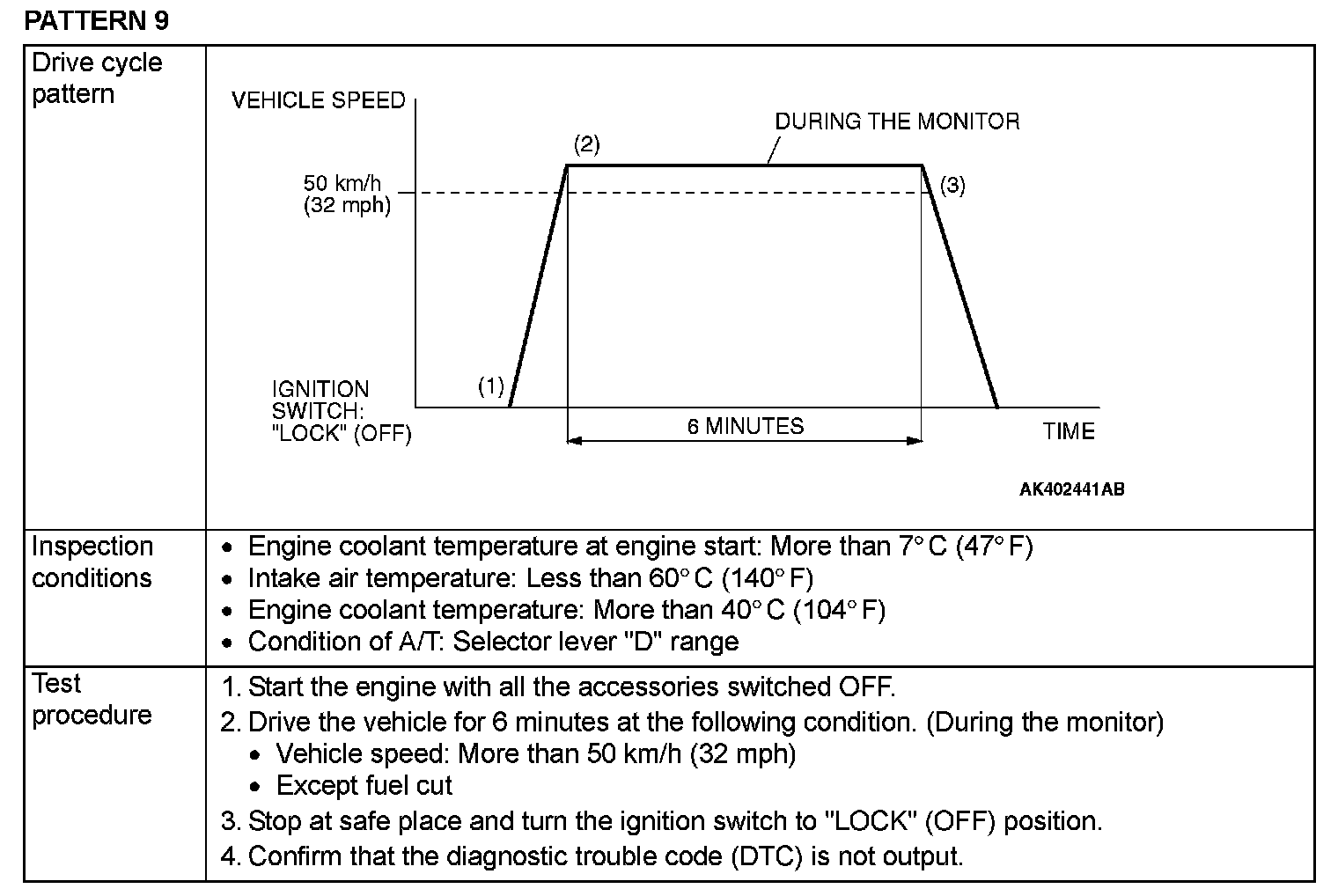

Pattern 9:

PATTERN 9

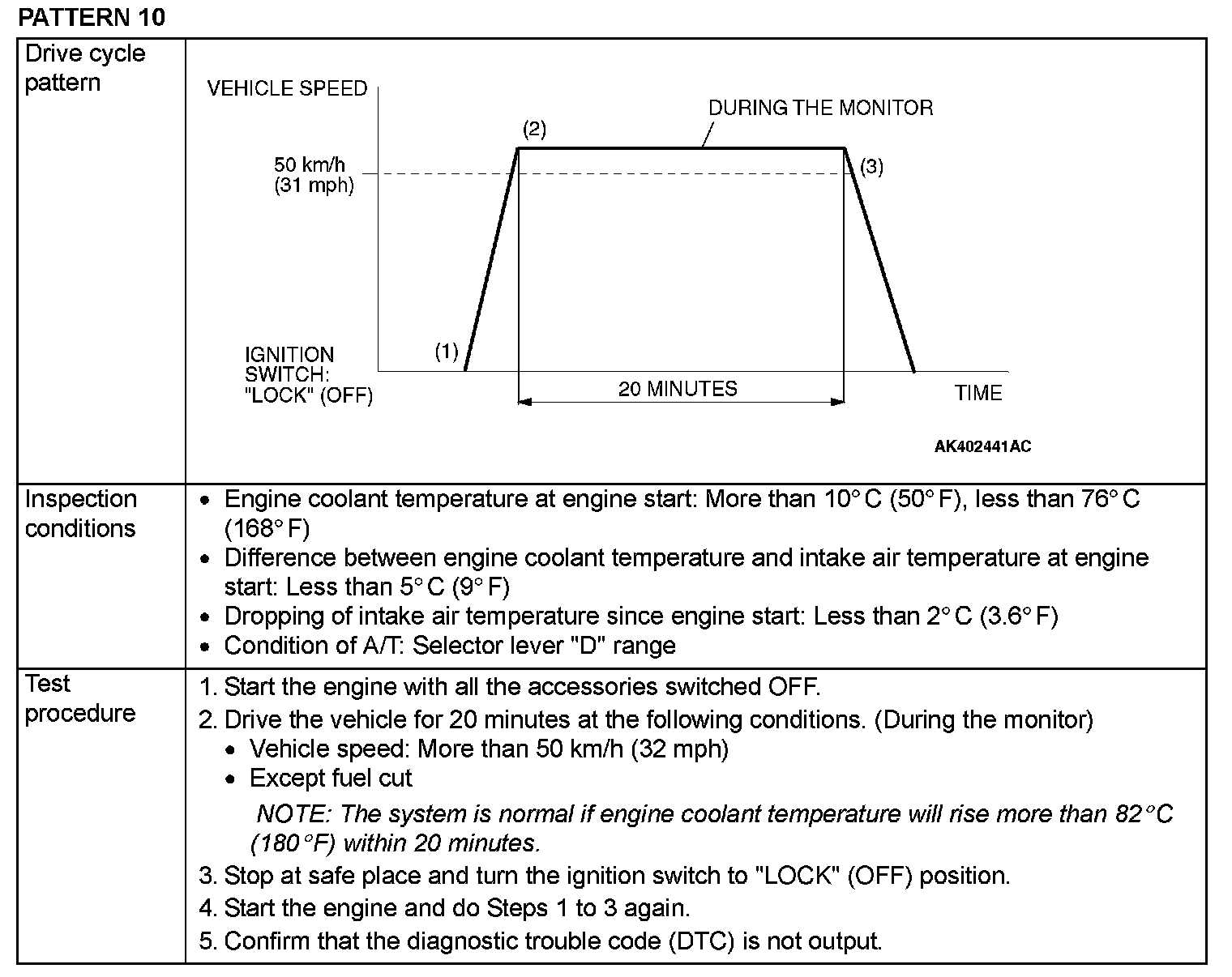

Pattern 10:

PATTERN 10

Pattern 11:

PATTERN 11

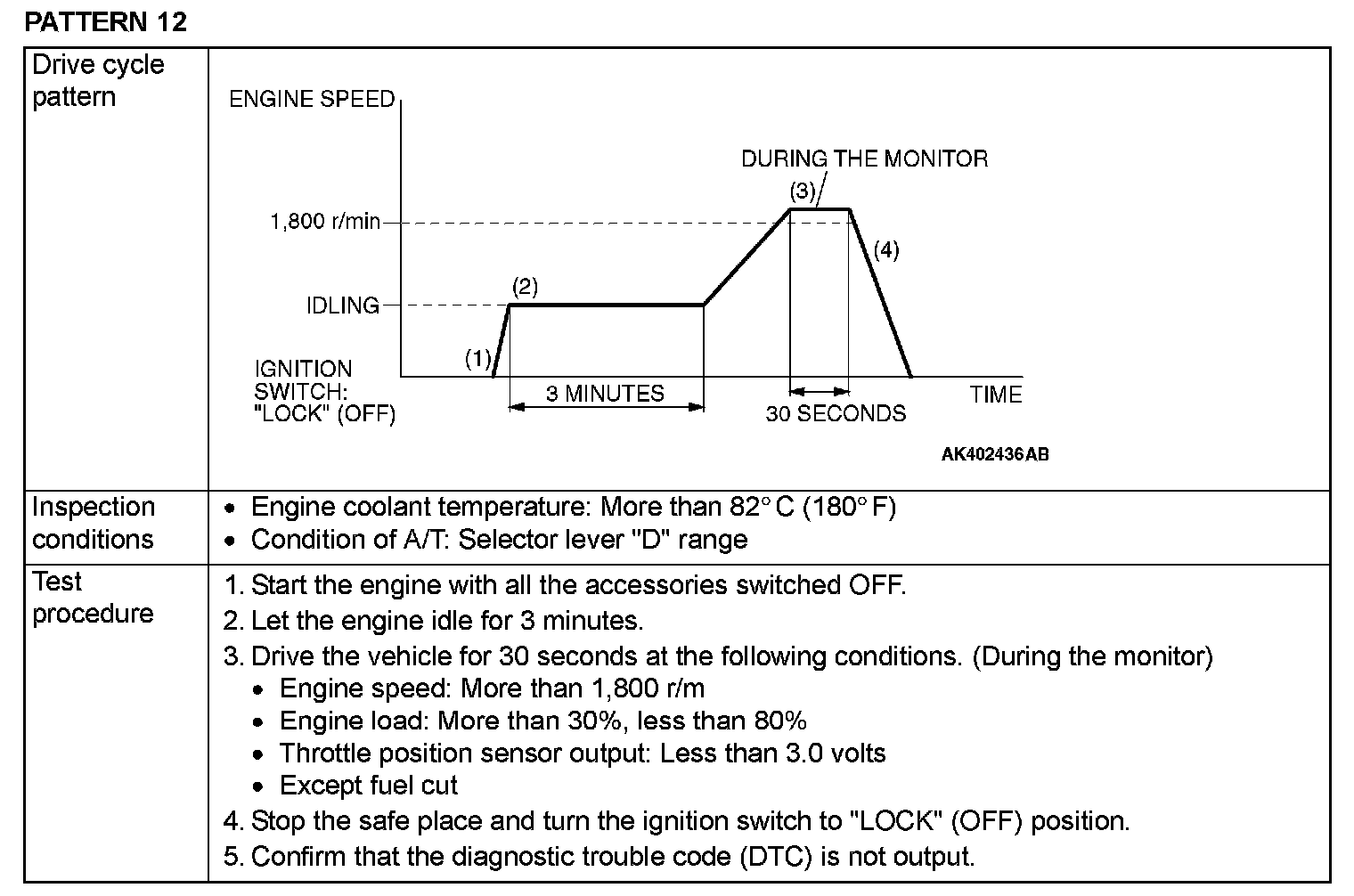

Pattern 12:

PATTERN 12

Pattern 13:

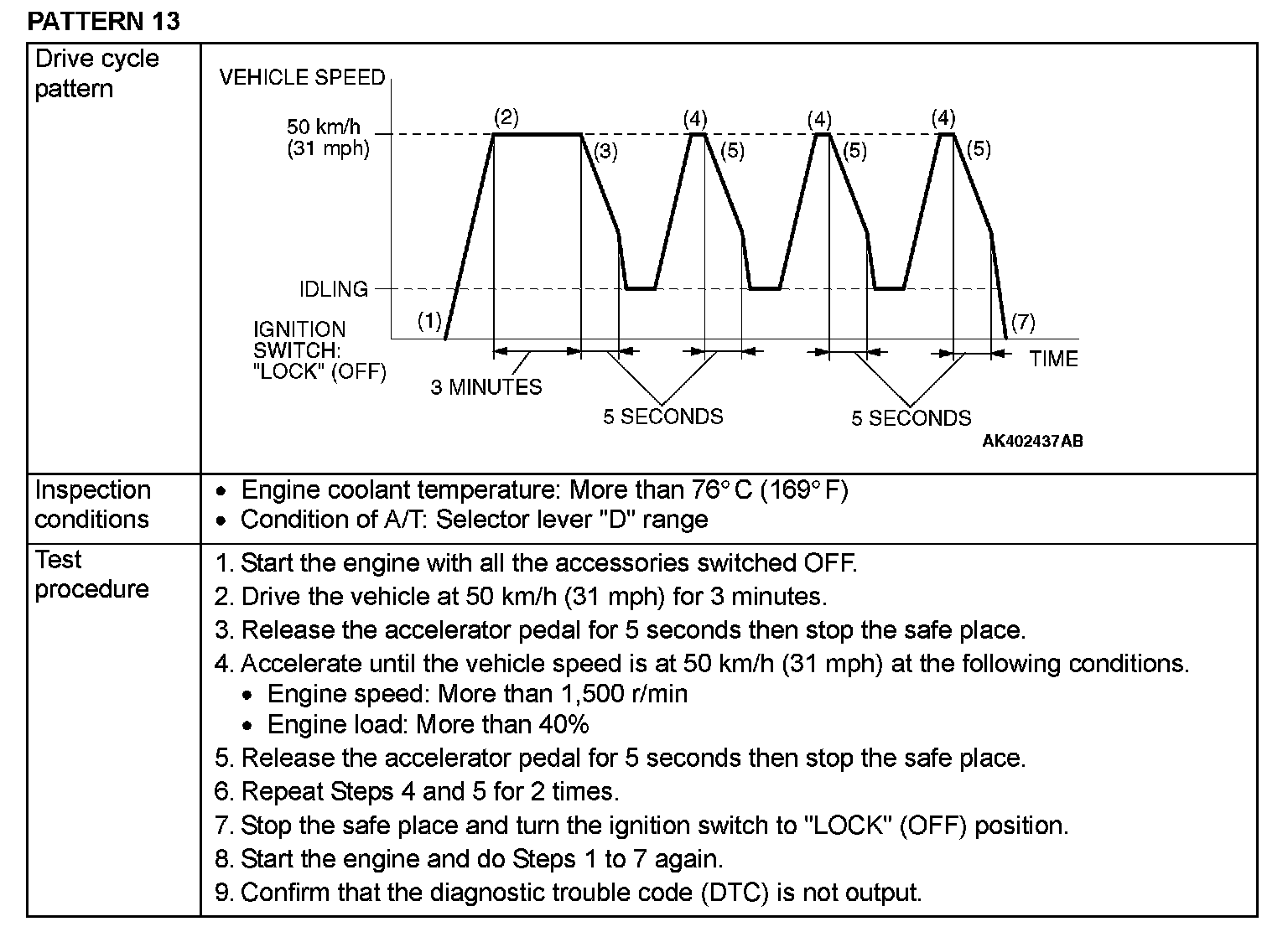

PATTERN 13

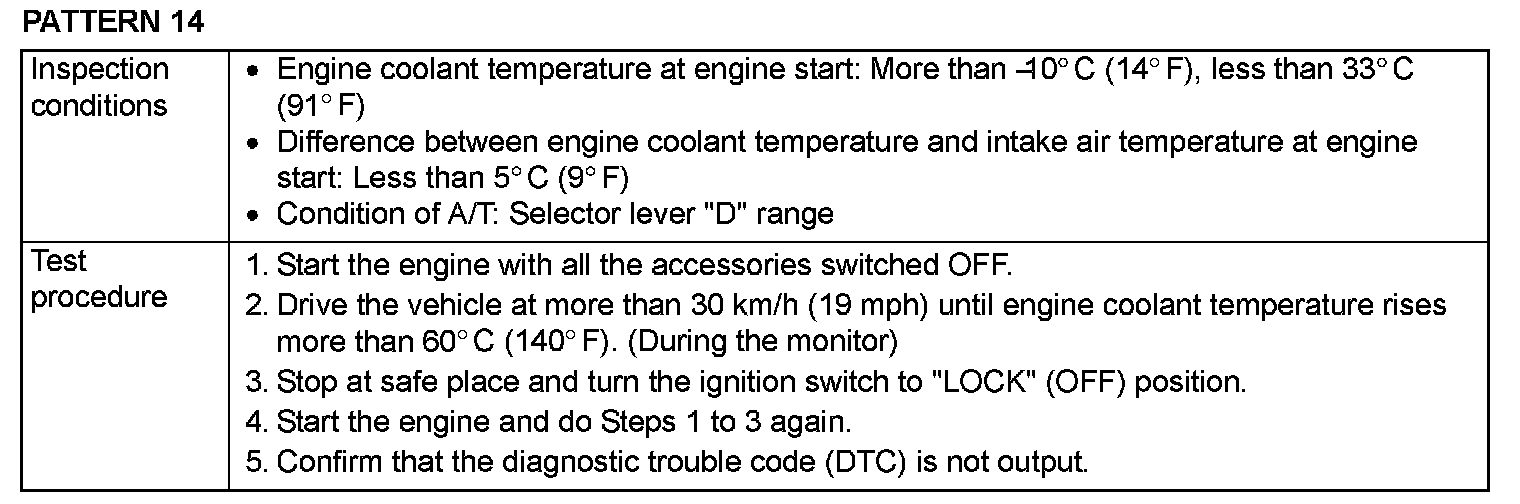

Pattern 14:

PATTERN 14

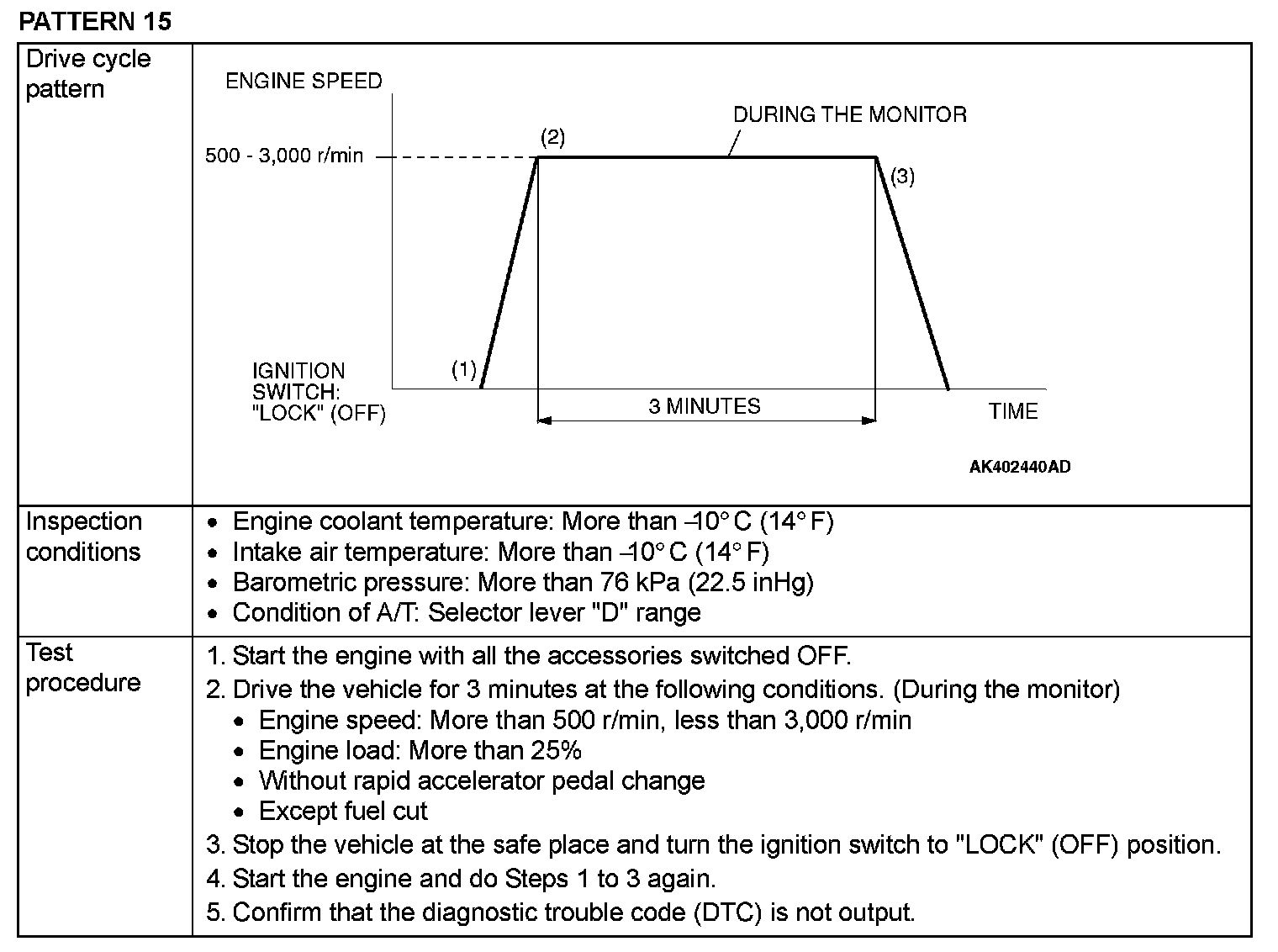

Pattern 15:

PATTERN 15

Pattern 16:

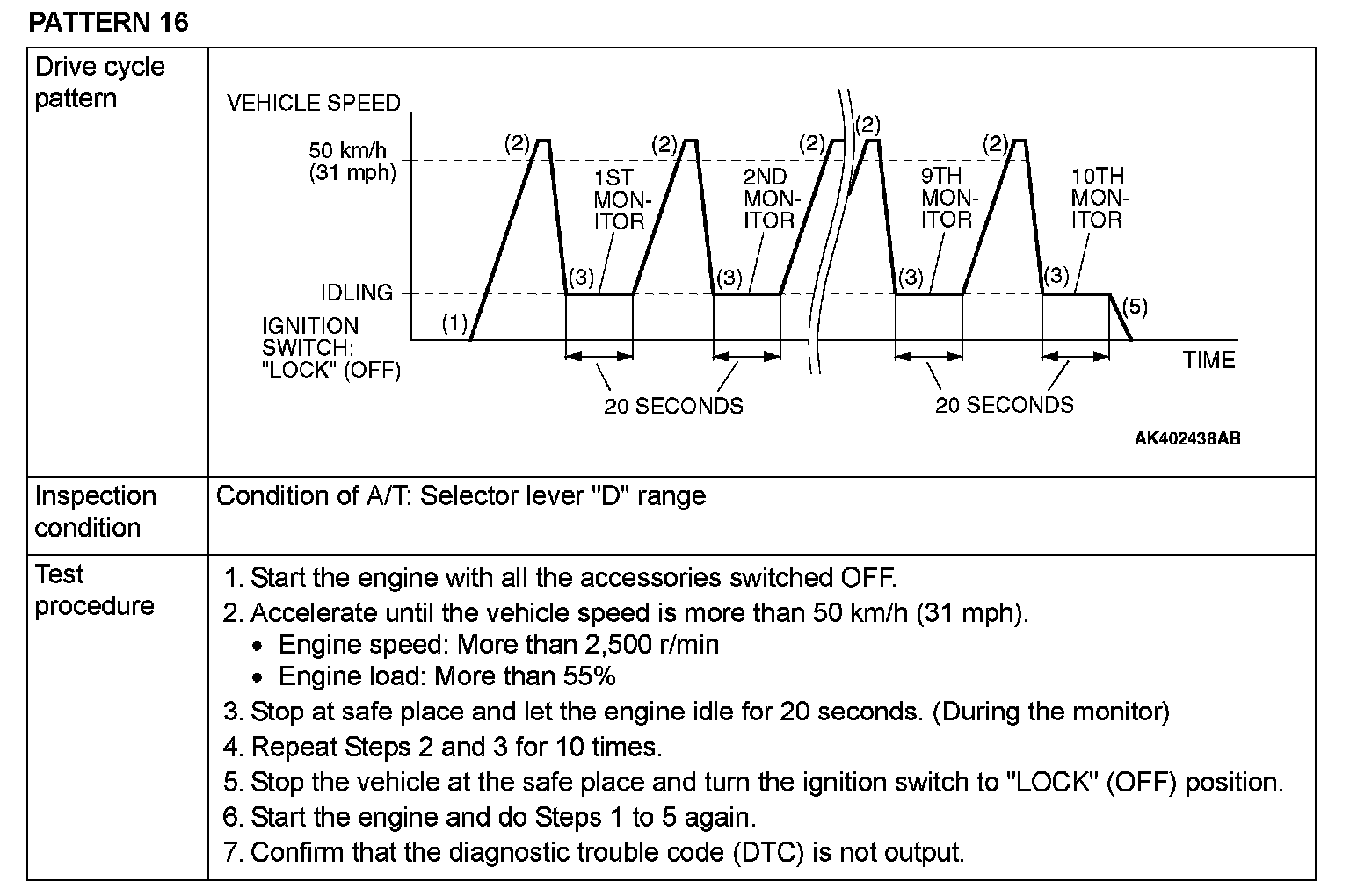

PATTERN 16

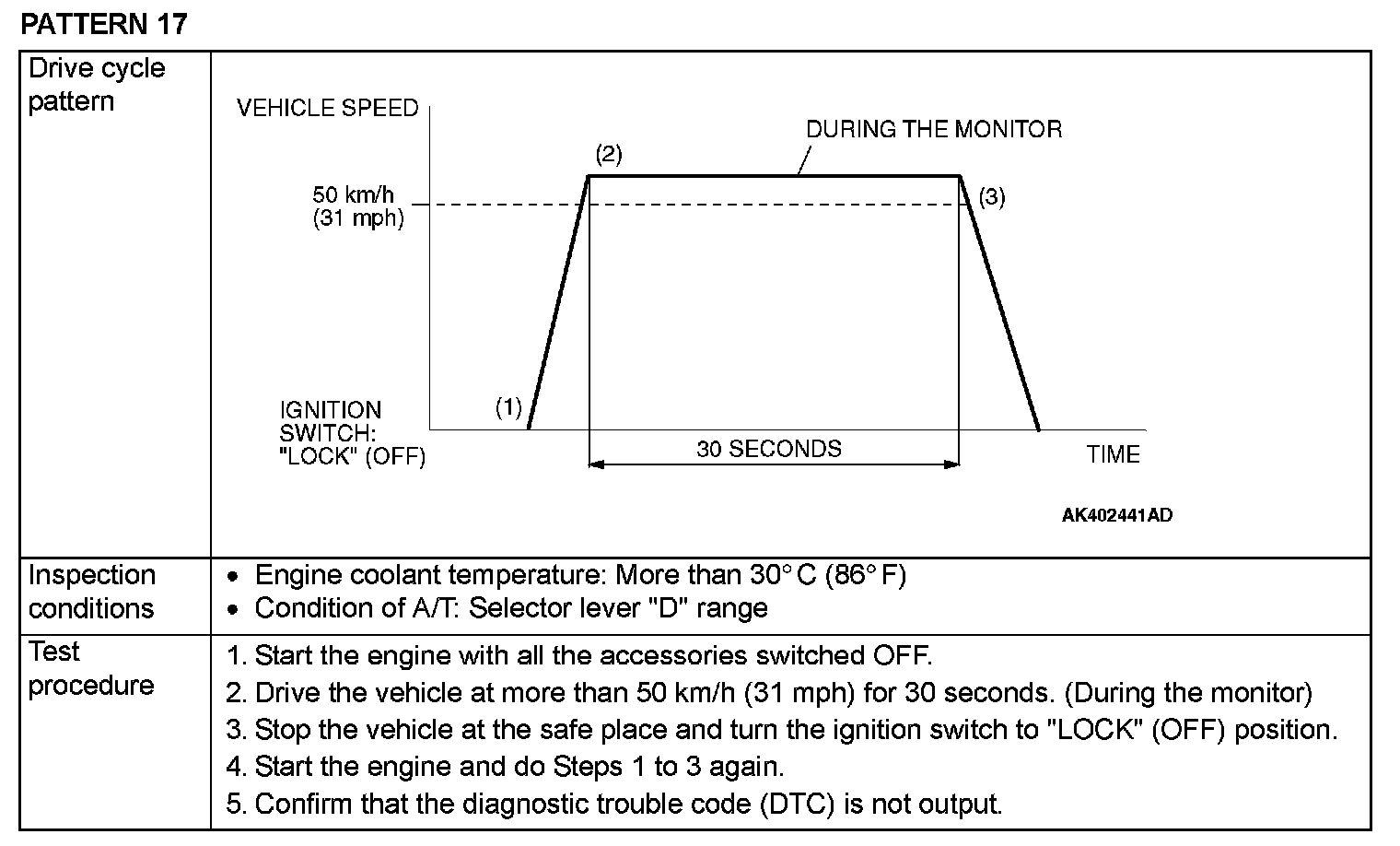

Pattern 17:

PATTERN 17

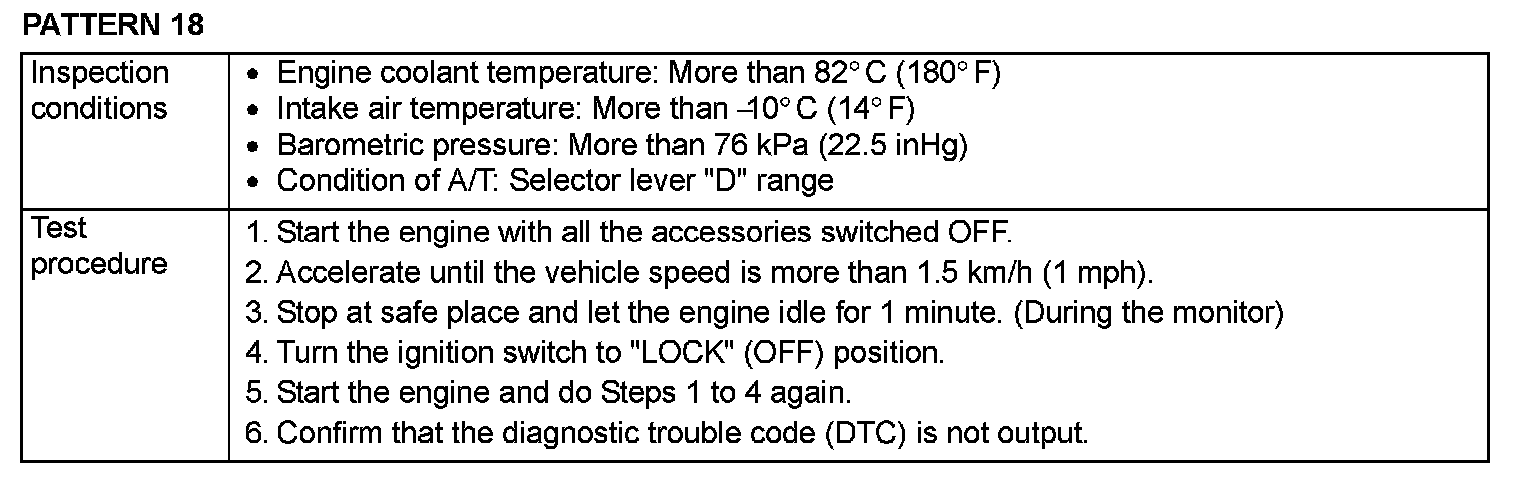

Pattern 18:

PATTERN 18

Pattern 19:

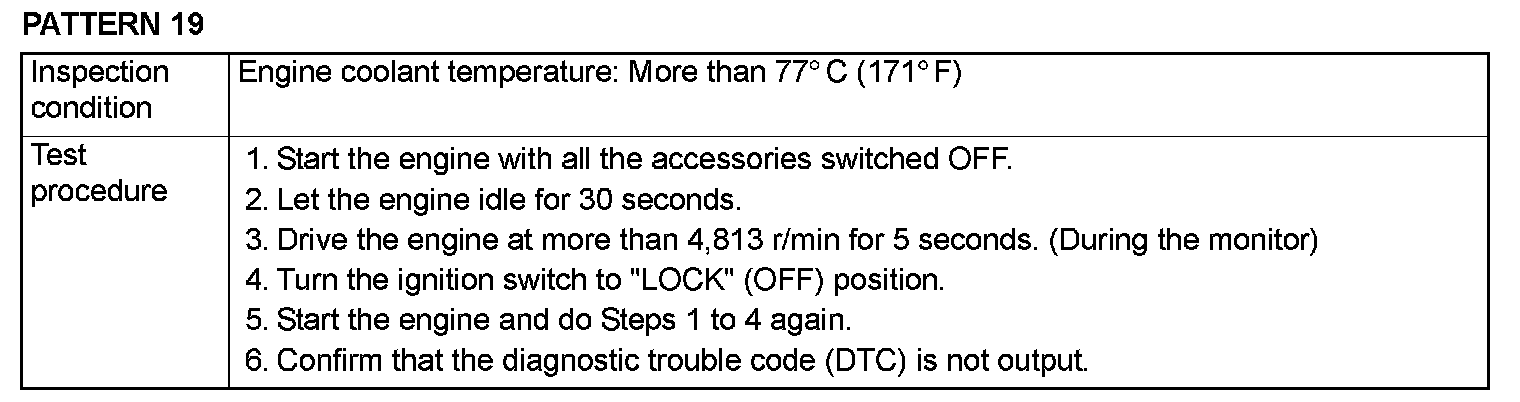

PATTERN 19

Pattern 20:

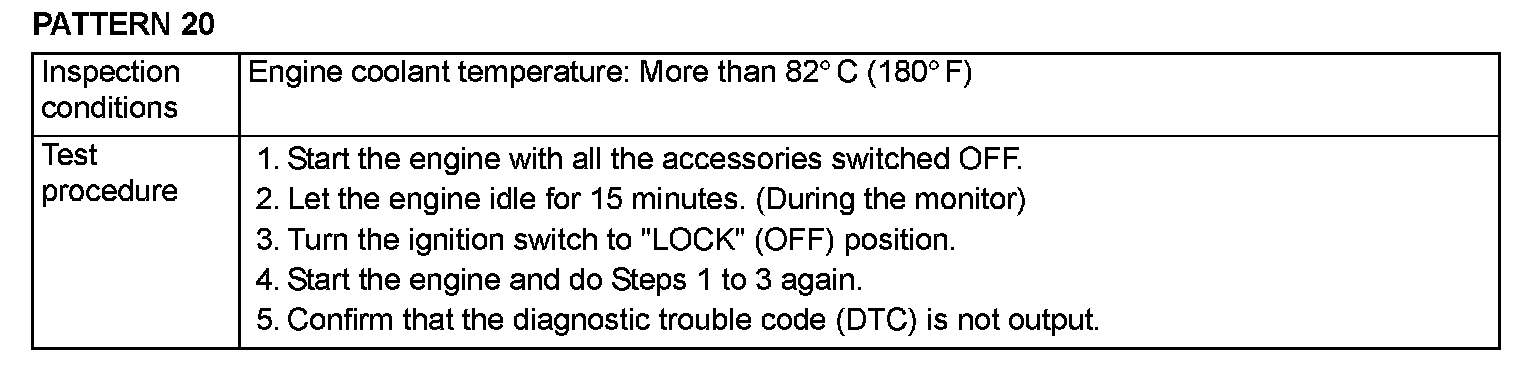

PATTERN 20

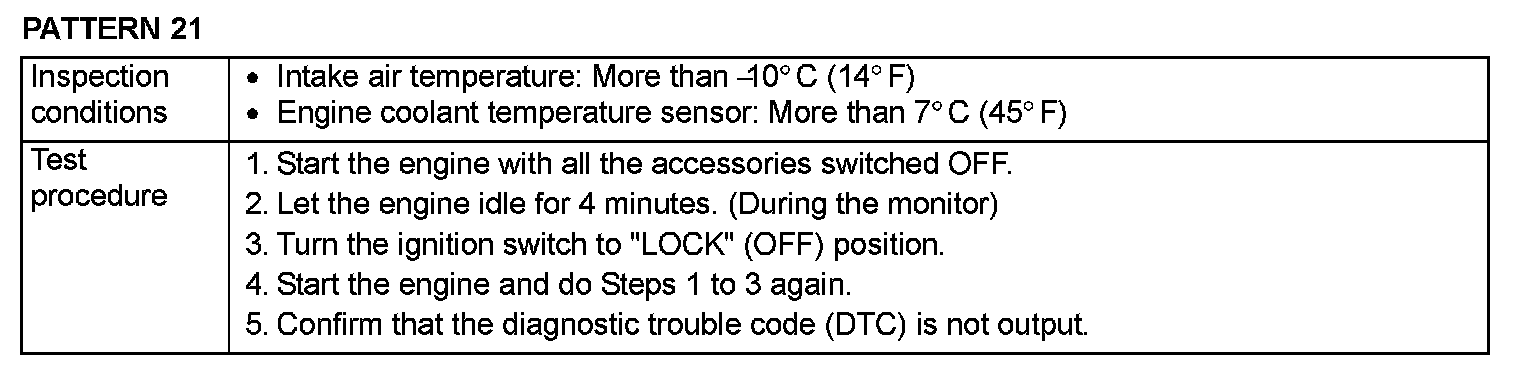

Pattern 21:

PATTERN 21

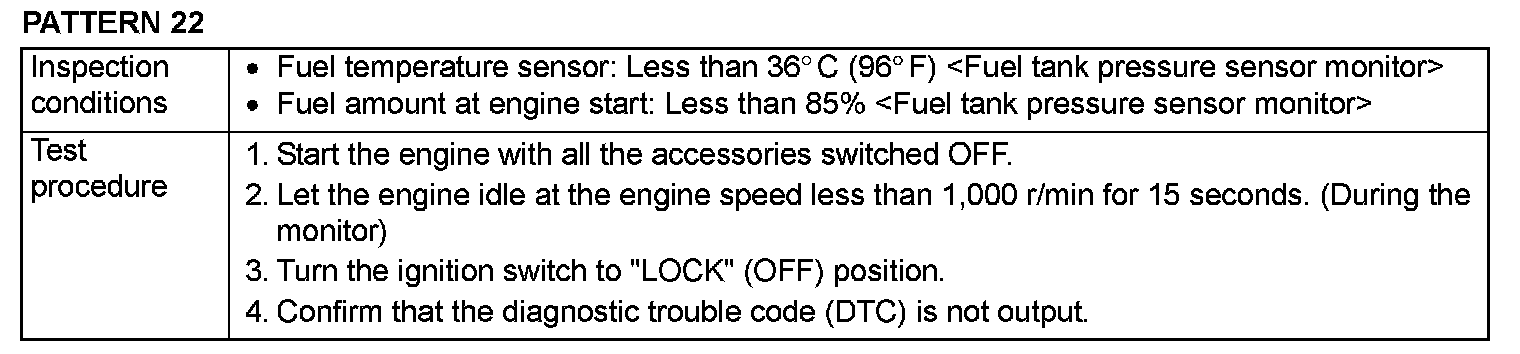

Pattern 22:

PATTERN 22
