Tire Pressure Monitoring System (TPMS)

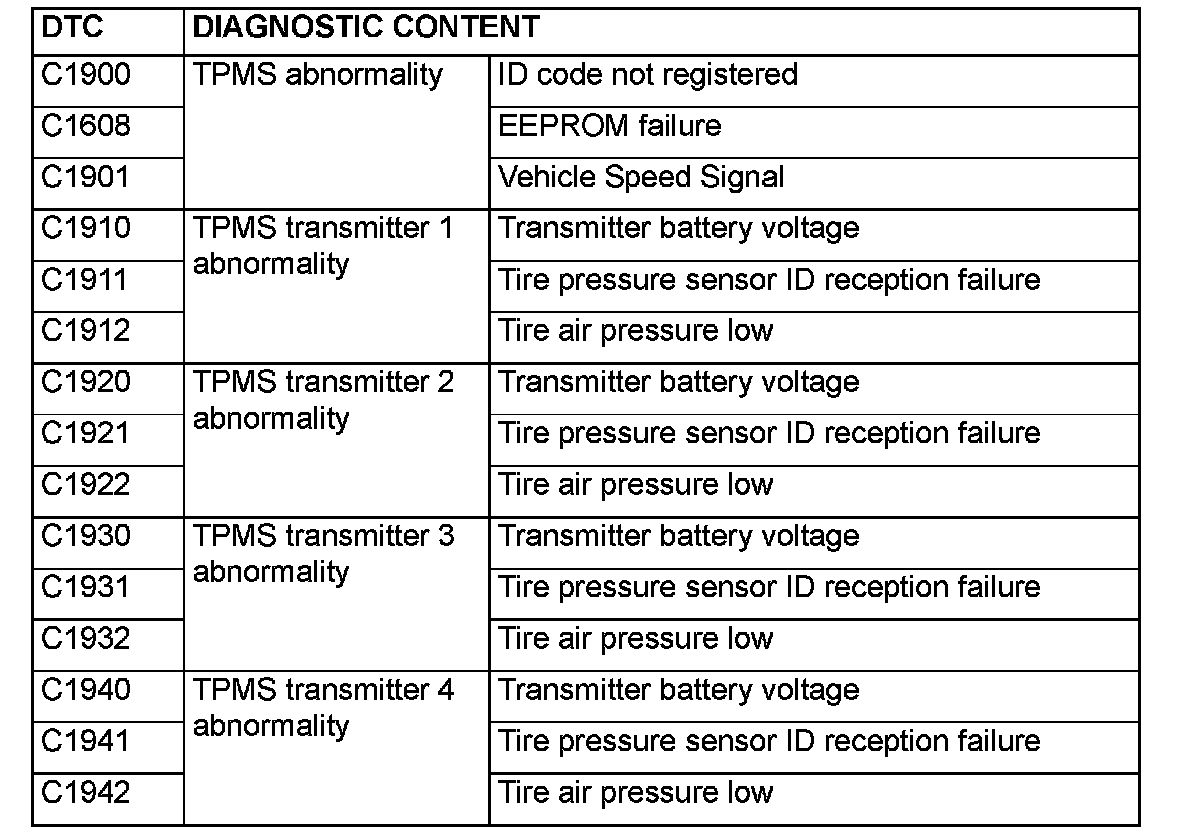

DIAGNOSTIC TROUBLE CODE CHARTC1900-C1942:
CAUTION:
- During diagnosis, a DTC associated with another system may be set when the ignition switch is turned to the "ON" position with connector(s) disconnected. When diagnosis is finished, check all systems for DTC (s). If DTC (s) are set, erase them all.
- Tire pressure sensor ID registration must be done before any diagnosis.
