Supplemental Restraint System (SRS)
Supplemental Restraint System (SRS)
DIAGNOSTIC TROUBLE CODE CHART

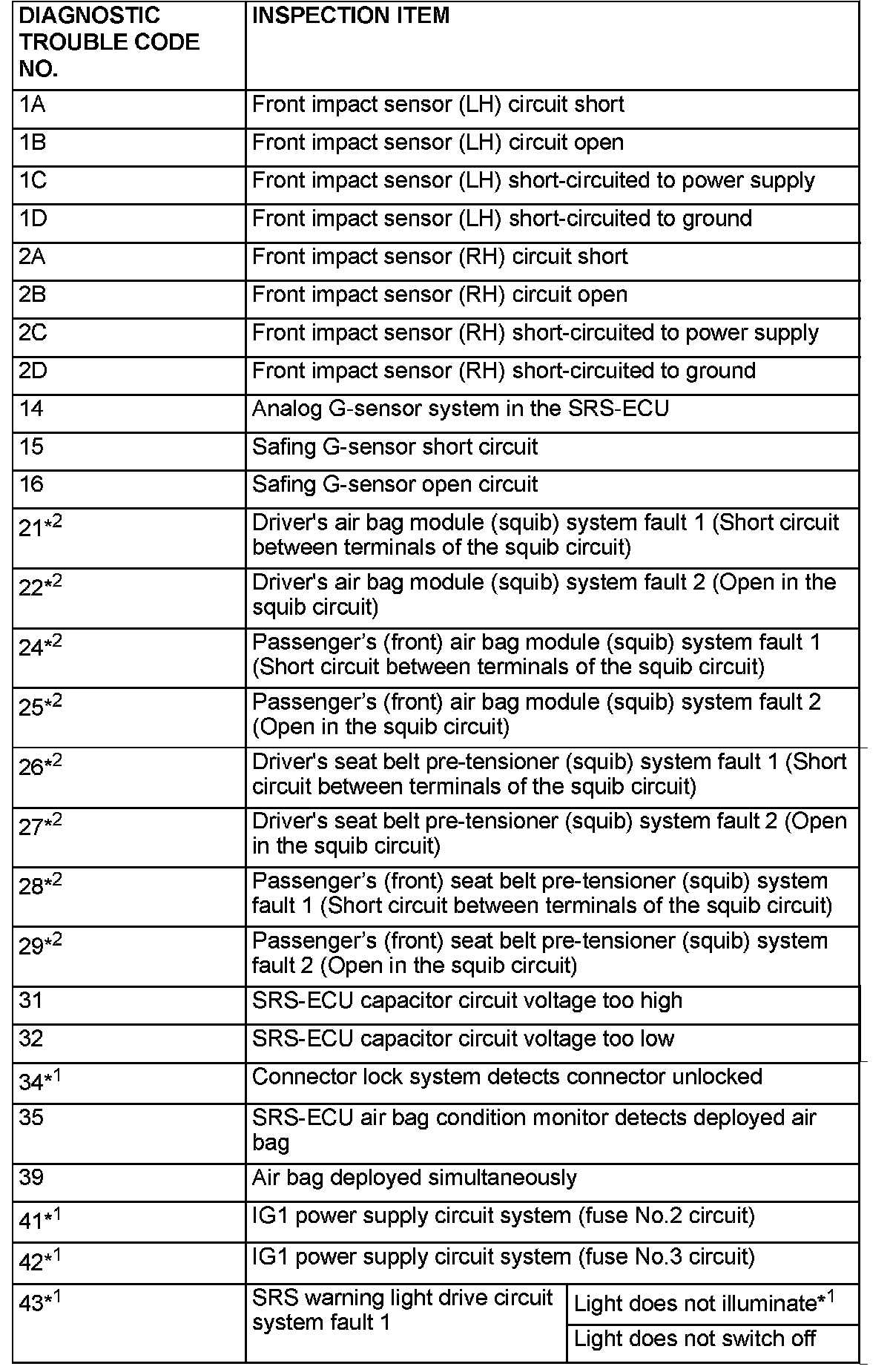

DTC 1A - 43:

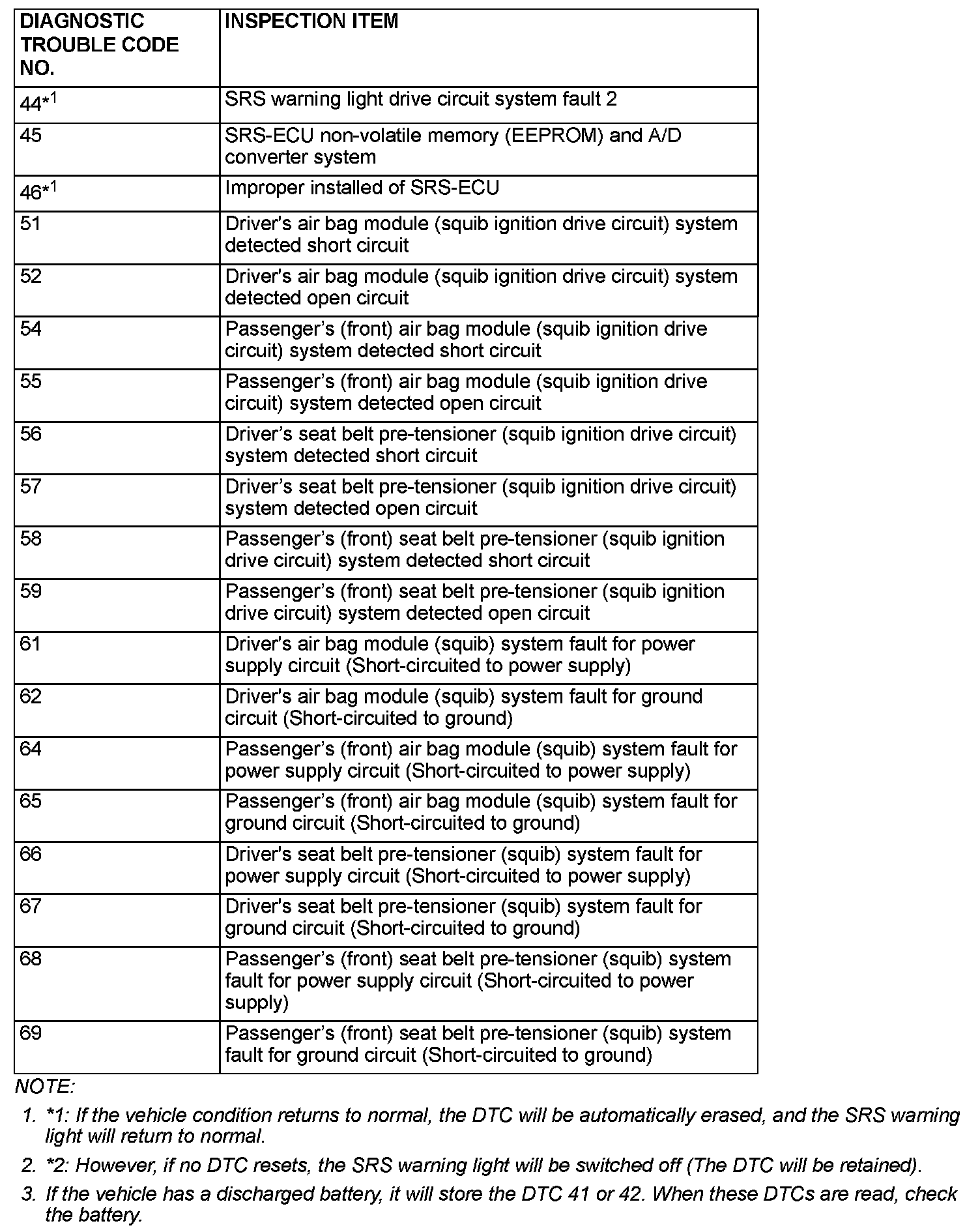

DTC 44 - 69:
Inspect according to the inspection chart that is appropriate for the DTC.
