Home >> Mitsubishi >> 2005 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Supplemental Restraint System (SRS)

Supplemental Restraint System (SRS)

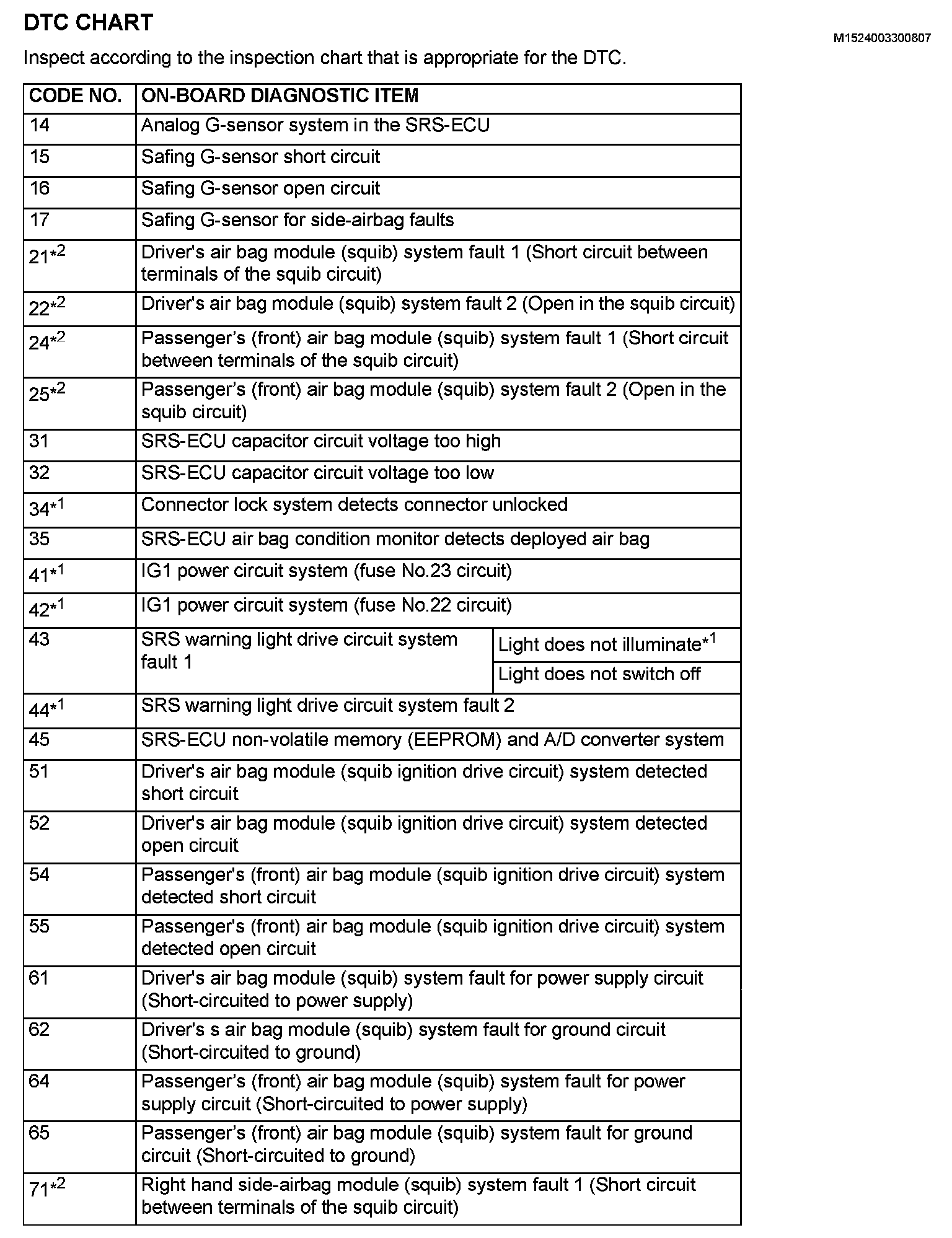

DTC Chart Part 1:

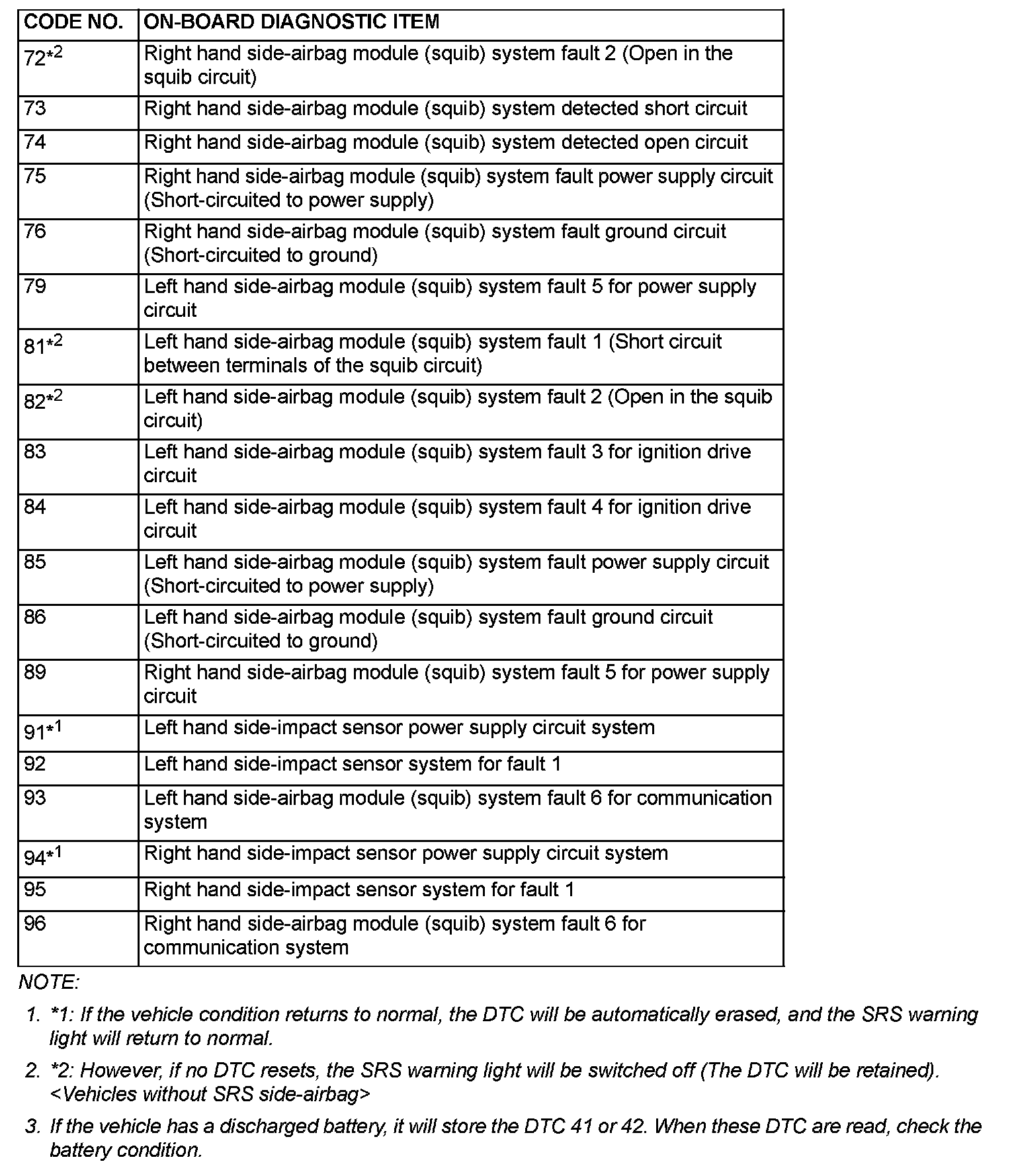

DTC Chart Part 2:
