Home >> Mitsubishi >> 2004 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine-Overhaul Specifications >> Torque Specifications

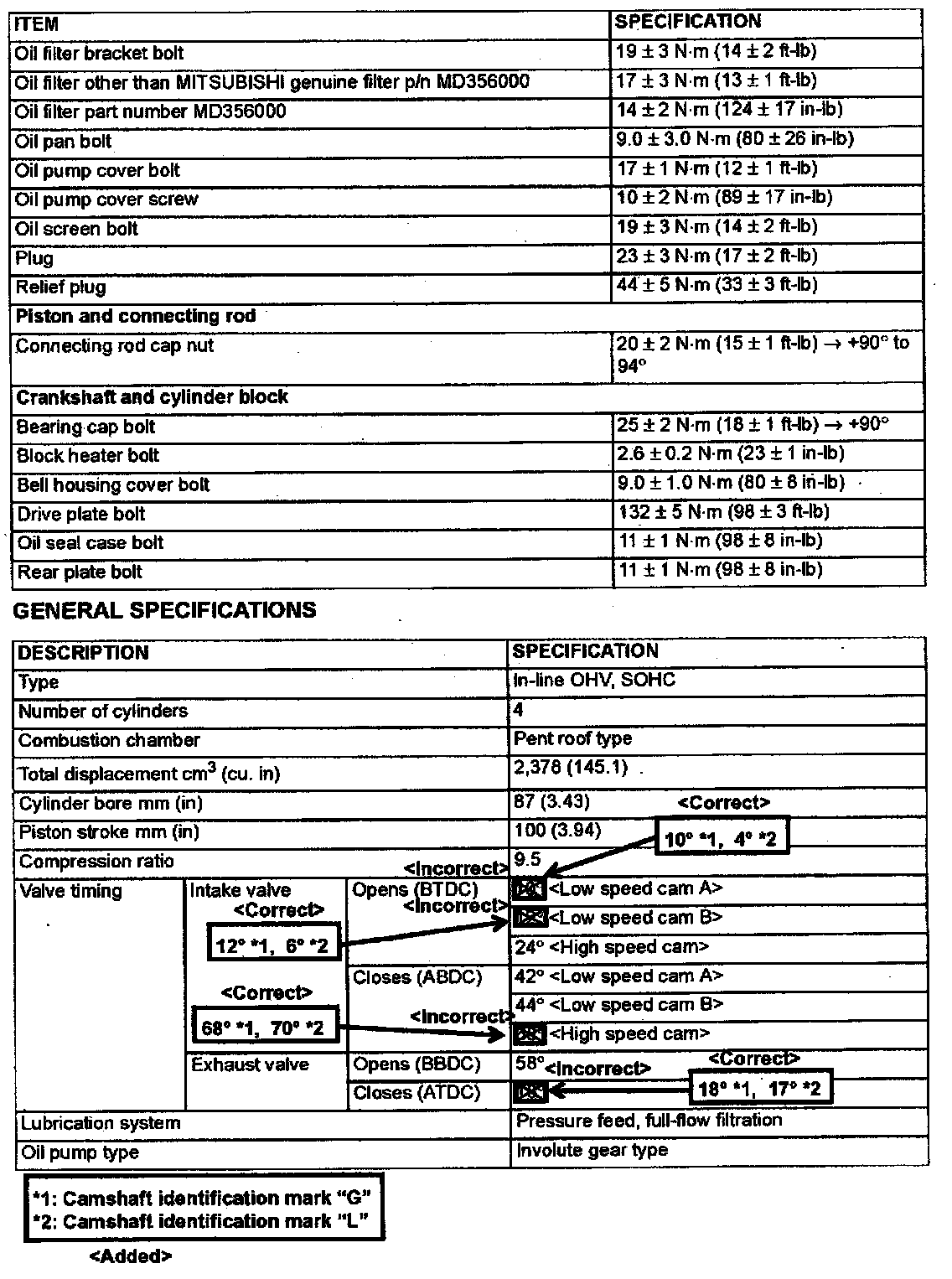

Torque Specifications

Thye contents of this article reflect the changes called out by TSB 04-11-004






Part 1 Of 3:





Part 2 Of 3:
