Engine Mechanical
>>
Fastener Tightening Specifications
Fastener Tightening Specifications
Note: The content of this article/image reflects the changes called out by TSB - 04-11-002

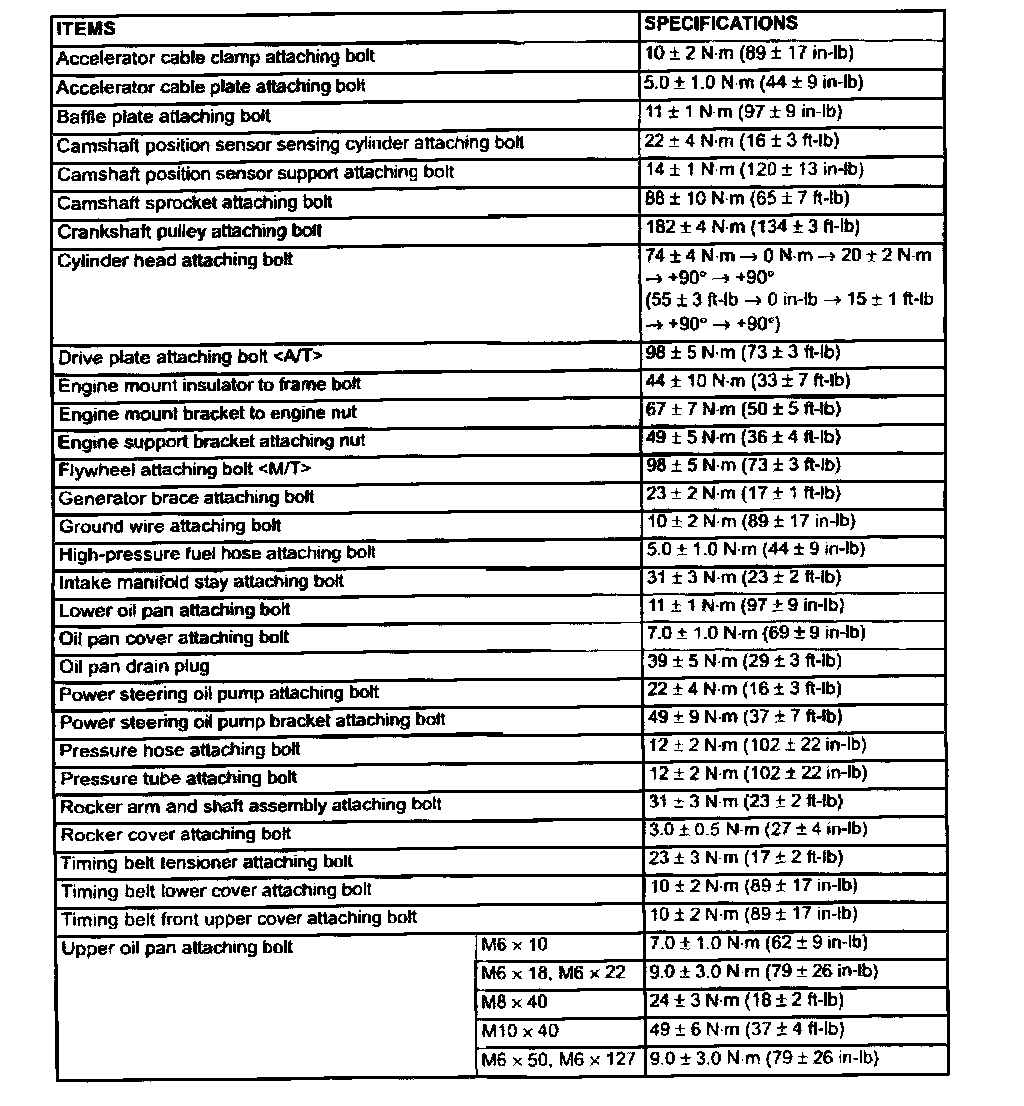

FASTENER TIGHTENING SPECIFICATIONS
