Data List Reference Table



Part 1:




Part 2:

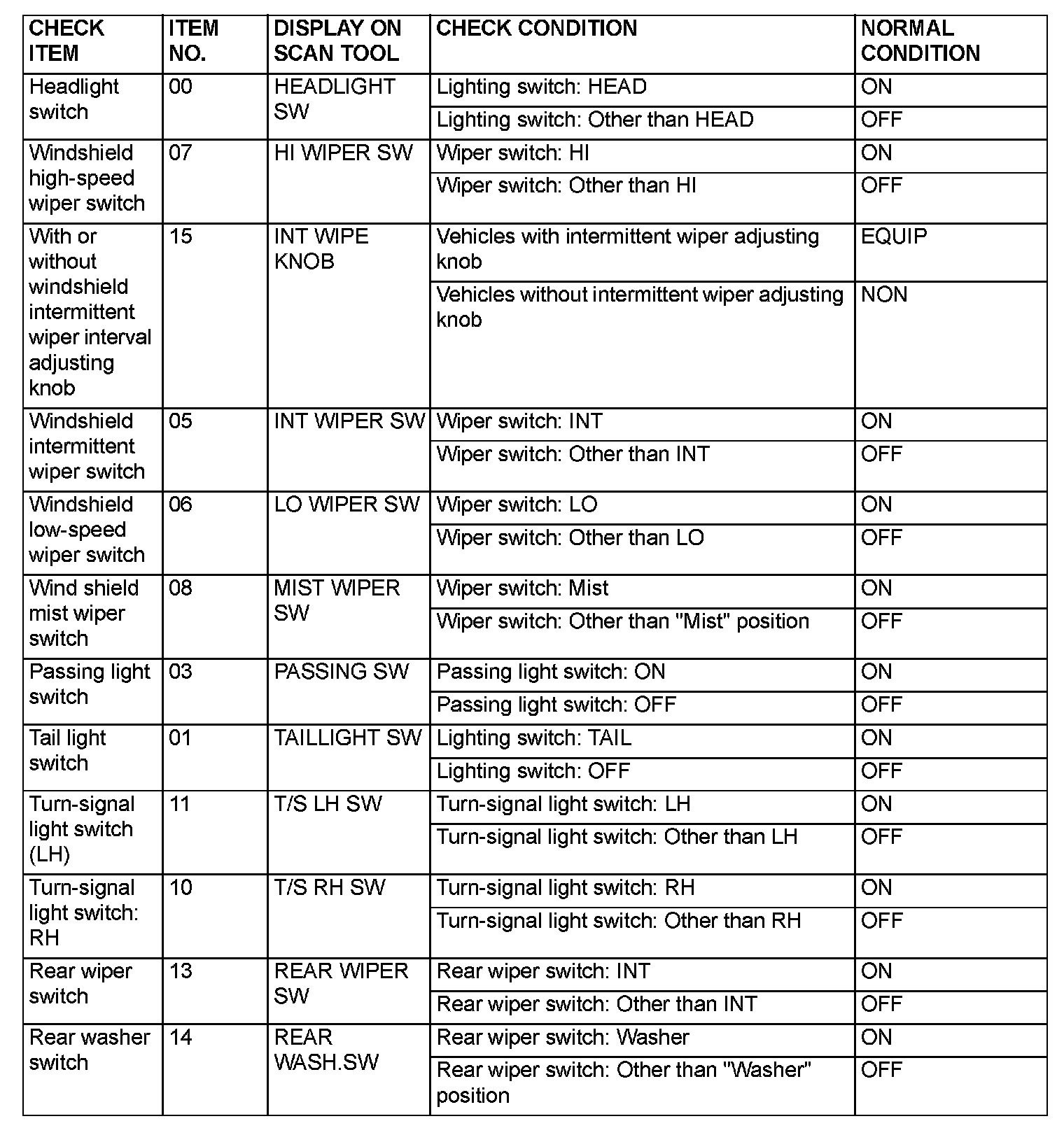

- COLUMN ECU (column switch)

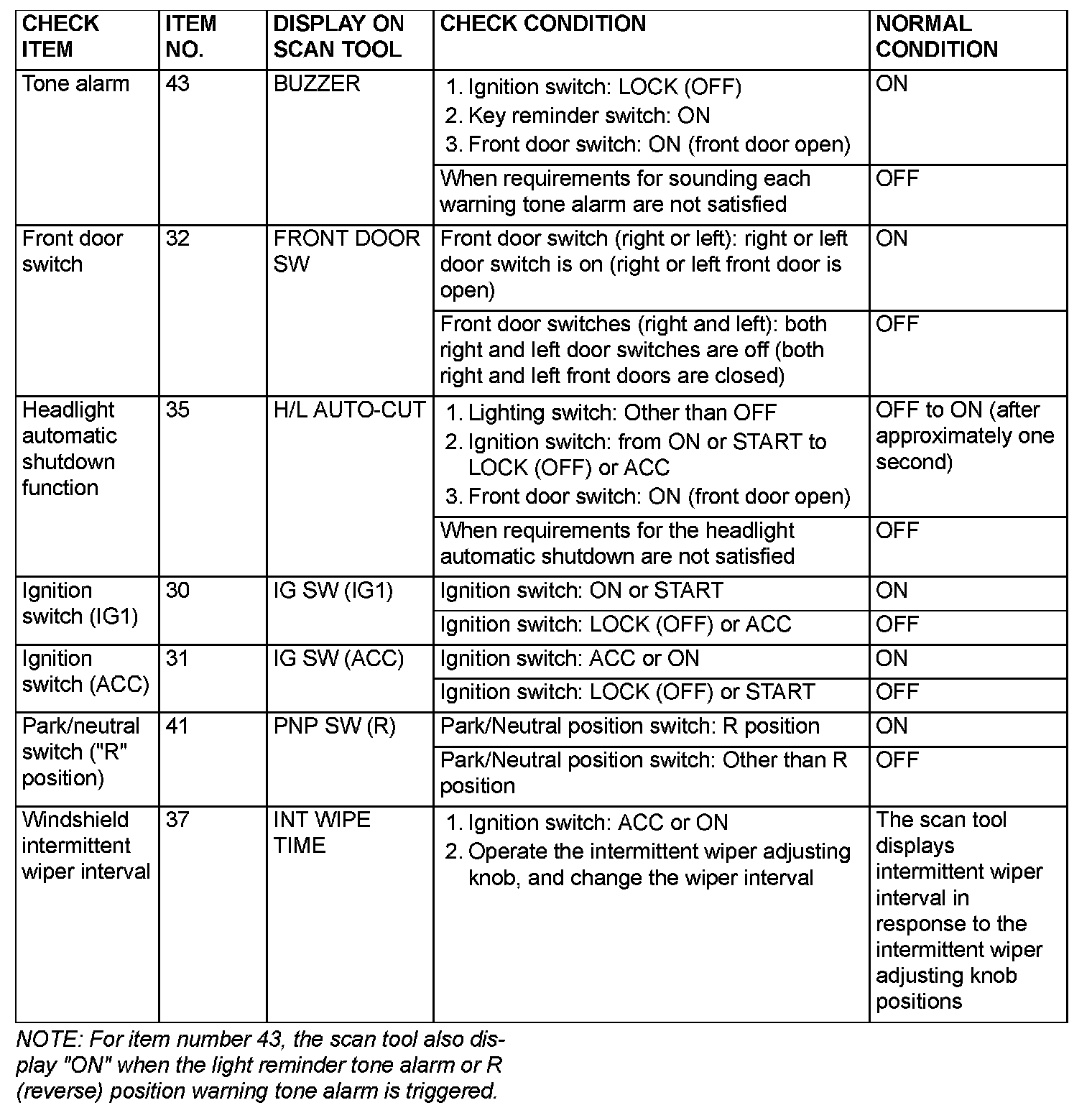

- ETACS ECU

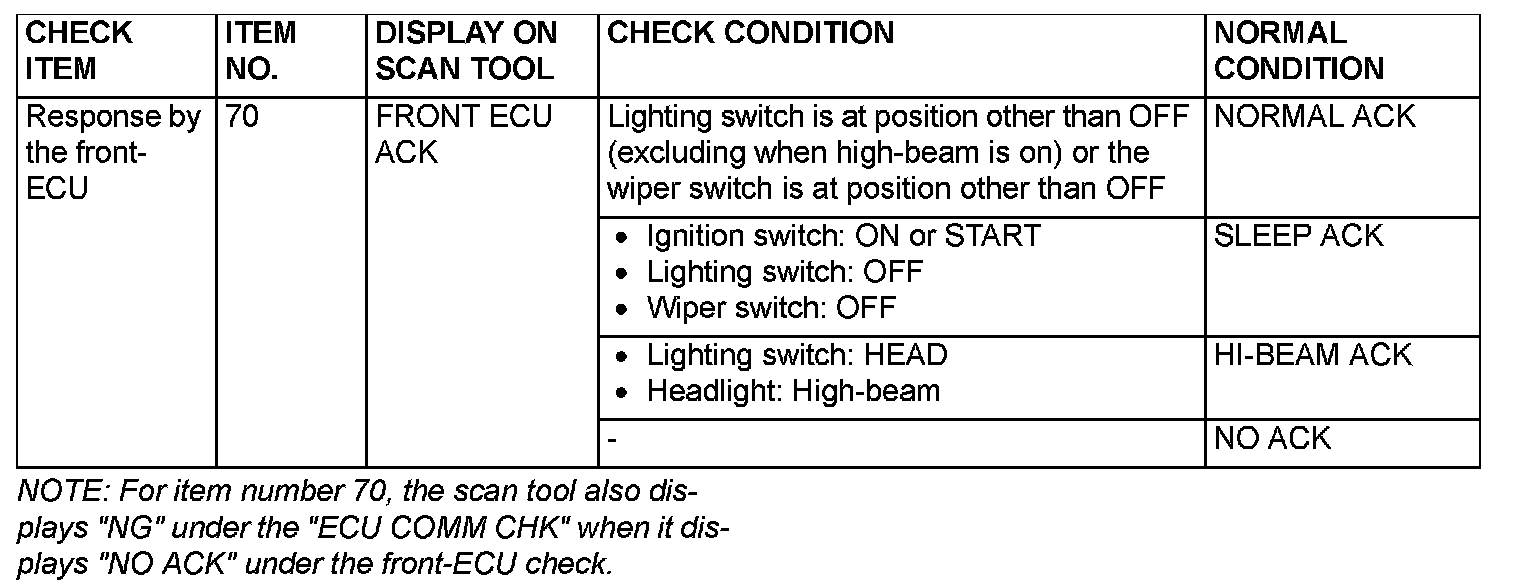

- FRONT ECU
