Mitsubishi
>>
2003
>>
Lancer L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Control Arm
>>
Rear
Rear

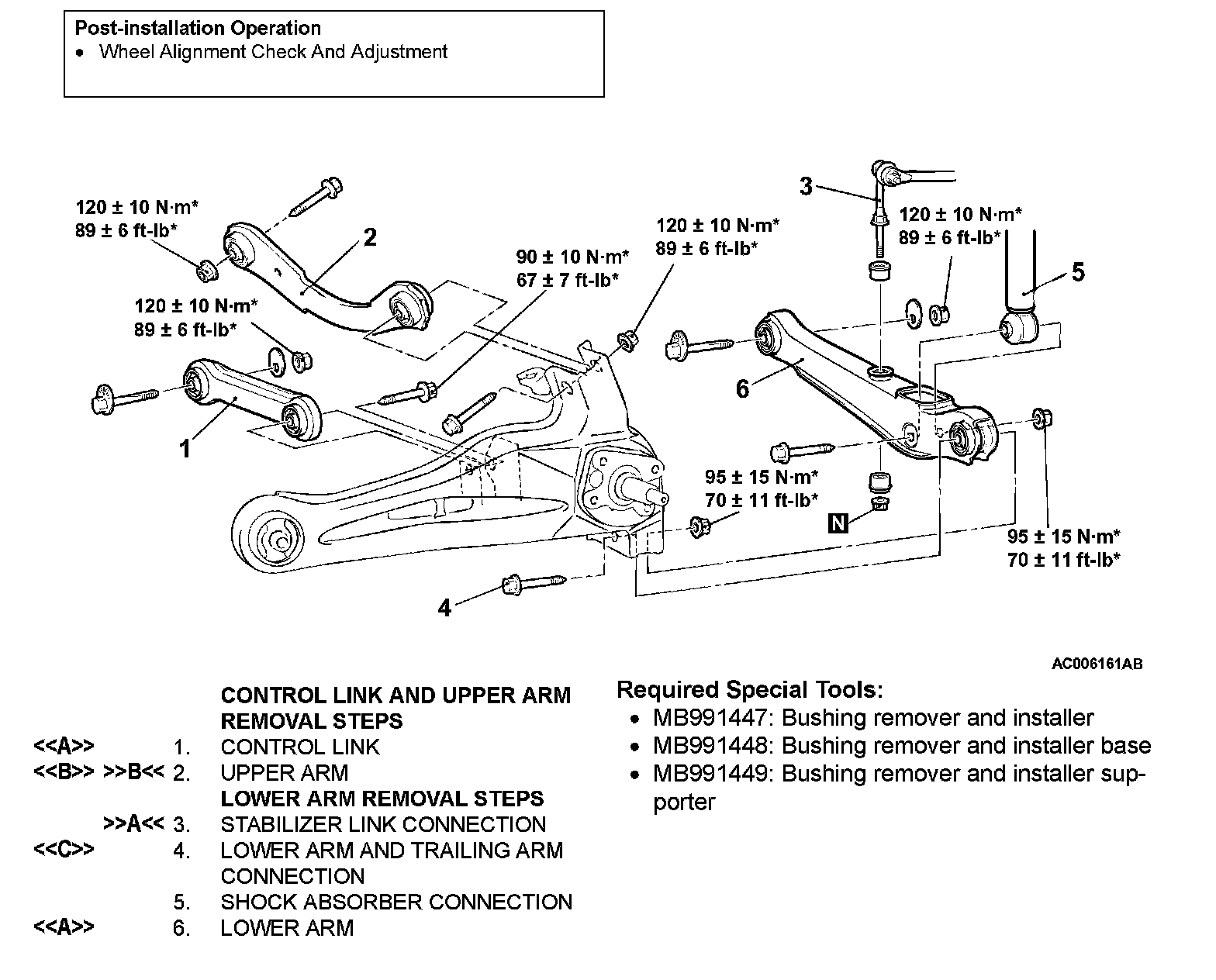

CONTROL LINK, UPPER ARM AND LOWER ARM REPLACEMENT W/ RELATED COMPONENTS
