Galant L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Coolant Line/Hose
Coolant Line/Hose

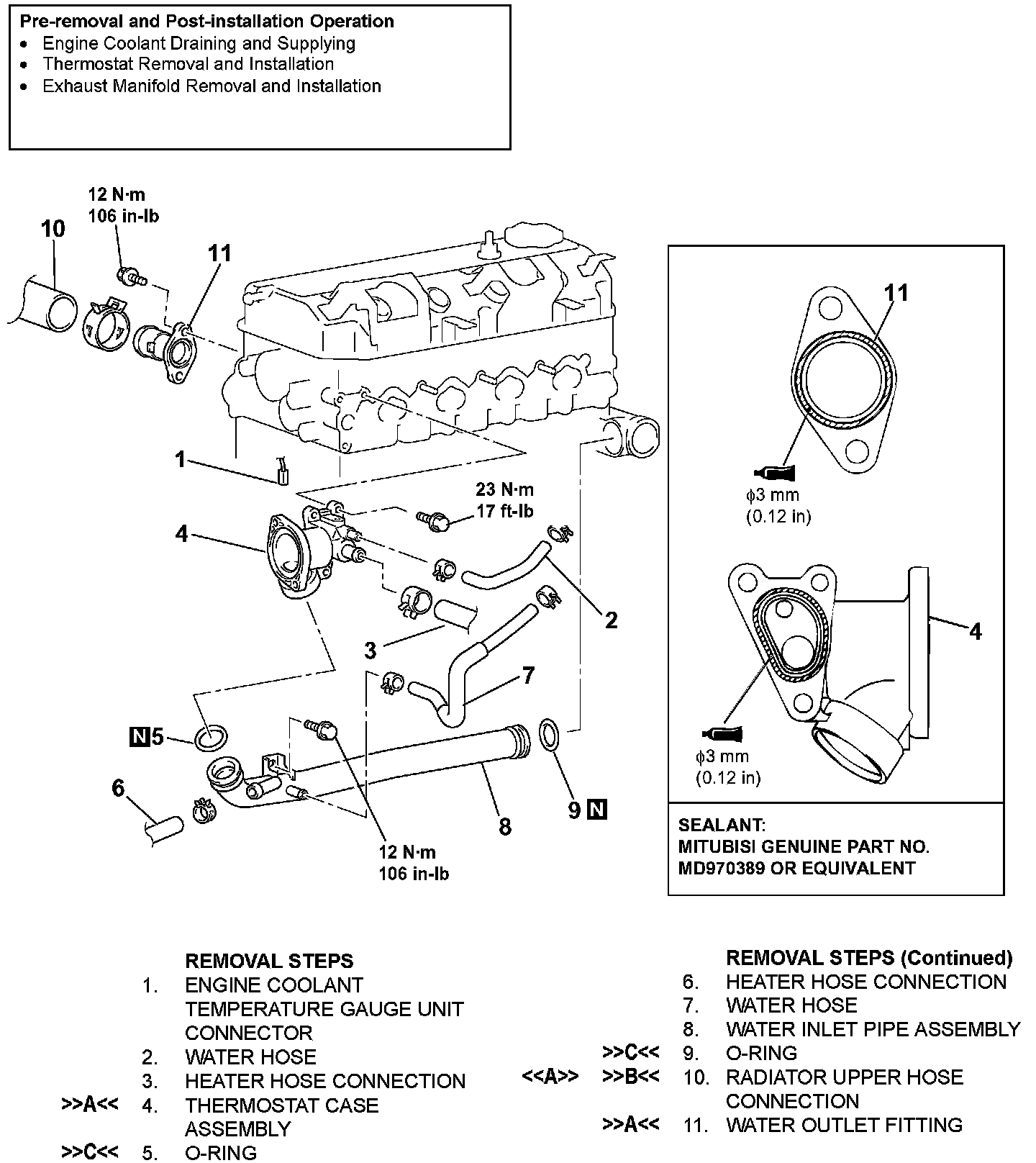

WATER HOSE AND WATER PIPE REPLACEMENT W/ RELATED COMPONENTS
