Exploded Views

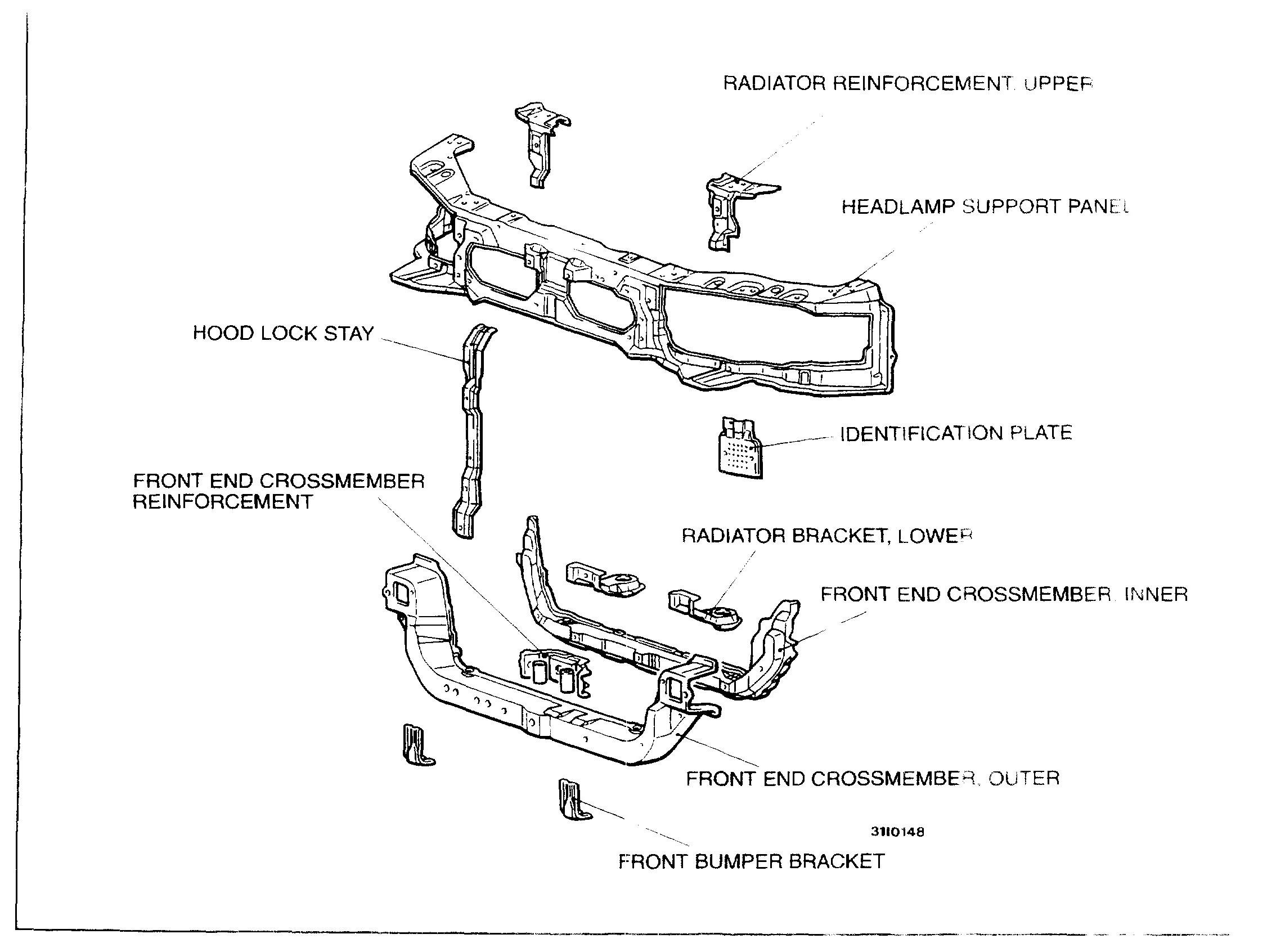

FRONT BODY

HEADLAMP SUPPORT




The headlamp support has been integrated into a single unit in order to improve installation precision to the body and to reduce weight.
