Power Steering Pressure Switch: Locations

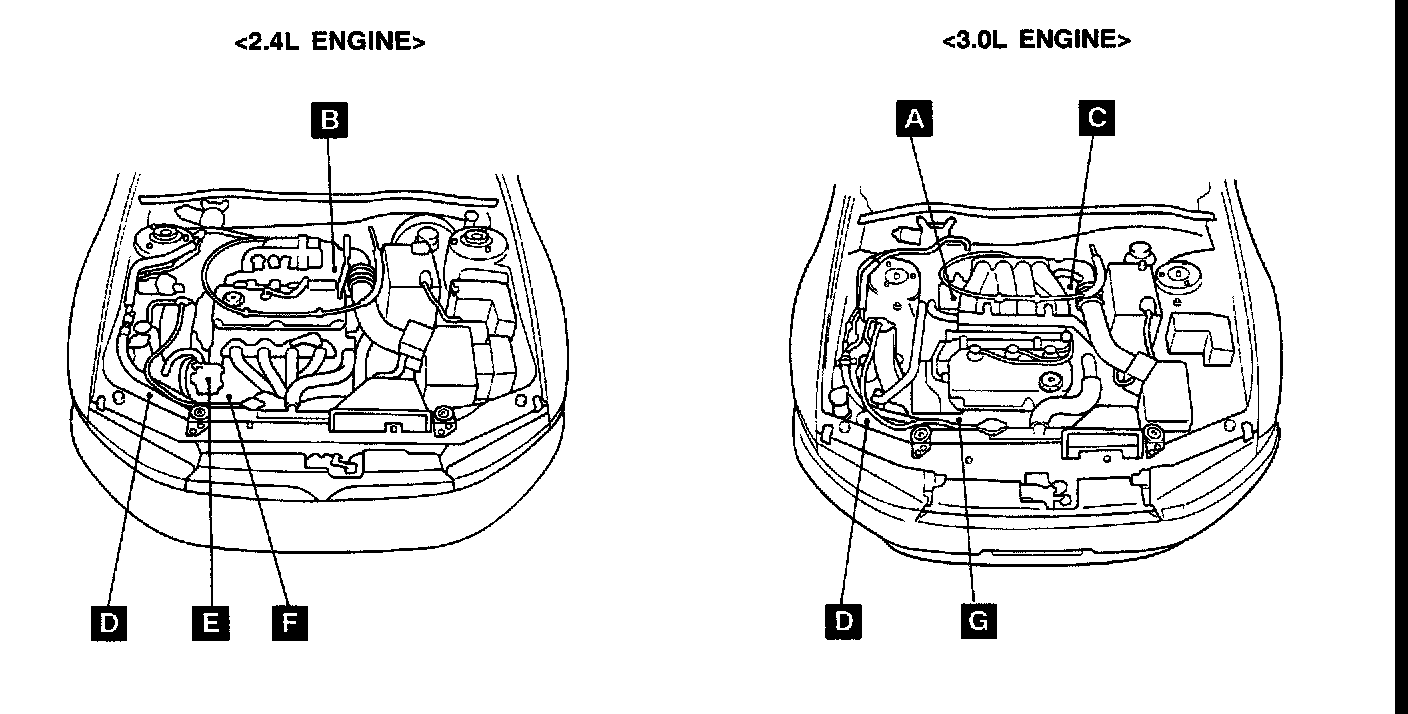

Other Devices Location Overall View:

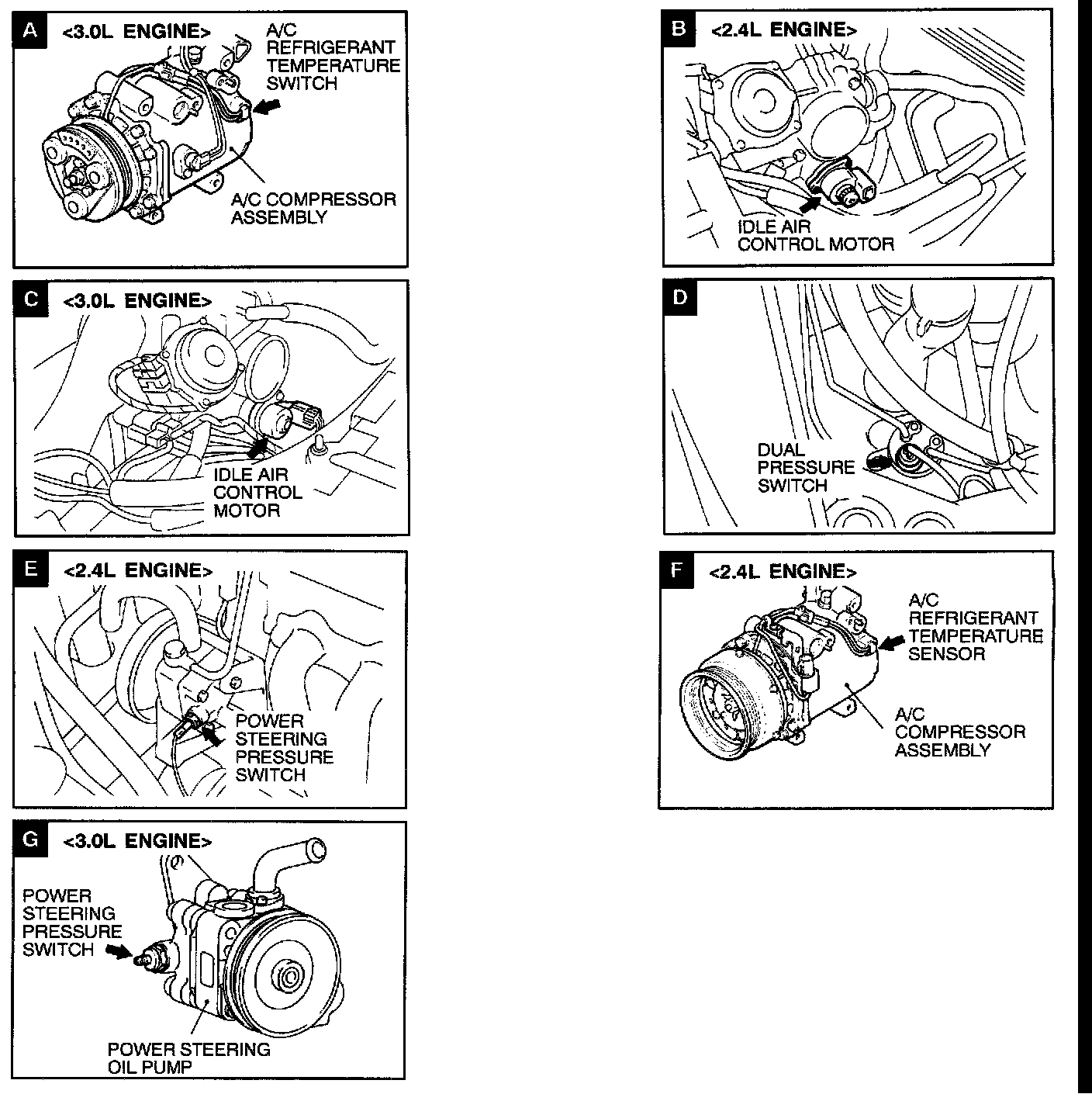

Other Devices Location Views E - G:





NAME SYMBOL
Power Steering Pressure Switch G
