Supplemental Restraint System (SRS)

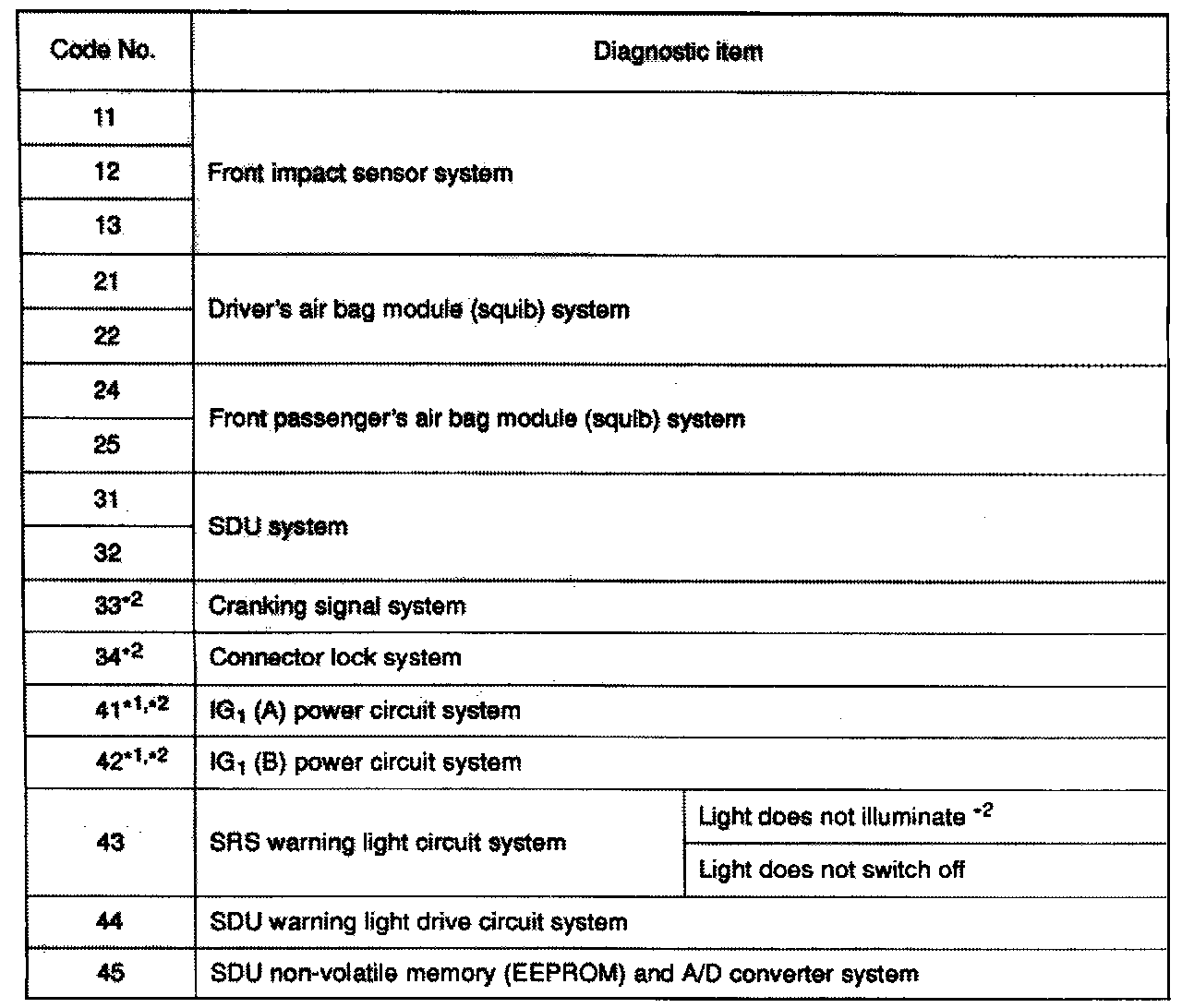

Inspection Chart For Diagnostic Trouble Codes

Inspect according to the inspection chart that is appropriate for the diagnostic trouble code.

NOTE:
1. *l:For diagnostic trouble codes marked with *, if the vehicle condition returns to normal for a continuous period of 5 +or- 0.2 seconds, the diagnostic trouble code will be automatically erased, and the SRS warning light will return to normal.
2. *2:If the vehicle has a discharged battery it will store the fault codes 41 or 42. When these diagnostic trouble codes are displayed, check the battery.
