Eclipse L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
General Specifications
General Specifications

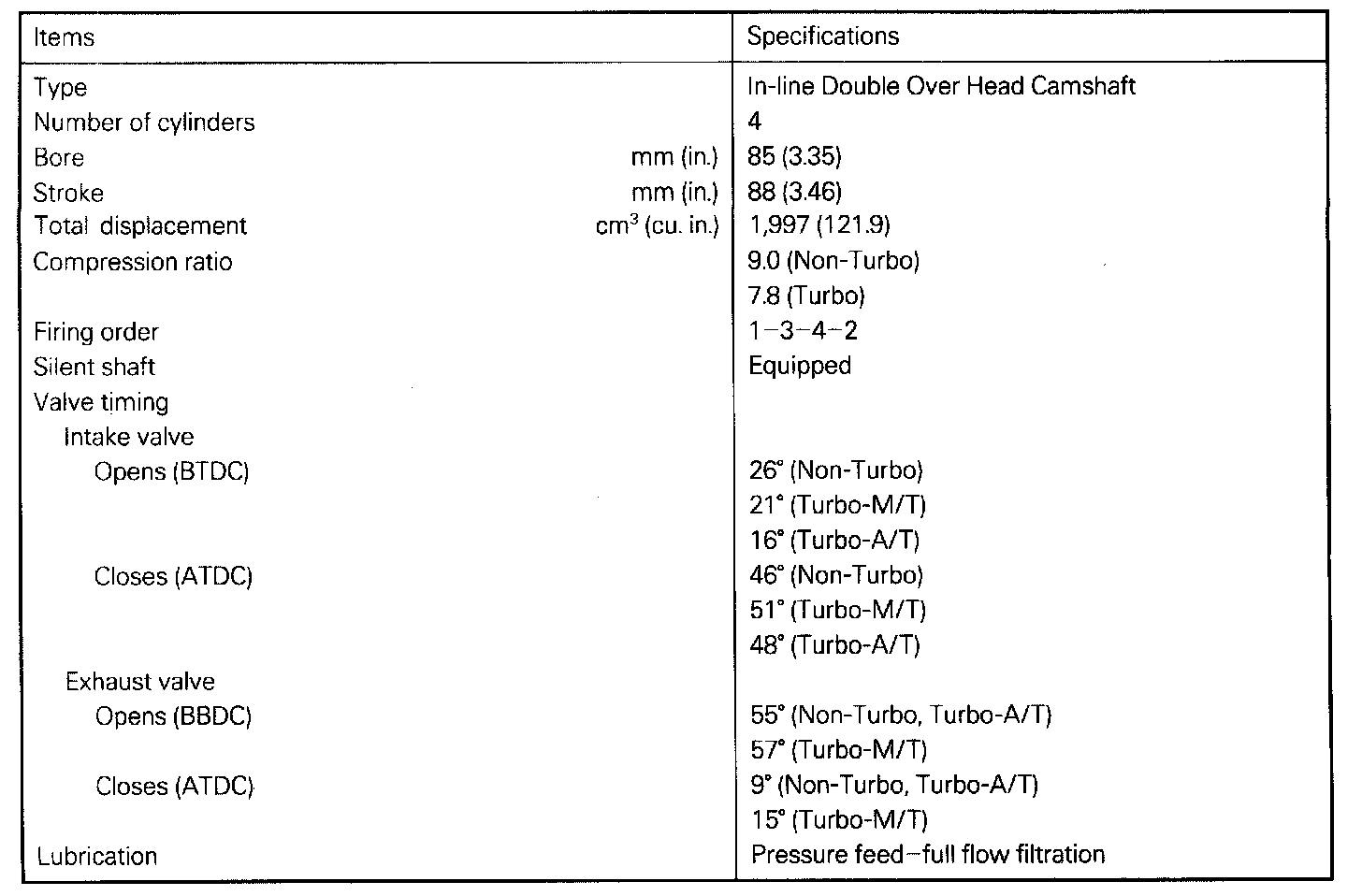

GENERAL SPECIFICATIONS

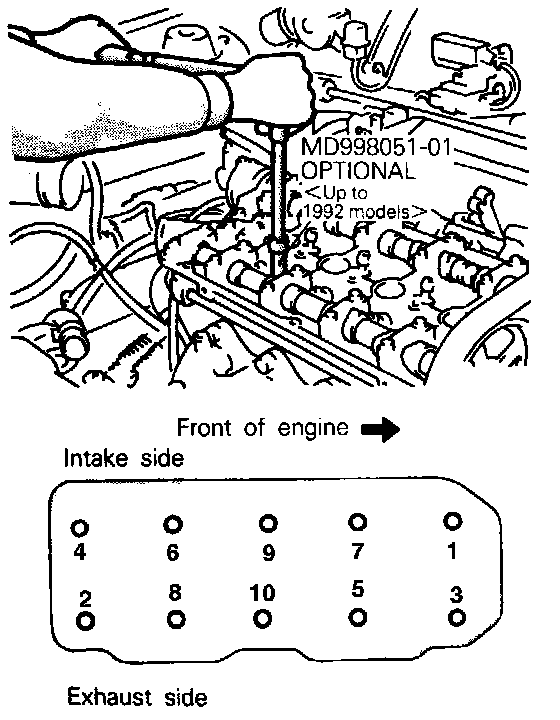

REMOVAL OF CYLINDER HEAD BOLT
INSTALLATION OF CYLINDER HEAD BOLT
