Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
System Specifications

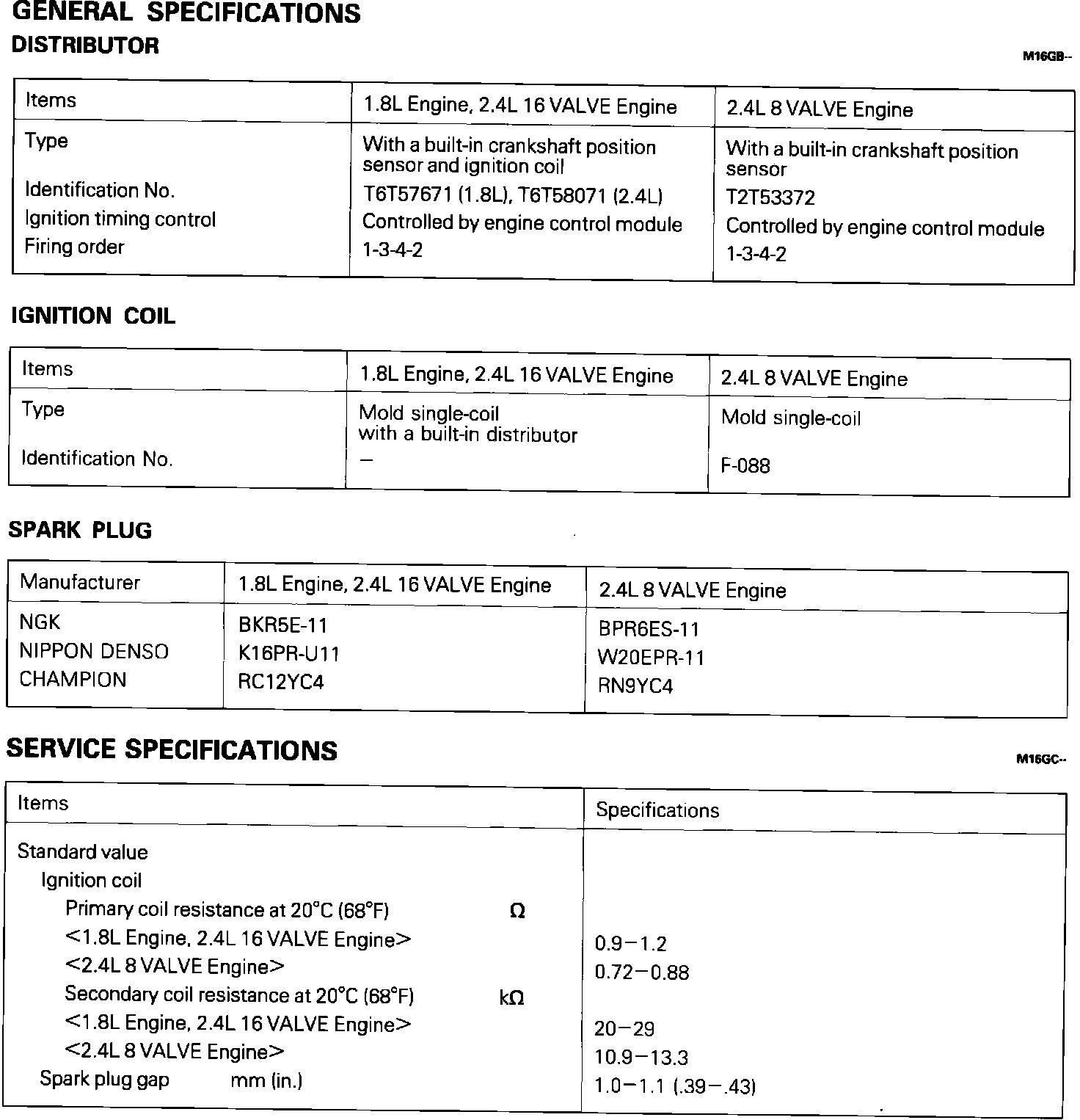

Ignition System: Specifications:
