Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
General Specifications
General Specifications

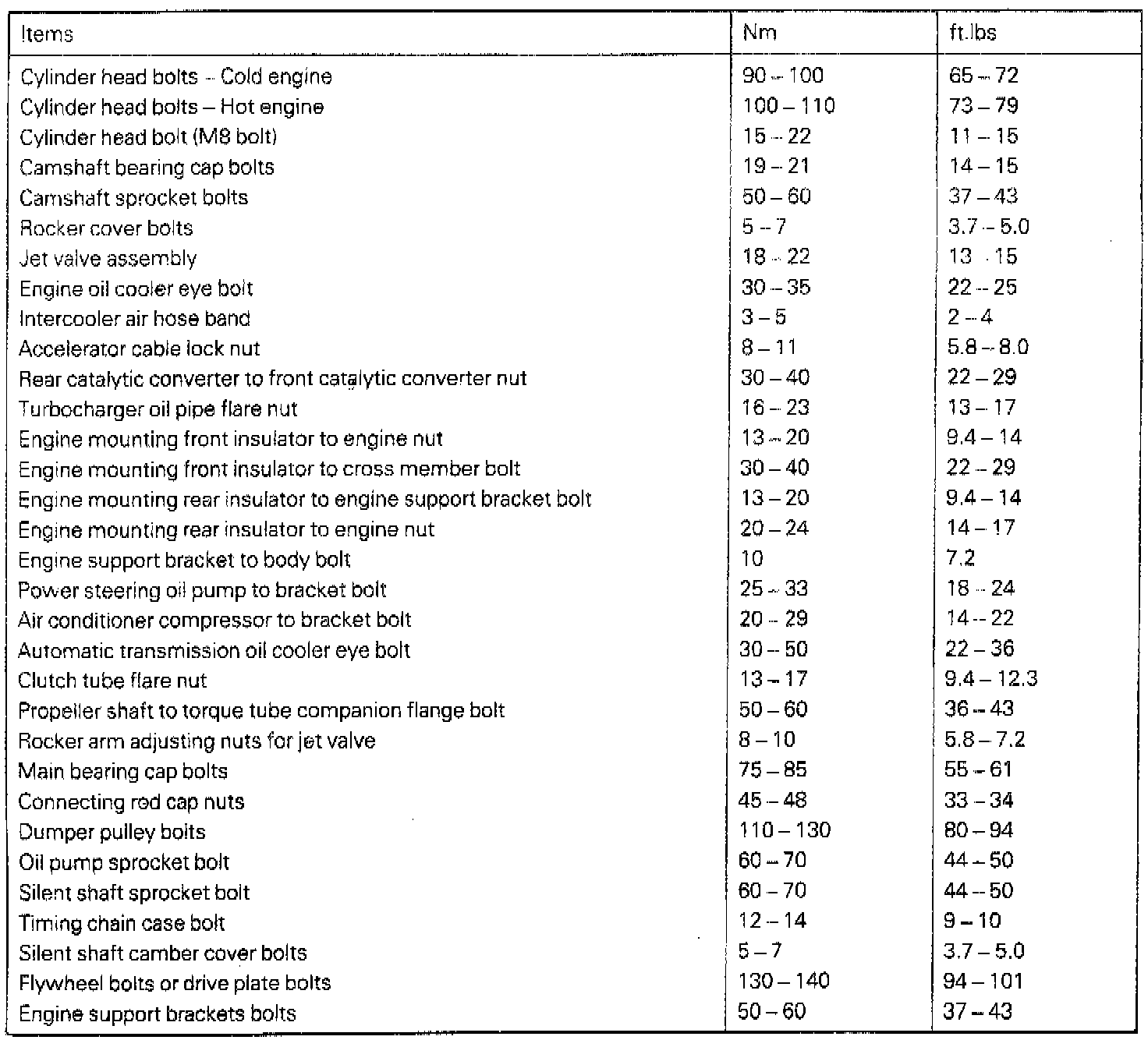

TORQUE SPECIFICATIONS
INSTALLATION OF
CYLINDER HEAD ASSEMBLY
