Home >> Mitsubishi >> 1987 >> Tredia L4-2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly

Differential Assembly

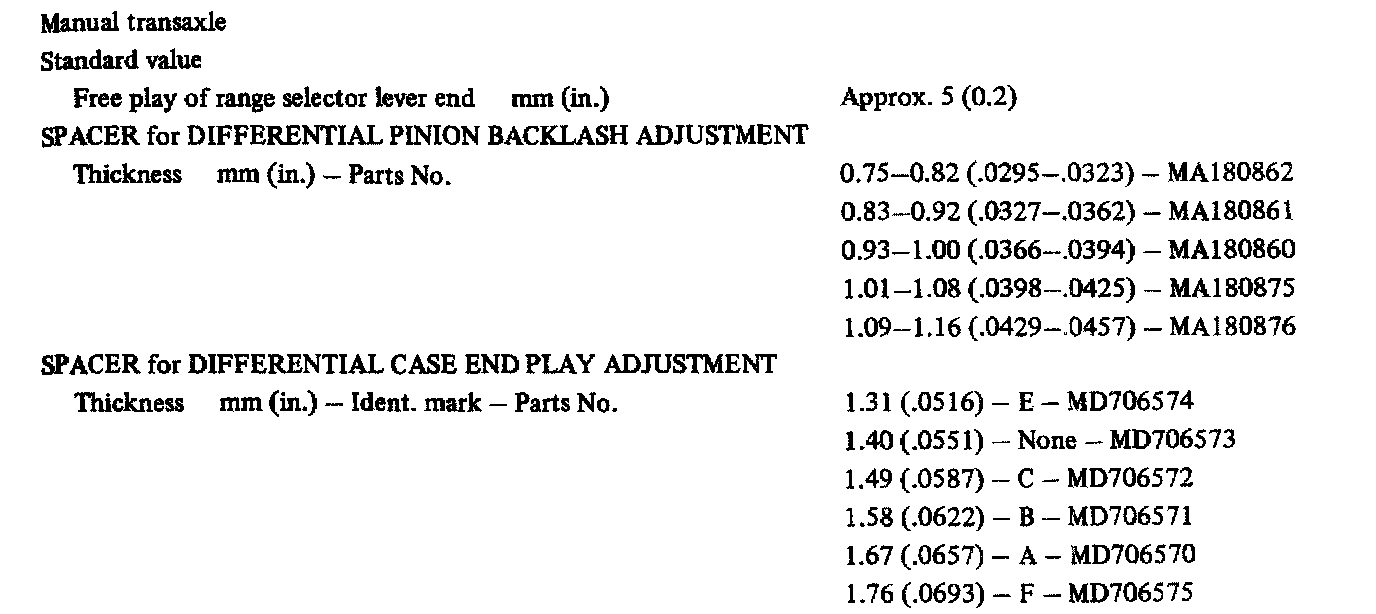

KM163 5-spd M/T / KM166 4-spd M/T, Differential Backlash/End Play:
